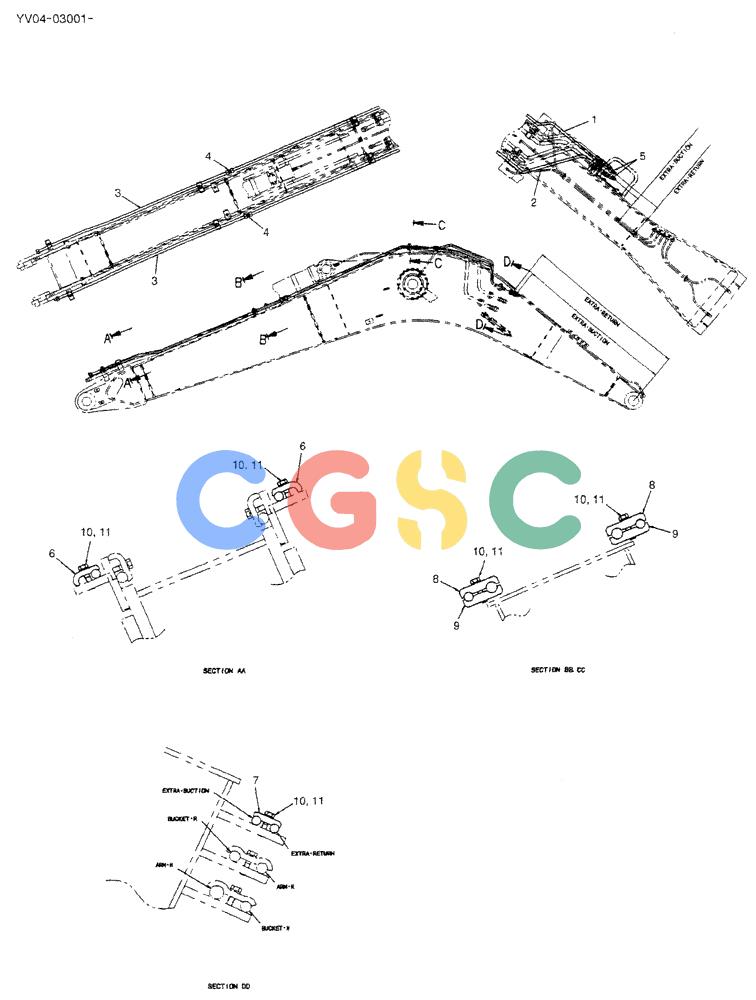

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-011) - HYD LINES, BOOM 4.26M (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
948 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV42H00032F1 | [1] | HYD LINES, BOOM 4.26M | |
| 1. | YV42H01089P1 | [1] | TUBE | KOB |
| 2. | YV42H01090P1 | [1] | TUBE | KOB |
| 3. | YV42H01072P1 | [2] | TUBE | KOB |
| 4. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 5. | 2444Z3556 | [2] | HYD CONNECTOR | KOB |
| 6. | ZC26X18011 | [2] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 7. | ZC36X18011 | [1] | CLAMP | KOB |
| 8. | 2432T5526 | [4] | CIRCLIP | KOB |
| 9. | 2432T5528 | [4] | BRACKET | KOB |
| 10. | ZS18C10045 | [7] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 11. | ZW26X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
