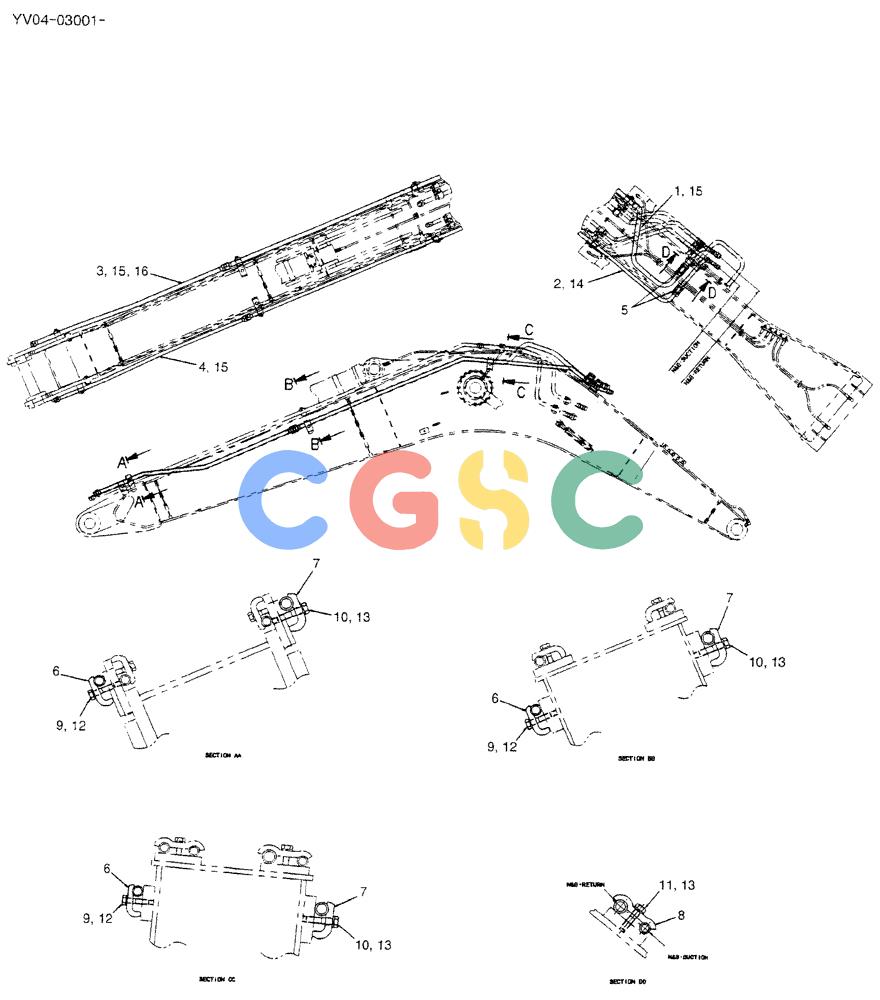

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-010) - HYD LINES, BOOM 4.26M (YV42H00024F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
907 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV42H00024F1 | [1] | HYD LINES, BOOM 4.26M | |
| 1. | YV42H01081P1 | [1] | RIGID TUBE | KOB |
| 2. | YV42H01082P1 | [1] | TUBE | KOB |
| 3. | YV42H01083P1 | [1] | TUBE | KOB |
| 4. | YV42H01084P1 | [1] | TUBE | KOB |
| 5. | ZE72X16000 | [2] | PLUG | KOB(Incls. O-Ring ZD12P02900) |
| 6. | ZC26X22011 | [3] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 7. | ZC26X28014 | [3] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 8. | 2432T2242 | [1] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 9. | ZS18C10045 | [3] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 10. | ZS18C12055 | [3] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 11. | ZS18C12050 | [1] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 12. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 14. | ZD12A01600 | [1] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 15. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 16. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
