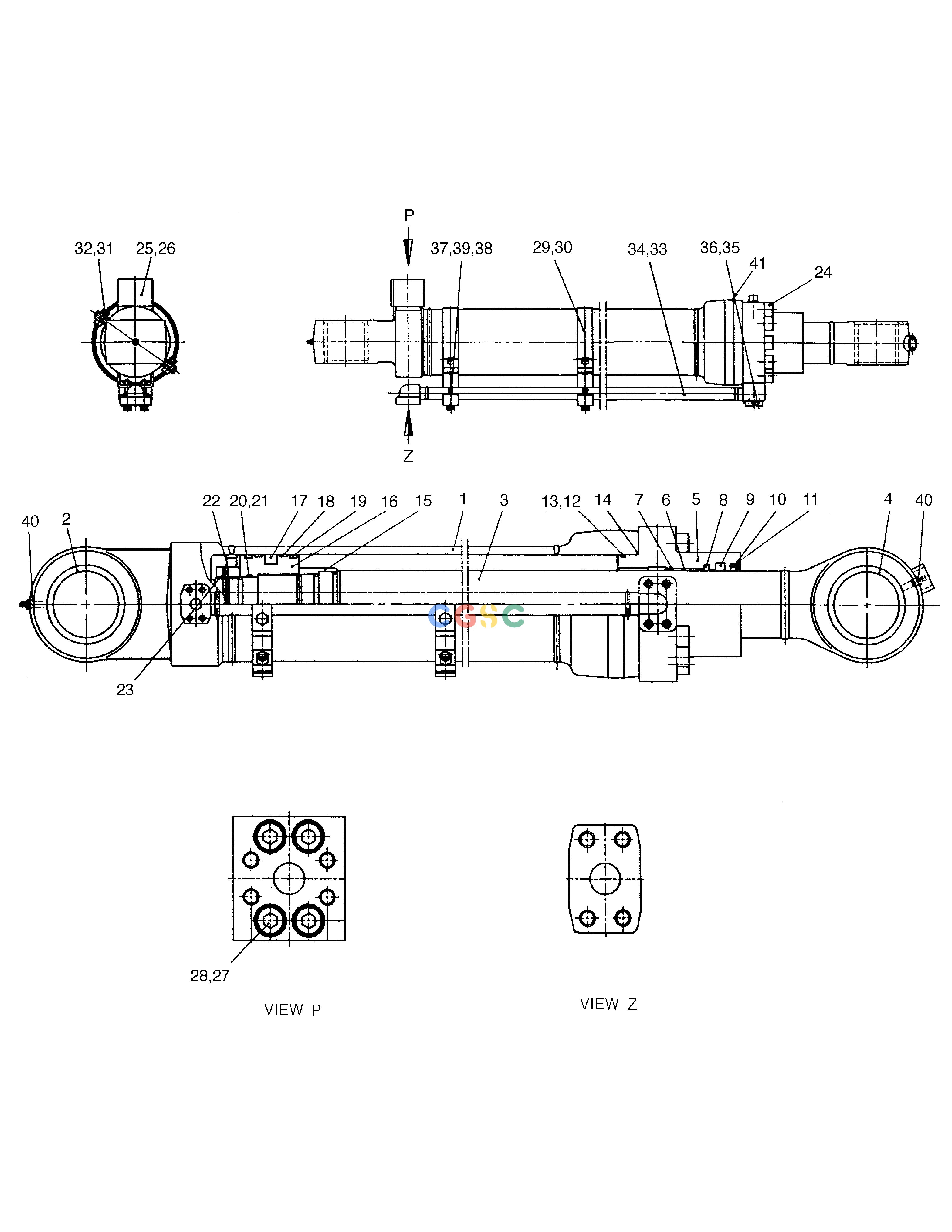

斗山零件查询BUCKET CYLINDER-2.4M ARM SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9339KT
|
[1] |
SEAL KIT;BUCKET
|
|
| -. |
2440-9339B
|
[1] |
CYLINDER;BUCKET
|
|
| 1. |
1.441-00150
|
[1] |
TUBE ASS'Y
|
|
| 10. |
115-00084
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00063
|
[1] |
RING;RETAINING
|
|
| 12. |
S8011151
|
[1] |
O-RING
|
|
| 13. |
180-00250
|
[1] |
RING;BACK UP
|
|
| 14. |
S8011201
|
[1] |
O-RING
|
|
| 15. |
415-00020
|
[1] |
RING;CUSHION
|
|
| 16. |
1.409-00112
|
[1] |
PISTON
|
|
| 17. |
180-00254
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
115-00055
|
[2] |
RING;WEAR
|
|
| 19. |
115-00053
|
[2] |
RING;SLYD
|
|
| 2. |
110-00084
|
[1] |
BUSH;STEEL
|
|
| 20. |
180-00276
|
[1] |
O-RING
|
|
| 21. |
180-00277
|
[2] |
RING;BACK UP
|
|
| 22. |
121-00046
|
[1] |
NUT;PISTION
|
|
| 23. |
S3523836
|
[1] |
SCREW;SET
|
|
| 24. |
S2222171
|
[10] |
BOLT
|
|
| 25. |
1.229-00024
|
[1] |
FLANGE;PORT
|
|
| 26. |
S8000281
|
[1] |
O-RING
|
|
| 27. |
S5100603
|
[4] |
WASHER
|
|
| 28. |
S2212661
|
[4] |
BOLT;SOCKET M10X1.5X50
|
|
| 29. |
1.124-00035
|
[2] |
PIPE BAND ASS'Y
|
|
| 3. |
1.428-00127
|
[1] |
ROD ASS'Y
|
|
| 30. |
1.124-00036
|
[2] |
BAND;PIPE
|
|
| 31. |
S5100603
|
[4] |
WASHER
|
|
| 32. |
S0558261
|
[4] |
BOLT;HEX
|
|
| 33. |
1.140-00064
|
[1] |
PIPE ASS'Y
|
|
| 34. |
S8000281
|
[1] |
O-RING
|
|
| 35. |
S5100603
|
[4] |
WASHER
|
|
| 36. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 37. |
124-00059
|
[2] |
CLAMP;PIPE
|
|
| 38. |
S5100603
|
[4] |
WASHER
|
|
| 39. |
S0558653
|
[4] |
BOLT M10X1.5X55
|
|
| 4. |
110-00084
|
[1] |
BUSH;STEEL
|
|
| 40. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 41. |
2181-1116D2
|
[1] |
PLUG
|
|
| 5. |
1.430-00157
|
[1] |
ROD COVER
|
|
| 6. |
110-00097
|
[1] |
DD-BUSH
|
|
| 7. |
K9001401
|
[1] |
RING;RETAINING
|
|
| 8. |
180-00273
|
[1] |
SEAL;BUFFER
|
|
| 9. |
115-00083
|
[1] |
U-PACKING
|
|
