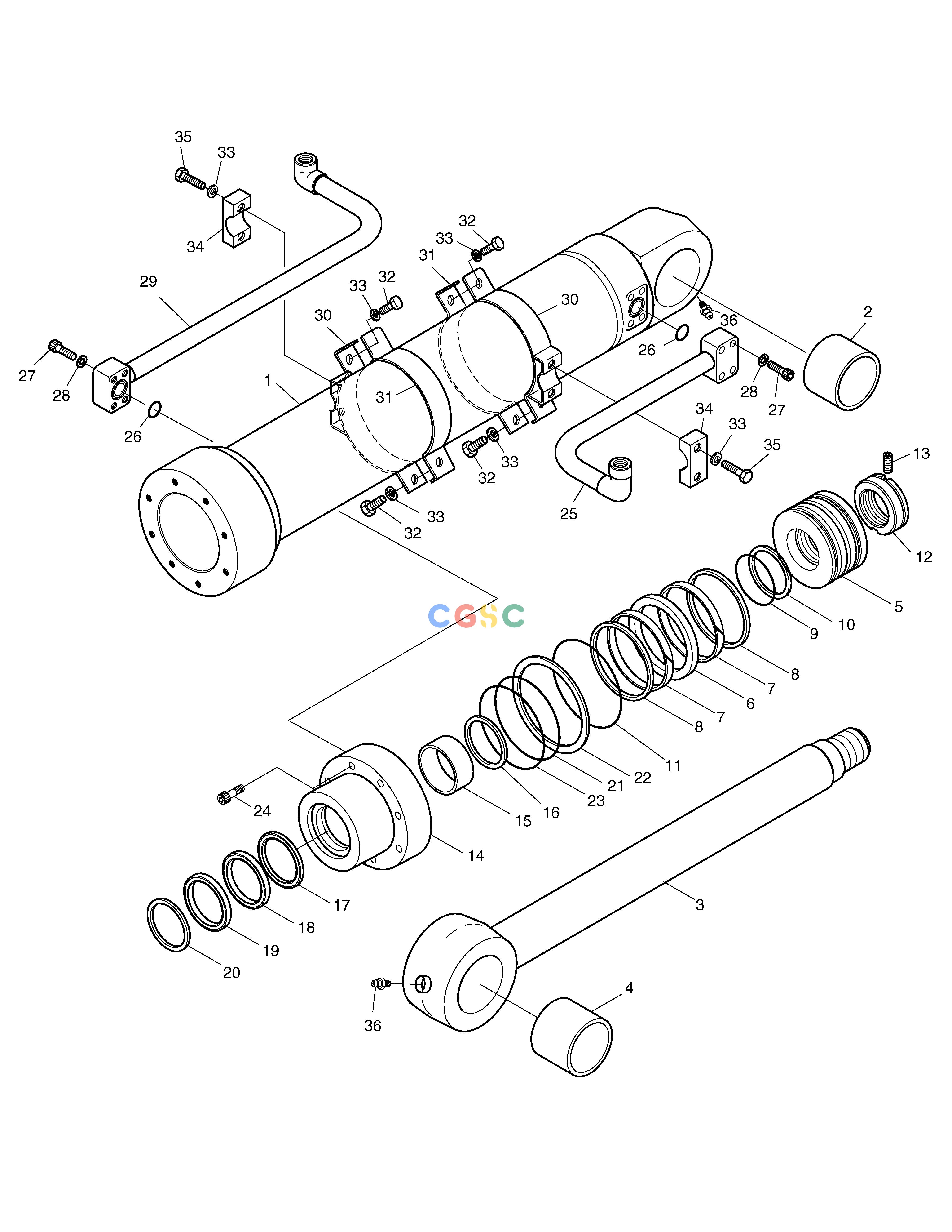

斗山零件查询BUCKET CYLINDER-6.2M ARM SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
363 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9233KT
|
[1] |
SEAL KIT;BUCKET CYL.
|
|
| -. |
2440-9233B
|
[1] |
CYLINDER;BUCKET
|
|
| 1. |
1.441-00091
|
[1] |
TUBE ASS'Y
|
|
| 10. |
1.180-00266
|
[2] |
RING;BACK UP
|
|
| 11. |
1.115-00193
|
[1] |
RING;CUSHION
|
|
| 12. |
1.121-00065
|
[1] |
NUT;PISTON
|
|
| 13. |
S3523836
|
[1] |
SCREW;SET
|
|
| 14. |
1.430-00224
|
[1] |
ROD COVER
|
|
| 15. |
1.110-00068
|
[1] |
DD-BUSH
|
|
| 16. |
1.115-00032
|
[1] |
RING;RETAINING
|
|
| 17. |
1.180-00472
|
[1] |
SEAL;BUFFER
|
|
| 18. |
1.180-00208
|
[1] |
U-PACKING
|
|
| 19. |
1.180-00496
|
[1] |
WIPER;DUST
|
|
| 2. |
1.110-00063
|
[1] |
BUSH;STEEL
|
|
| 20. |
115-00052
|
[1] |
RING;RETAINING
|
|
| 21. |
S8010901
|
[1] |
O-RING
|
|
| 22. |
1.180-00267
|
[1] |
RING;BACK UP
|
|
| 23. |
S8010951
|
[1] |
O-RING
|
|
| 24. |
S2218961
|
[8] |
BOLT
|
|
| 25. |
1.140-00078
|
[1] |
PIPE ASS'Y-H
|
|
| 26. |
S8000201
|
[2] |
O-RING
|
|
| 27. |
S2209561
|
[8] |
BOLT;SOCKET M8X1.25X45
|
|
| 28. |
S5100503
|
[12] |
WASHER
|
|
| 29. |
1.140-00203
|
[1] |
PIPE ASS'Y-R
|
|
| 3. |
1.428-00078
|
[1] |
ROD ASS'Y
|
|
| 30. |
1.124-00009
|
[2] |
PIPE BAND ASS'Y
|
|
| 31. |
1.124-00010
|
[2] |
BAND;PIPE
|
|
| 32. |
S0558261
|
[4] |
BOLT;HEX
|
|
| 33. |
S5100603
|
[8] |
WASHER
|
|
| 34. |
1.124-00148
|
[2] |
CLAMP;PIPE
|
|
| 35. |
S0558553
|
[4] |
BOLT;HEX.
|
|
| 36. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 4. |
1.110-00063
|
[1] |
BUSH;STEEL
|
|
| 5. |
1.409-00077
|
[1] |
PISTON
|
|
| 6. |
1.180-00567
|
[1] |
SEAL;SLIPPER
|
|
| 7. |
1.180-00415
|
[2] |
RING;WEAR
|
|
| 8. |
1.180-00366
|
[2] |
RING;SLYD
|
|
| 9. |
1.180-00117
|
[1] |
O-RING
|
|
