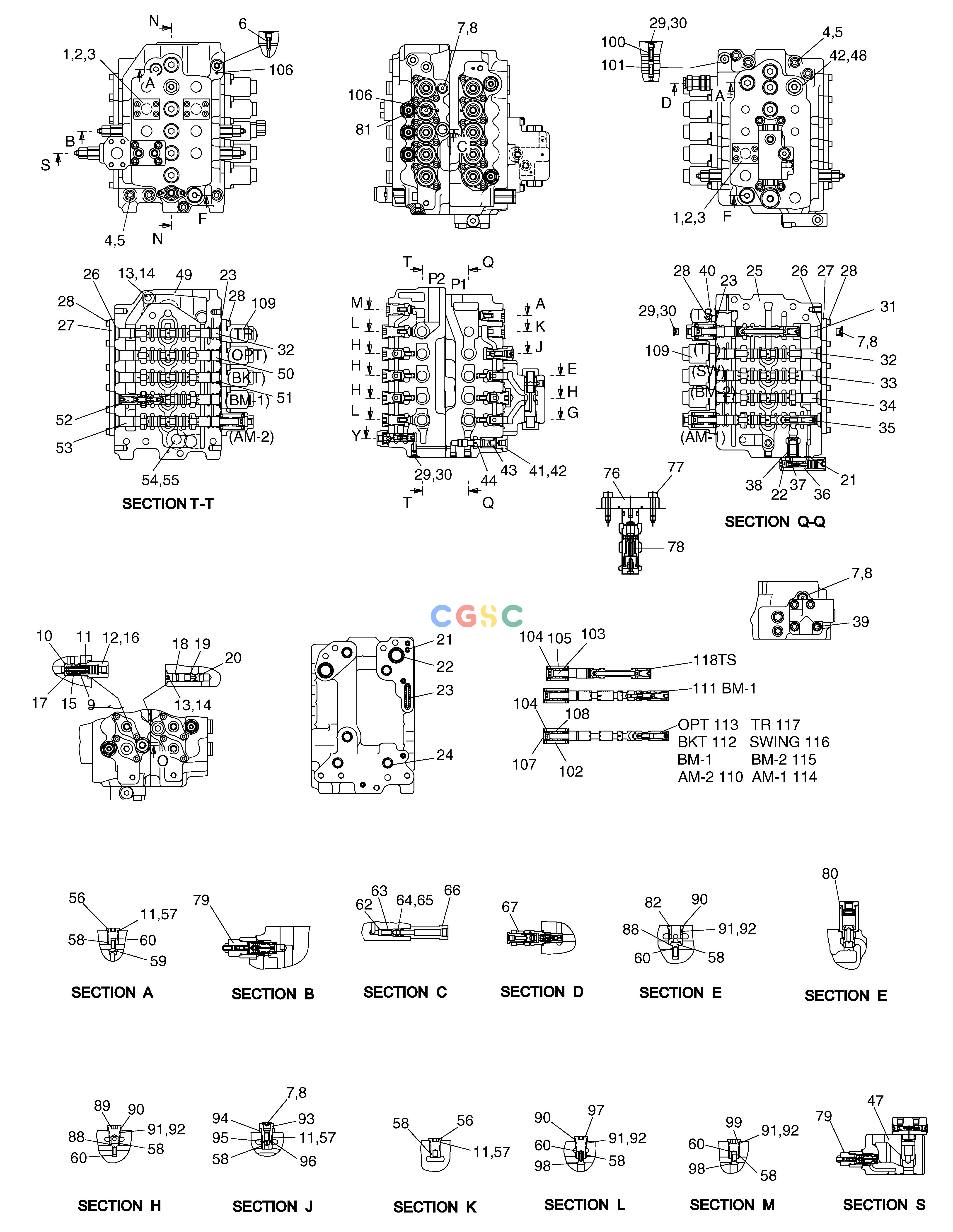

斗山零件查询CONTROL VALVE SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
119 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2426-1198KT
|
[1] |
SEAL KIT
|
|
| -. |
426-00064B
|
[1] |
VALVE;CONTROL
|
|
| 1. |
2181-2434
|
[3] |
FLANGE
|
|
| 10. |
2425-1034
|
[1] |
SLEEVE
|
|
| 100. |
2129-1389
|
[1] |
SPRING
|
|
| 101. |
2424-1100
|
[1] |
SPOOL;TS
|
|
| 102. |
2129-1468
|
[9] |
SPRING
|
|
| 103. |
2430-1060
|
[1] |
CAP;PLUNGER
|
|
| 104. |
2429-1043A
|
[20] |
GUIDE;SP
|
|
| 105. |
2129-1385
|
[1] |
SPRING;G1
|
|
| 106. |
2181-2432
|
[8] |
PLUG
|
|
| 107. |
2430-1104
|
[9] |
CAP;PLUNGER
|
|
| 108. |
2114-1913
|
[9] |
SPACER
|
|
| 109. |
2430-1105
|
[9] |
COVER
|
|
| 11. |
S8000211
|
[2] |
O-RING
|
|
| 110. |
2424-1343B
|
[1] |
PLUNGER ASS'Y;A56
|
|
| 111. |
2424-1341E
|
[1] |
PLUNGER ASS'Y;B61
|
|
| 112. |
2424-1344
|
[1] |
PLUNGER ASS'Y;C51 BKT
|
|
| 113. |
2424-1275
|
[1] |
PLUNGER;D ASS'Y
|
|
| 114. |
2424-1342A
|
[1] |
PLUNGER ASS'Y;A61
|
|
| 115. |
2424-1268B
|
[1] |
PLUNGER ASS'Y;D52E BM2
|
|
| 116. |
2424-1345A
|
[1] |
PLUNGER ASS'Y;T51 SW
|
|
| 117. |
2424-1273
|
[1] |
PLUNGER;M3 ASS'Y
|
|
| 118. |
2424-1274
|
[1] |
PLUNGER;G1 ASS'Y
|
|
| 12. |
2430-1103
|
[1] |
CAP
|
|
| 13. |
2430-1050
|
[2] |
CAP
|
|
| 14. |
S8000181
|
[2] |
O-RING
|
|
| 15. |
2424-1265
|
[1] |
SPOOL;REGEN
|
|
| 16. |
2420-1229
|
[1] |
REGEN ASS'Y
|
|
| 17. |
2129-1467
|
[1] |
SPRING;REGEN
|
|
| 18. |
2416-1020
|
[1] |
STOPPER
|
|
| 19. |
2129-1377
|
[1] |
SPRING
|
|
| 2. |
2180-1217D109
|
[3] |
O-RING
|
|
| 20. |
2420-1156
|
[1] |
CHECK
|
|
| 21. |
S8000101
|
[7] |
O-RING
|
|
| 22. |
S8000341
|
[3] |
O-RING
|
|
| 23. |
2180-1217D67
|
[11] |
O-RING
|
|
| 24. |
S8000221
|
[5] |
O-RING
|
|
| 25. |
423-00017
|
[1] |
HOUSING;VALVE
|
|
| 26. |
2180-1217D63
|
[10] |
O-RING
|
|
| 27. |
2229-1064
|
[10] |
RETAINER
|
|
| 28. |
S2212266
|
[40] |
BOLT
|
|
| 29. |
2430-1051
|
[3] |
CAP
|
|
| 3. |
S2212266
|
[12] |
BOLT
|
|
| 30. |
S8000111
|
[3] |
O-RING
|
|
| 31. |
2424-1145
|
[1] |
PLUNGER;G1
|
|
| 32. |
2424-1253
|
[2] |
PLUNGER;M3
|
|
| 33. |
420-00099
|
[1] |
UNLOADER VALVE
|
|
| 34. |
424-00013
|
[1] |
PLUNGER;D52E
|
|
| 35. |
2424-1336A
|
[1] |
PLUNGER;A61
|
|
| 36. |
2430-1064A
|
[1] |
AM HOLDING V/V ASS'Y
|
|
| 37. |
2129-1412
|
[1] |
SPRING
|
|
| 38. |
2426-1165
|
[1] |
POPPET
|
|
| 39. |
S2215261
|
[4] |
WASHER,HARD(M11)
|
|
| 4. |
2120-1487
|
[8] |
BOLT;SOCKET M14X100
|
|
| 40. |
2430-1068A
|
[1] |
COVER
|
|
| 41. |
2430-1038
|
[1] |
CAP
|
|
| 42. |
S8000291
|
[2] |
O-RING
|
|
| 43. |
2129-1388
|
[1] |
SPRING
|
|
| 44. |
2424-1332
|
[1] |
SPOOL;BC
|
|
| 47. |
2420-1209A
|
[1] |
BM HOLDING VALVE
|
|
| 48. |
2430-1057
|
[1] |
CAP
|
|
| 49. |
2423-1483B
|
[1] |
HOUSING;RIGHT
|
|
| 5. |
S5110801
|
[8] |
WASHER;SPRING
|
|
| 50. |
2424-1120
|
[1] |
PLUNGER;D
|
|
| 51. |
2424-1339
|
[1] |
PLUNGER;C51 ASS'Y
|
|
| 52. |
424-00011A
|
[1] |
PLUNGER;B59
|
|
| 53. |
424-00093
|
[1] |
PLUNGER;A52 AM2
|
|
| 54. |
2430-1067
|
[1] |
CAP
|
|
| 55. |
S8000231
|
[1] |
O-RING
|
|
| 56. |
2430-1040
|
[4] |
CAP
|
|
| 57. |
S8060211
|
[5] |
RING;BACK UP
|
|
| 58. |
2420-1138
|
[12] |
NYLON CHIP
|
|
| 59. |
2420-1136
|
[3] |
CHECK
|
|
| 6. |
2415-1012A
|
[1] |
ORIFICE
|
|
| 60. |
2129-1374
|
[12] |
SPRING
|
|
| 62. |
2129-1383
|
[1] |
SPRING
|
|
| 63. |
2420-1133
|
[1] |
CHECK
|
|
| 64. |
2180-1217D50
|
[1] |
O-RING
|
|
| 65. |
2180-1208
|
[1] |
RING;BACK UP
|
|
| 66. |
2430-1052
|
[1] |
CAP
|
|
| 67. |
2420-1225A
|
[1] |
MAIN RELIEF ASS'Y
|
|
| 7. |
2430-1058
|
[4] |
CAP
|
|
| 76. |
2229-1043
|
[1] |
RETAINER
|
|
| 77. |
S2204861
|
[2] |
BOLT
|
|
| 78. |
420-00105
|
[1] |
AP ASS'Y
|
|
| 79. |
2420-1226
|
[6] |
O/L RELIEF ASS'Y
|
|
| 8. |
S8000141
|
[4] |
O-RING
|
|
| 80. |
2420-1234
|
[2] |
FOOT RELIEF ASS'Y
|
|
| 81. |
181-00115
|
[2] |
PLUG ASS'Y;OVER LOAD
|
|
| 82. |
430-00012
|
[1] |
CAP;LOAD CHECK
|
|
| 88. |
2420-1238
|
[6] |
CHECK
|
|
| 89. |
2430-1046A
|
[5] |
CAP
|
|
| 9. |
2409-1059
|
[1] |
PISTON
|
|
| 90. |
2114-1691
|
[8] |
SPACER
|
|
| 91. |
S8060261
|
[9] |
RING;BACK UP
|
|
| 92. |
S8000261
|
[9] |
O-RING
|
|
| 93. |
2430-1048
|
[1] |
CAP
|
|
| 94. |
2114-1693
|
[1] |
SPACER
|
|
| 95. |
2420-1147
|
[1] |
CHECK
|
|
| 96. |
2129-1373
|
[1] |
SPRING
|
|
| 97. |
2430-1045
|
[2] |
CAP
|
|
| 98. |
2420-1139
|
[3] |
CHECK
|
|
| 99. |
2430-1049
|
[1] |
CAP
|
|
