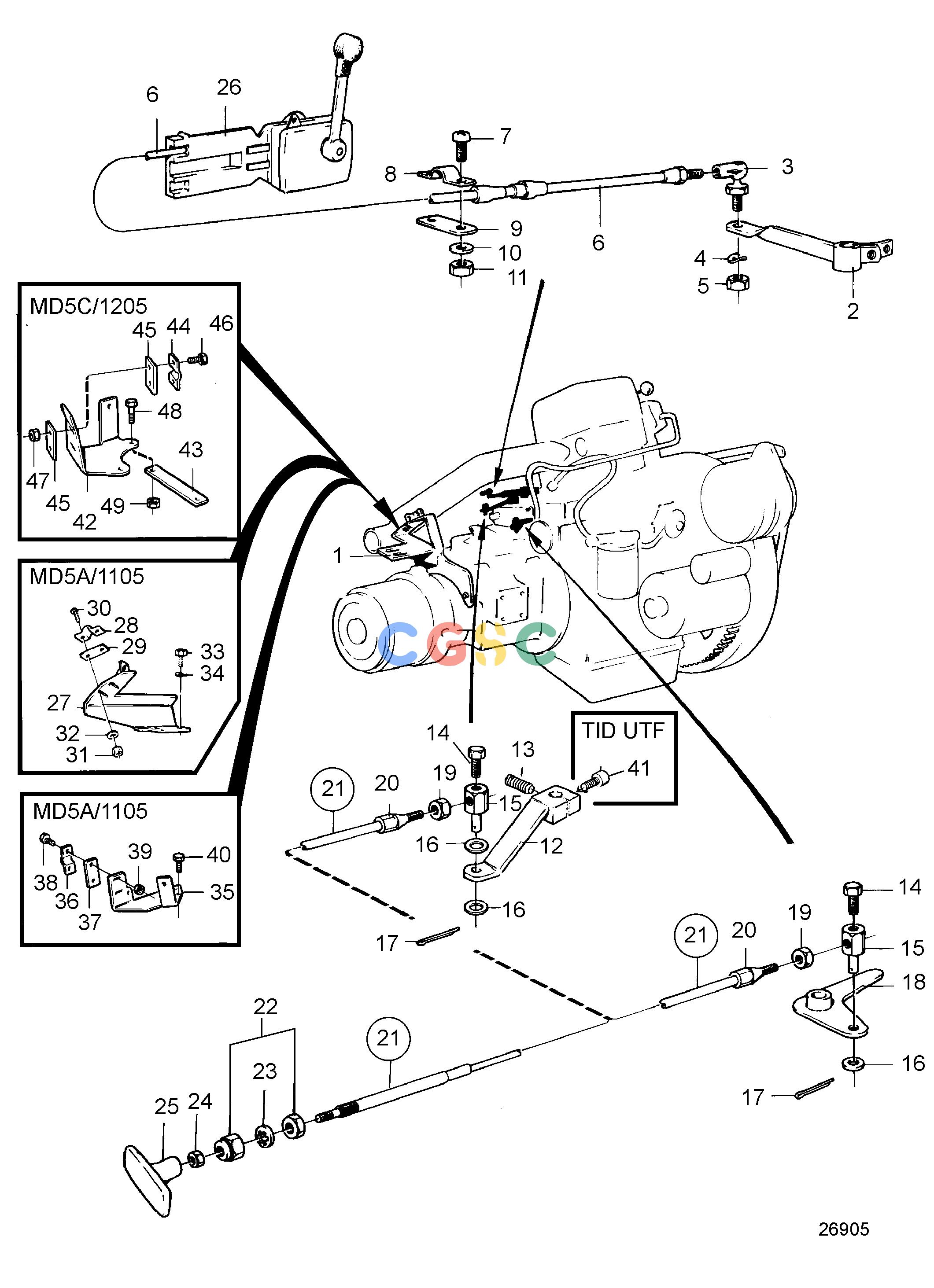

沃尔沃零件查询MD5A; MD5B; MD5CControlsControls: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
838082
|
[1] |
Lever
|
See group 2C
|
| 3. |
813042
|
[1] |
Ball joint
|
|
| 4. |
941905
|
[1] |
Spring washer
|
|
| 5. |
951784
|
[1] |
Nut
|
|
| 6. |
|
|
|
See group 9
|
| 7. |
956078
|
[2] |
Cross recessed screw
|
|
| 8. |
21471054
|
[1] |
Bracket
|
|
| 9. |
819068
|
[1] |
Washer
|
|
| 10. |
940090
|
[2] |
Washer
|
|
| 11. |
963104
|
[2] |
Lock nut
|
|
| 11. |
|
|
|
See group 4B,4C
|
| 12. |
838257
|
[1] |
Lever
|
Early production of lever is replaced by 838257 + 949235, See group 2C
|
| 13. |
949235
|
[1] |
Set screw
|
Early production of lever is replaced by 838257 + 949235
|
| 14. |
192244
|
[2] |
Screw
|
|
| 15. |
3841580
|
[2] |
Cube
|
|
| 16. |
955892
|
[4] |
Washer
|
|
| 17. |
907824
|
[2] |
Split pin
|
|
| 18. |
838214
|
[1] |
Lever
|
|
| 19. |
950363
|
[2] |
Lock nut
|
|
| 20. |
829070
|
[1] |
Cable lock
|
|
| 21. |
818470
|
[1] |
Push pull control
|
L=6900mm
|
| 21. |
818478
|
[1] |
Push pull control
|
L=3300mm
|
| 22. |
955857
|
[2] |
Hexagon nut
|
|
| 23. |
955950
|
[1] |
Toothed washer
|
|
| 24. |
955844
|
[1] |
Hexagon nut
|
|
| 25. |
829241
|
[1] |
Handle
|
|
| 26. |
|
|
|
See group 9
|
| 42. |
838373
|
[1] |
Bracket
|
MD5C/120S
|
| 43. |
838398
|
[1] |
Stay
|
MD5C/120S
|
| 44. |
21471054
|
[1] |
Bracket
|
|
| 45. |
819068
|
[2] |
Washer
|
|
| 46. |
955246
|
[2] |
Hexagon screw
|
|
| 47. |
946577
|
[2] |
Lock nut
|
|
| 48. |
955293
|
[1] |
Hexagon screw
|
|
| 49. |
946036
|
[1] |
Lock nut
|
|
