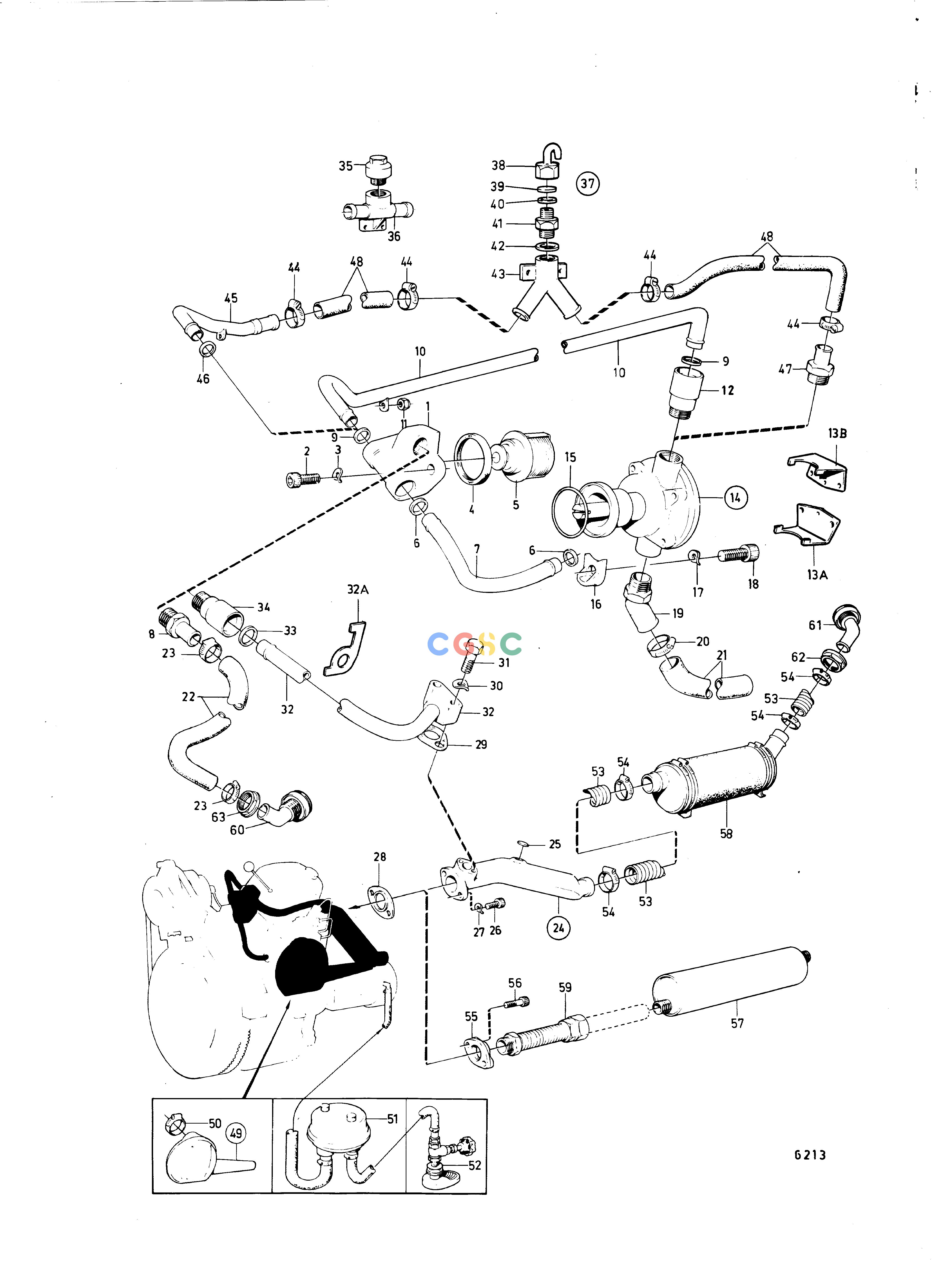

沃尔沃零件查询MD5A; MD5B; MD5CCooling SystemCooling System, Induction- and Exhaust Manifold: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
749 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838133
|
[1] |
Thermostat housing
|
|
| 2. |
959220
|
[2] |
Hex. socket screw
|
|
| 3. |
941907
|
[2] |
Spring washer
|
|
| 4. |
838013
|
[1] |
Gasket
|
Included in 875783.
|
| 5. |
|
|
|
Replaced by 838286., MO-18373
|
| 5. |
875783
|
[1] |
Thermostat kit
|
60°C, MO 18374-
|
| 6. |
829714
|
[2] |
Sealing ring
|
|
| 7. |
838148
|
[1] |
Coolant pipe
|
|
| 8. |
801203
|
[1] |
Hose attachment
|
|
| 9. |
829714
|
[2] |
Sealing ring
|
Early type
|
| 10. |
838147
|
[1] |
Coolant pipe
|
Early type
|
| 11. |
946036
|
[1] |
Lock nut
|
See group 2A
|
| 12. |
838089
|
[1] |
Insert nipple
|
Early type
|
| 14. |
833883
|
[1] |
Water pump
|
|
| 15. |
955998
|
[1] |
O-ring
|
|
| 16. |
833879
|
[2] |
Clamp
|
|
| 17. |
941907
|
[2] |
Spring washer
|
|
| 18. |
959220
|
[2] |
Hex. socket screw
|
|
| 19. |
801202
|
[1] |
Hose attachment
|
|
| 20. |
943472
|
[2] |
Hose clamp
|
See group 4A
|
| 21. |
943368
|
[1] |
Rubber hose
|
See group 4A
|
| 22. |
952969
|
[1] |
Hose
|
|
| 23. |
961666
|
[2] |
Hose clamp
|
|
| 24. |
838224
|
[1] |
Exhaust pipe elbow
|
|
| 25. |
192426
|
[1] |
Expansion plug
|
|
| 26. |
959239
|
[1] |
Hex. socket screw
|
|
| 27. |
941908
|
[2] |
Spring washer
|
|
| 28. |
803374
|
[1] |
Gasket
|
|
| 29. |
800326
|
[1] |
Gasket
|
|
| 30. |
941906
|
[2] |
Spring washer
|
|
| 31. |
955275
|
[2] |
Hexagon screw
|
L=30mm
|
| 32. |
838210
|
[1] |
Coolant pipe
|
|
| 33. |
829714
|
[1] |
Sealing ring
|
|
| 34. |
838089
|
[1] |
Insert nipple
|
|
| 35. |
|
|
|
Replaced by 828263, 828262., Early type
|
| 36. |
|
|
|
Replaced by 828263, 828262., Early type
|
| 37. |
828534
|
[1] |
Vacuum valve
|
(828263)
|
| 38. |
|
|
|
|
| 39. |
|
|
|
|
| 40. |
828424
|
[2] |
Gasket
|
|
| 41. |
|
|
|
|
| 42. |
947282
|
[2] |
Gasket
|
|
| 43. |
828262
|
[1] |
Hose connection
|
|
| 44. |
943472
|
[4] |
Hose clamp
|
|
| 45. |
838155
|
[1] |
Copper tube
|
|
| 46. |
829714
|
[1] |
Sealing ring
|
|
| 47. |
801203
|
[1] |
Hose attachment
|
|
| 48. |
952969
|
[1] |
Hose
|
|
| 49. |
838216
|
[1] |
Air cleaner
|
|
| 50. |
|
|
|
|
| 51. |
831733
|
[1] |
Strainer
|
See group 9
|
| 52. |
|
|
|
See group 9
|
| 53. |
828072
|
[1] |
Exhaust hose
|
|
| 54. |
961672
|
[5] |
Hose clamp
|
|
| 55. |
807050
|
[1] |
Exhaust pipe flange
|
|
| 56. |
959240
|
[2] |
Hex. socket screw
|
L=35mm
|
| 57. |
833840
|
[1] |
Silencer
|
|
| 58. |
828064
|
[1] |
Silencer
|
See group 9
|
| 59. |
833841
|
[1] |
Compensator
|
|
| 60. |
833937
|
[1] |
Cable grommet
|
|
| 61. |
827874
|
[1] |
Hull fitting
|
|
| 62. |
827877
|
[1] |
Nut
|
|
| 63. |
807595
|
[1] |
Nut
|
|
