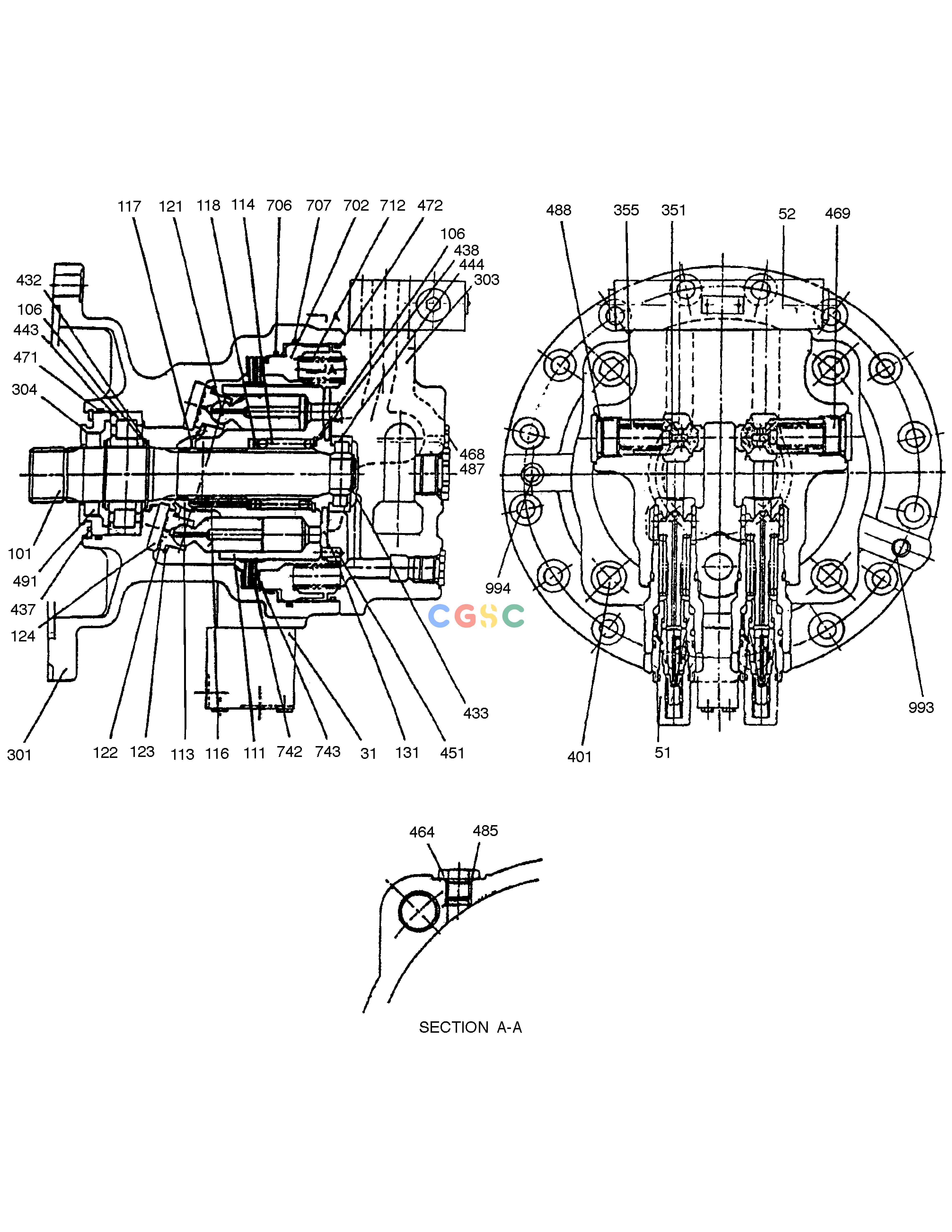

斗山零件查询SWING MOTOR SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
409-00009
|
[1] |
PISTON ASS'Y
|
|
| . |
2401-9242KT
|
[1] |
SEAL KIT;SWING MOTOR
|
|
| -. |
401-00086A
|
[1] |
MOTOR;SWING
|
|
| 101. |
405-00013
|
[1] |
SHAFT;DRIVE
|
|
| 106. |
114-00240
|
[3] |
SPACER
|
|
| 111. |
410-00005
|
[1] |
CYLINDER BLOCK
|
|
| 113. |
408-00015
|
[1] |
BUSH;SPHERICAL
|
|
| 114. |
129-00060
|
[1] |
SPRING;CYLINDER
|
|
| 116. |
454-00007
|
[12] |
ROD;PUSH
|
|
| 117. |
114-00241
|
[1] |
SPACER
|
|
| 118. |
114-00242
|
[1] |
SPACER
|
|
| 121. |
1.409-00090
|
[9] |
PISTON
|
|
| 122. |
1.355-00005
|
[9] |
SHOE
|
|
| 123. |
223-00024
|
[1] |
RETAINER
|
|
| 124. |
412-00011
|
[1] |
PLATE;SHOE
|
|
| 131. |
412-00019
|
[1] |
PLATE;VALVE
|
|
| 301. |
1.402-00060
|
[1] |
CASING
|
|
| 303. |
423-00053
|
[1] |
CASING;VALVE
|
|
| 304. |
119-00004
|
[1] |
COVER;FRONT
|
|
| 31. |
420-00110
|
[1] |
VALVE;BRAKE
|
|
| 351. |
424-00049
|
[2] |
PLUNGER
|
|
| 355. |
129-00061
|
[2] |
SPRING
|
|
| 401. |
S2227561
|
[4] |
BOLT;SOCKET
|
|
| 432. |
S6500450
|
[2] |
RING;SNAP
|
|
| 433. |
S6500250
|
[1] |
RING;RETAINING
|
|
| 437. |
S6511000
|
[1] |
RING;LOCK
|
|
| 438. |
S6510580
|
[1] |
RING;LOCK
|
|
| 443. |
109-00099
|
[1] |
BEARING;ROLLER
|
|
| 444. |
109-00110
|
[1] |
BEARING;ROLLER
|
|
| 451. |
S5741162
|
[2] |
PIN;SPRING
|
|
| 464. |
2181-1950D1
|
[1] |
PLUG
|
|
| 468. |
2181-1950D1
|
[2] |
PLUG
|
|
| 469. |
181-00344
|
[2] |
PLUG;RO
|
|
| 471. |
S8011001
|
[1] |
. O-RING
|
|
| 472. |
2180-1217D156
|
[1] |
O-RING
|
|
| 485. |
S8000111
|
[1] |
O-RING
|
|
| 487. |
S8000111
|
[2] |
O-RING
|
|
| 488. |
S8000281
|
[2] |
O-RING
|
|
| 491. |
180-00219
|
[1] |
SEAL;OIL
|
|
| 51. |
420-00195
|
[2] |
VALVE;RELIEF
|
|
| 52. |
2420-9621A
|
[1] |
VALVE;SWING REACTIONESS
|
|
| 702. |
452-00020
|
[1] |
PISTON;BRAKE
|
|
| 706. |
180-00220
|
[1] |
O-RING
|
|
| 707. |
180-00221
|
[1] |
O-RING
|
|
| 712. |
129-00062
|
[18] |
SPRING;BRAKE
|
|
| 742. |
412-00013
|
[2] |
PLATE,FRICTION
|
|
| 743. |
352-00014
|
[3] |
PLATE,SEPARATION
|
|
| 993. |
2181-1116D2
|
[1] |
PLUG
|
|
| 994. |
2181-1116D5
|
[1] |
PLUG
|
|
