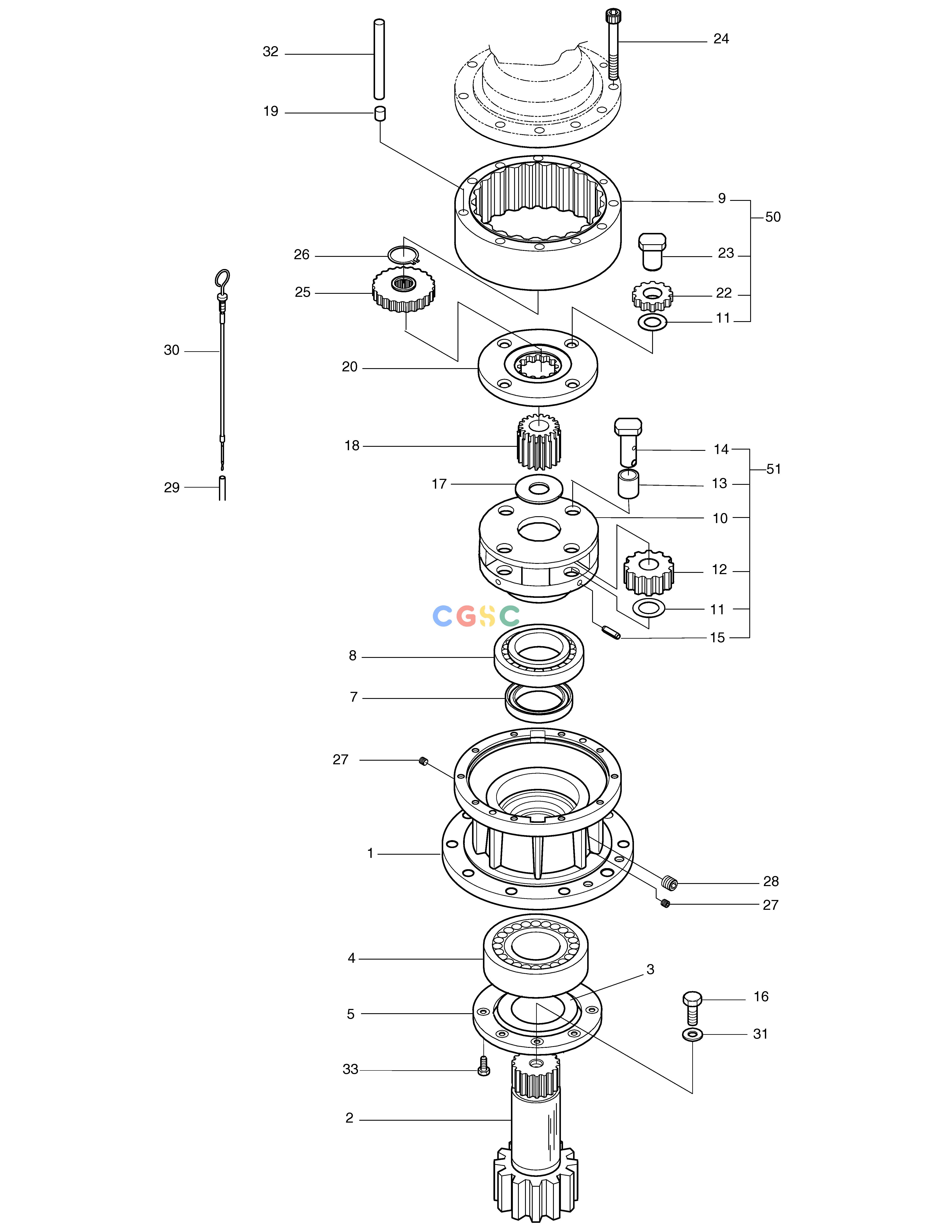

斗山零件查询SWING REDUCTION GEAR SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
633 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2404-1063I
|
[1] |
GEAR;REDUCTION
|
|
| 1. |
2423-1496G
|
[1] |
CASING
|
|
| 10. |
2230-1037A
|
[1] |
CARRIER NO.2
|
|
| 11. |
2114-1901A
|
[8] |
WASHER;THRUST NO.2
|
|
| 12. |
2104-1022B
|
[4] |
GEAR;PLANET NO.2
|
|
| 13. |
2110-1371A
|
[4] |
BUSH NO.2
|
|
| 14. |
2123-2322B
|
[4] |
PIN NO.2
|
|
| 15. |
S5741341
|
[4] |
PIN;SPRING
|
|
| 16. |
S0121061
|
[1] |
BOLT
|
|
| 17. |
2114-1902
|
[1] |
WASHER;THRUST NO.3
|
|
| 18. |
2104-1021B
|
[1] |
GEAR;SUN NO.2
|
|
| 19. |
2705-1030
|
[4] |
PIN;KNOCK
|
|
| 2. |
2112-1248E
|
[1] |
SHAFT;DRIVE
|
|
| 20. |
2230-1036B
|
[1] |
CARRIER NO.1
|
|
| 22. |
2104-1020C
|
[4] |
GEAR;PLANET NO.1
|
|
| 23. |
2123-2327A
|
[4] |
PIN ASS'Y NO.1
|
|
| 24. |
S2217471
|
[16] |
BOLT;SOCKET
|
|
| 25. |
2104-1019B
|
[1] |
GEAR;SUN NO.1
|
|
| 26. |
S6500450
|
[1] |
RING;SNAP
|
|
| 27. |
2181-1116D2
|
[2] |
PLUG
|
|
| 28. |
2181-1116D4
|
[1] |
PLUG
|
|
| 29. |
2140-1406
|
[1] |
PIPE;LEVEL GAUGE
|
|
| 3. |
2412-1040
|
[1] |
PLATE
|
|
| 30. |
2119-1065
|
[1] |
GAUGE;LEVEL
|
|
| 31. |
S5231090
|
[1] |
WASHER;DOUBLE TAP
|
|
| 32. |
2182-1756A
|
[4] |
PIPE
|
|
| 33. |
120-00144
|
[8] |
BOLT
|
|
| 4. |
2109-9033
|
[1] |
BEARING;ROLLER
|
|
| 5. |
2891-1421B
|
[1] |
PLATE;COVER
|
|
| 50. |
230-00050
|
[1] |
CARRIER NO.1 ASS'Y
|
|
| 51. |
230-00051
|
[1] |
CARRIER NO.2 ASS'Y
|
|
| 7. |
2180-1254
|
[1] |
SEAL;OIL
|
|
| 8. |
109-00174
|
[1] |
BEARING;ROLLER
|
|
| 9. |
2104-1013A
|
[1] |
GEAR;RING
|
|
