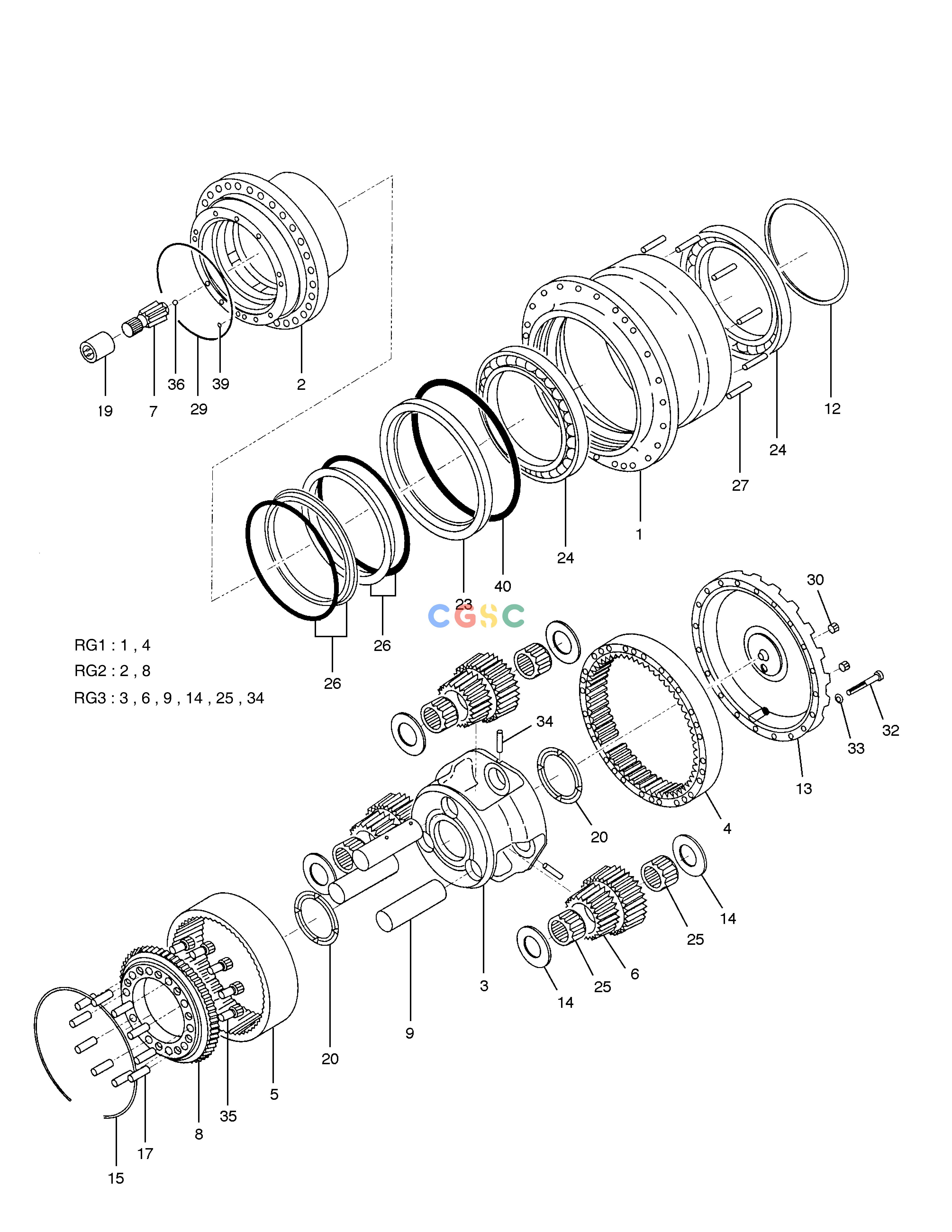

斗山零件查询TRAVEL REDUCTION GEAR SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00454C
|
[2] |
TRAVEL DEVICE
|
|
| 1. |
NA00546
|
[1] |
HUB
|
|
| 12. |
1.540-00004
|
[1] |
PIECE;DISTANCE
|
|
| 13. |
1.430-00030
|
[1] |
COVER
|
|
| 14. |
1.114-00541
|
[6] |
COLLAR;THRUST
|
|
| 15. |
1.115-00138
|
[1] |
RING
|
|
| 17. |
1.123-00034
|
[10] |
PIN
|
|
| 19. |
1.414-00009
|
[1] |
COUPLING
|
|
| 2. |
NA01154
|
[1] |
|
|
| 20. |
1.412-00164
|
[2] |
PLATE;THRUST
|
|
| 23. |
1.180-00355
|
[1] |
RING;SEAL
|
|
| 24. |
1.109-00146
|
[2] |
BEARING;ANGULAR BALL
|
|
| 25. |
1.109-00145
|
[6] |
BEARING;NEEDLE
|
|
| 26. |
1.180-00512
|
[1] |
SEAL;FLOATING
|
|
| 27. |
NA00774
|
[10] |
|
|
| 29. |
S8012300
|
[1] |
O-RING
|
|
| 3. |
1.230-00054
|
[1] |
CARRIER
|
|
| 30. |
2181-1116D4
|
[3] |
PLUG
|
|
| 32. |
S0561471
|
[20] |
BOLT;HEX M12X1.75X85
|
|
| 33. |
S5110701
|
[20] |
WASHER;SPRING M12
|
|
| 34. |
1.123-00026
|
[3] |
PIN;PARALLEL
|
|
| 35. |
S2224471
|
[10] |
..BOLT;SOCKET M8X2.5X40
|
|
| 36. |
S6250200
|
[1] |
BALL;STELL
|
|
| 39. |
S8000081
|
[2] |
O-RING
|
|
| 4. |
NA00495
|
[1] |
|
|
| 40. |
S8003401
|
[1] |
JOINT TORIQUE
|
|
| 5. |
1.104-00003
|
[1] |
GAER;RING B
|
|
| 6. |
1.404-00007
|
[3] |
GEAR;CLUSTER
|
|
| 7. |
1.403-00111
|
[1] |
GEAR;SUN
|
|
| 8. |
NA00485
|
[1] |
|
|
| 9. |
1.405-00121
|
[3] |
SHAFT;CLUSTER
|
|
| RG. |
1.404-00001
|
[1] |
REDUCTION GEAR ASS'Y
|
|
| RG1. |
1.156-00001
|
[1] |
HUB ASS'Y
|
|
| RG2. |
1.220-00001
|
[1] |
SPINDLE ASS'Y
|
|
| RG3. |
1.230-00053
|
[1] |
CARRIER ASS'Y
|
|
