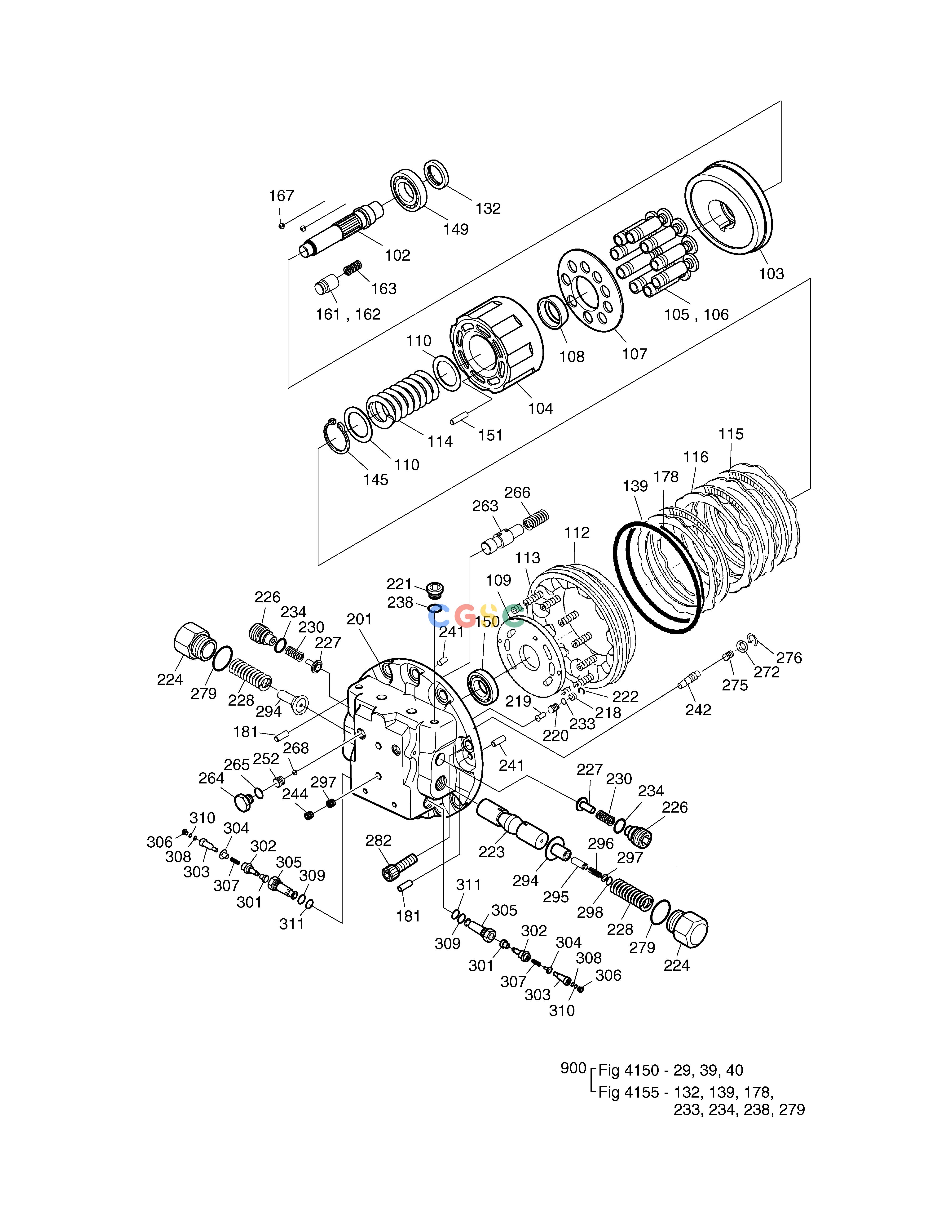

斗山零件查询TRAVEL MOTOR SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00454C
|
[2] |
TRAVEL DEVICE
|
|
| 102. |
1.405-00022
|
[1] |
SHAFT;MAIN
|
|
| 103. |
1.412-00202
|
[1] |
PLATE;SWASH
|
|
| 104. |
1.441-00292
|
[1] |
BLOCK;CYL'D
|
|
| 105. |
1.409-00232
|
[9] |
PISTON
|
|
| 106. |
1.355-00011
|
[9] |
SHOE
|
|
| 107. |
1.412-00093
|
[1] |
PLATE;RETAINER
|
|
| 108. |
1.148-00016
|
[1] |
BALL;THRUST
|
|
| 109. |
1.412-00203
|
[1] |
PLATE;TIMING
|
|
| 110. |
1.114-00305
|
[2] |
WASHER
|
|
| 112. |
1.409-00115
|
[1] |
PISTON;PARKING
|
|
| 113. |
1.131-00055
|
[9] |
SPRING;P/PISTON
|
|
| 114. |
1.129-00019
|
[1] |
SPRING;FOR CYL'D
|
|
| 115. |
1.412-00061
|
[3] |
PLATE;FRICTION
|
|
| 116. |
1.412-00072
|
[4] |
PLATE;MATING
|
|
| 132. |
1.180-00631
|
[1] |
SEAL;OIL
|
|
| 139. |
S8002101
|
[1] |
O-RING
|
|
| 145. |
S6510700
|
[1] |
RING;SNAP
|
|
| 149. |
1.109-00147
|
[1] |
BEARING;BALL
|
|
| 150. |
1.109-00026
|
[1] |
BEARING;BALL
|
|
| 151. |
1.109-00135
|
[6] |
ROLLER
|
|
| 161. |
1.409-00116
|
[1] |
PISTON
|
|
| 162. |
1.355-00012
|
[1] |
SHOE
|
|
| 163. |
1.131-00042
|
[1] |
SPRING
|
|
| 167. |
1.540-00006
|
[2] |
PIVOT
|
|
| 178. |
S8011951
|
[1] |
O-RING
|
|
| 181. |
S5701242
|
[2] |
PIN
|
|
| 201. |
NA00460
|
[1] |
. FLANGE;REAR
|
|
| 218. |
1.427-00029
|
[1] |
VALVE;SEAT T-TYPE
|
|
| 219. |
1.420-00009
|
[1] |
VALVE;T-TYPE
|
|
| 220. |
1.131-00041
|
[1] |
SPRING;T-TYPE
|
|
| 221. |
2181-1890D4
|
[1] |
PLUG
|
|
| 222. |
1.115-00139
|
[1] |
. RING;T-TYPE
|
|
| 223. |
1.424-00062
|
[1] |
SPOOL;MAIN
|
|
| 224. |
1.181-00059
|
[2] |
PLUG;FOR MAIN
|
|
| 226. |
1.181-00067
|
[2] |
PLUG;CHECK
|
|
| 227. |
1.420-00013
|
[2] |
VALVE;CHECK
|
|
| 228. |
1.131-00058
|
[2] |
SPRING;FOR MAIN
|
|
| 230. |
1.129-00006
|
[2] |
SPRING;CHECK
|
|
| 233. |
S8000091
|
[1] |
O-RING
|
|
| 234. |
S8002731
|
[2] |
O-RING
|
|
| 238. |
S8000181
|
[1] |
O-RING
|
|
| 241. |
S5700891
|
[2] |
PIN;PARALLEL
|
|
| 242. |
1.420-00014
|
[1] |
VALVE;REDUCING
|
|
| 244. |
2181-1116D1
|
[1] |
PLUG
|
|
| 252. |
2181-1116D2
|
[4] |
PLUG
|
|
| 263. |
422-00031
|
[1] |
VALVE;TWO SPEED
|
|
| 264. |
K9001047
|
[1] |
PLUG
|
|
| 265. |
S8000111
|
[1] |
O-RING
|
|
| 266. |
1.131-00099
|
[1] |
. SPRING;TWO SPEED
|
|
| 268. |
S6250161
|
[2] |
. BALL;STEEL
|
|
| 272. |
1.427-00031
|
[1] |
SEAT;VALVE REDUCING
|
|
| 275. |
1.131-00062
|
[1] |
SPRING;REDUCING V/V
|
|
| 276. |
1.115-00141
|
[1] |
RING;REDUCING
|
|
| 279. |
S8000321
|
[2] |
O-RING
|
|
| 282. |
S2221471
|
[9] |
BOLT,SOCKET
|
|
| 294. |
1.416-00027
|
[1] |
STOPPER
|
|
| 295. |
1.424-00063
|
[1] |
SPOOL;MAIN
|
|
| 296. |
1.129-00018
|
[1] |
SPRING
|
|
| 297. |
1.114-00542
|
[1] |
WASHER
|
|
| 297. |
1.415-00005
|
[1] |
ORIFICE
|
|
| 298. |
S6550100
|
[1] |
RING;SNAP
|
|
| 301. |
1.429-00037
|
[1] |
SEAT
|
|
| 302. |
1.424-00064
|
[1] |
PLUNGER
|
|
| 303. |
1.424-00065
|
[1] |
ROD
|
|
| 304. |
1.409-00233
|
[1] |
PISTON
|
|
| 305. |
1.441-00295
|
[1] |
BODY
|
|
| 306. |
1.181-00154
|
[1] |
PLUG
|
|
| 307. |
1.129-00020
|
[1] |
SPRING
|
|
| 308. |
1.114-00543
|
[1] |
SHIM
|
|
| 309. |
S8000181
|
[1] |
O-RING
|
|
| 310. |
S8000181
|
[1] |
O-RING
|
|
| 311. |
S8060181
|
[1] |
. RING;BACKUP
|
|
| 900. |
2401-9082K
|
[1] |
SEAL KIT
|
|
| M. |
1.401-00011
|
[1] |
MOTOR PART
|
|
| M1. |
1.441-00291
|
[1] |
KIT;CYL'D BLOCK & PISTON
|
|
| M11. |
1.409-00231
|
[1] |
PISTON ASS'Y
|
|
| M2. |
K9001814
|
[1] |
PISTON ASS'Y
|
|
| R1. |
1.426-00024
|
[2] |
RELIEF VALVE ASS'Y
|
|
| RL. |
K9001812
|
[1] |
REAR FLANGE ASS'Y
|
|
| RL1. |
K9001813
|
[1] |
KIT;REAR FLANGE
|
|
| RL2. |
1.416-00026
|
[2] |
STOPPER ASS'Y
|
|
