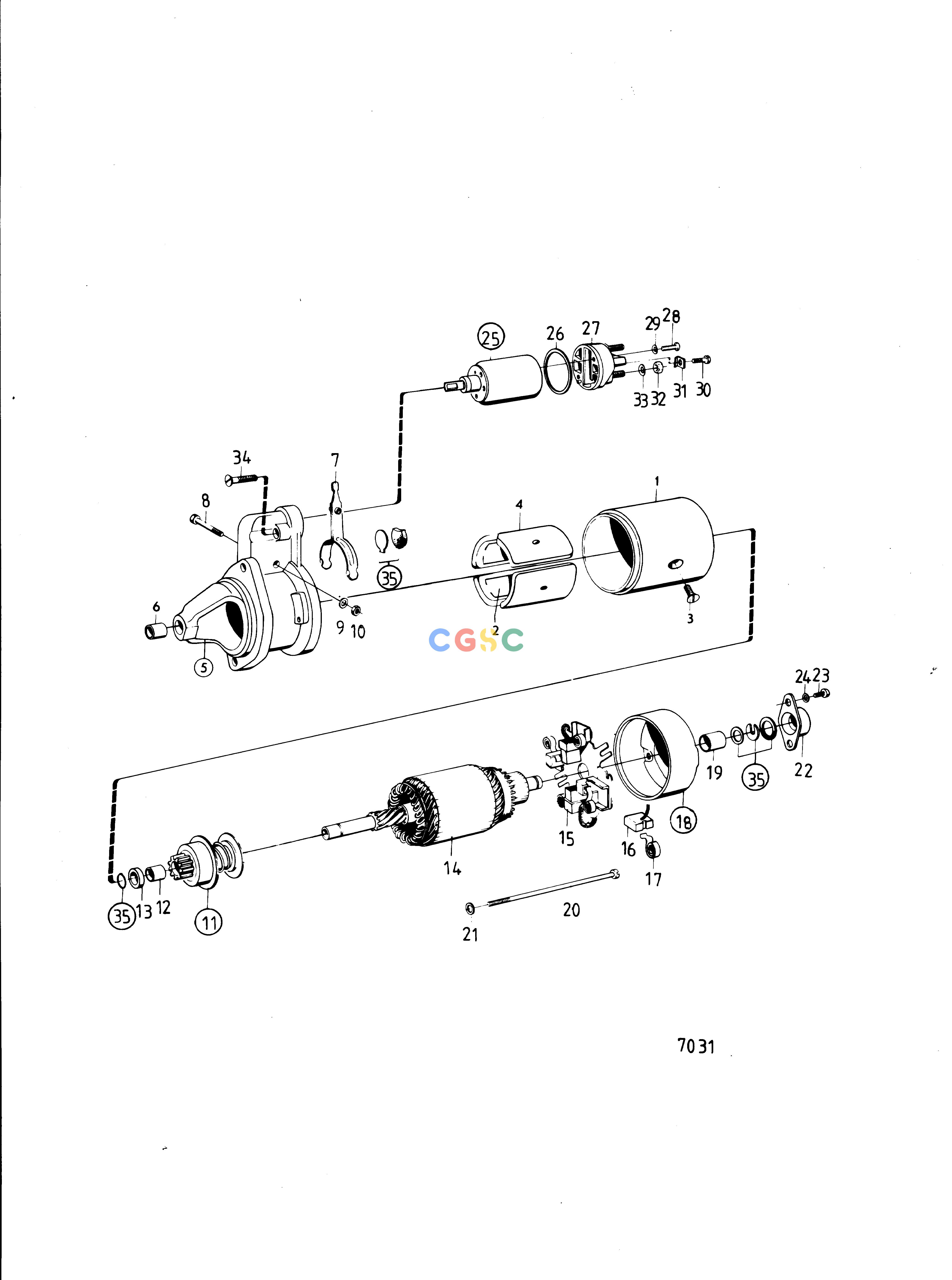

沃尔沃零件查询MD5A; MD5B; MD5CElectrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
702 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838060
|
[1] |
Starter motor
|
|
| 1. |
3803077
|
[1] |
Starter motor, exch
|
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
956130
|
[4] |
Cross recessed screw
|
|
| 4. |
838226
|
[1] |
Field winding
|
|
| 5. |
838227
|
[1] |
Drive bearing
|
|
| 6. |
3101977
|
[1] |
Bearing bushing
|
|
| 7. |
833727
|
[1] |
Engagement lever
|
|
| 8. |
241674
|
[1] |
Screw
|
|
| 9. |
941906
|
[1] |
Spring washer
|
|
| 10. |
955781
|
[1] |
Hexagon nut
|
(244116)
|
| 11. |
838229
|
[1] |
Starter pinion
|
|
| 12. |
240620
|
[2] |
Bushing
|
|
| 13. |
238819
|
[1] |
Stop ring
|
|
| 14. |
838228
|
[1] |
Rotor
|
|
| 15. |
841189
|
[1] |
Brush retainer
|
(241886)
|
| 16. |
243910
|
[1] |
Brush set
|
|
| 17. |
834519
|
[4] |
Spring
|
|
| 18. |
870732
|
[1] |
Bearing
|
|
| 19. |
240602
|
[1] |
Bushing
|
|
| 20. |
833734
|
[2] |
Screw
|
|
| 21. |
86287
|
[2] |
Washer
|
|
| 22. |
240606
|
[1] |
Cover
|
|
| 23. |
956059
|
[2] |
Cross recessed screw
|
(241292)
|
| 24. |
243913
|
[1] |
Solenoid
|
|
| 25. |
240626
|
[1] |
Adjusting washer
|
TH=0.5mm
|
| 26. |
240627
|
[1] |
Adjusting washer
|
TH=1.0mm
|
| 27. |
243248
|
[1] |
Cover
|
|
| 28. |
|
|
|
|
| 29. |
941905
|
[2] |
Spring washer
|
|
| 30. |
955224
|
[1] |
Hexagon screw
|
|
| 31. |
240499
|
[1] |
Washer
|
|
| 32. |
955782
|
[1] |
Hexagon nut
|
|
| 33. |
941907
|
[1] |
Spring washer
|
|
| 34. |
833736
|
[2] |
Screw
|
|
| 35. |
241300
|
[1] |
Repair kit
|
|
