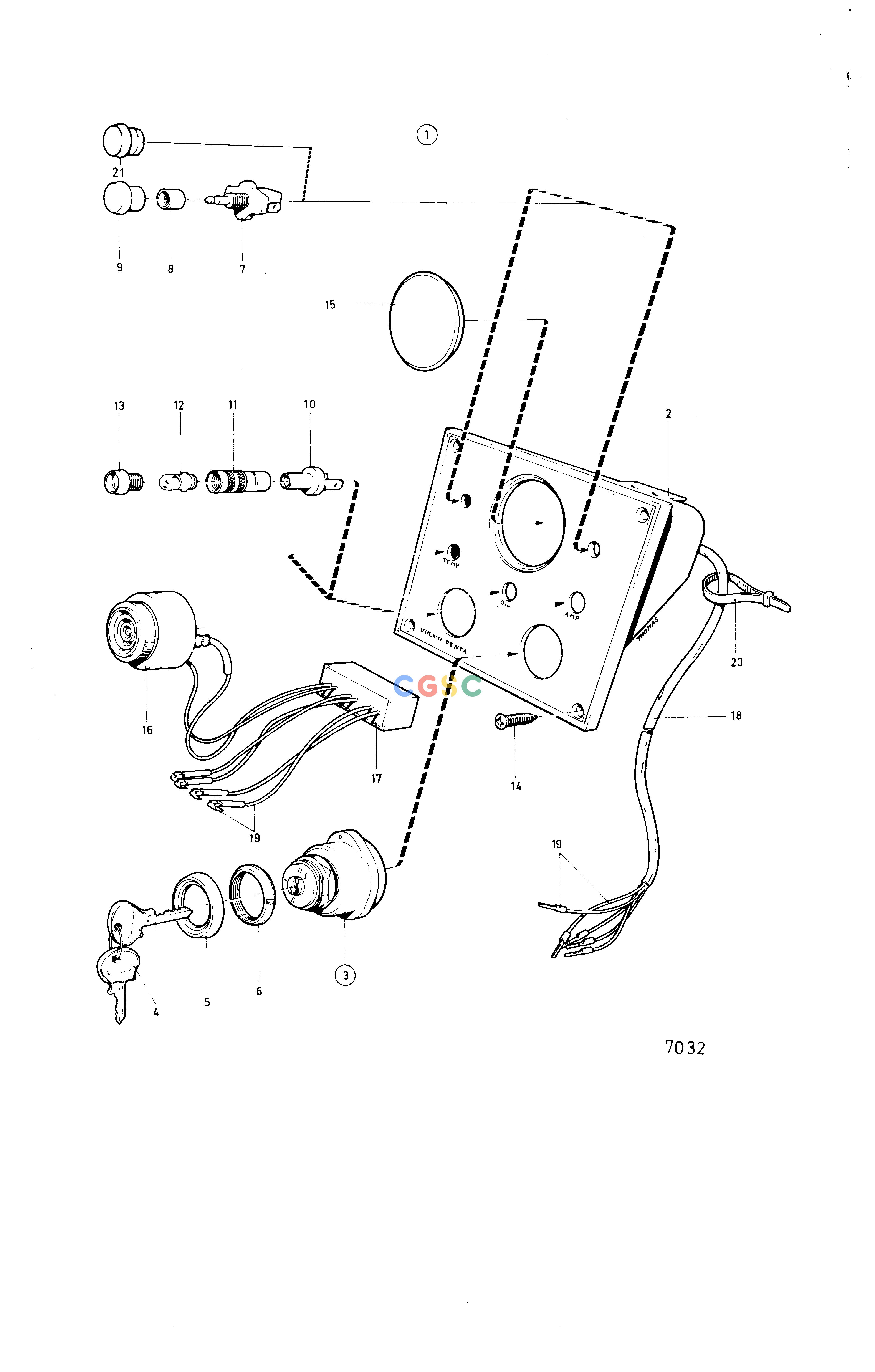

沃尔沃零件查询MD5A; MD5B; MD5CElectrical SystemInstrument PanelEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
464 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833929
|
[1] |
Alarm panel
|
|
| 2. |
833923
|
[1] |
Instrument panel
|
|
| 3. |
824963
|
[1] |
Starter switch
|
|
| 4. |
831606
|
[2] |
Key
|
State key code when ordering
|
| 5. |
827769
|
[1] |
Collar
|
|
| 6. |
831536
|
[1] |
Nut
|
|
| 7. |
875819
|
[2] |
Switch
|
For coupling 815263, 849716
|
| 8. |
843002
|
[2] |
Nut
|
For coupling 815263, 849716
|
| 9. |
837726
|
[2] |
Knob
|
For coupling 815263, 849716
|
| 10. |
808175
|
[3] |
Bulb socket
|
|
| 11. |
819350
|
[3] |
Sleeve
|
|
| 12. |
19923
|
[3] |
Bulb
|
|
| 13. |
827766
|
[3] |
Lens
|
|
| 14. |
944540
|
[4] |
Screw
|
|
| 15. |
839128
|
[1] |
Plastic plug
|
|
| 16. |
827597
|
[1] |
Signalling device
|
|
| 17. |
837674
|
[1] |
Alarm separator
|
|
| 18. |
833931
|
[1] |
Cable block
|
|
| 19. |
7742220_032
|
|
cables and terminals
|
|
| 20. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 21. |
845071
|
[2] |
Plug
|
|
