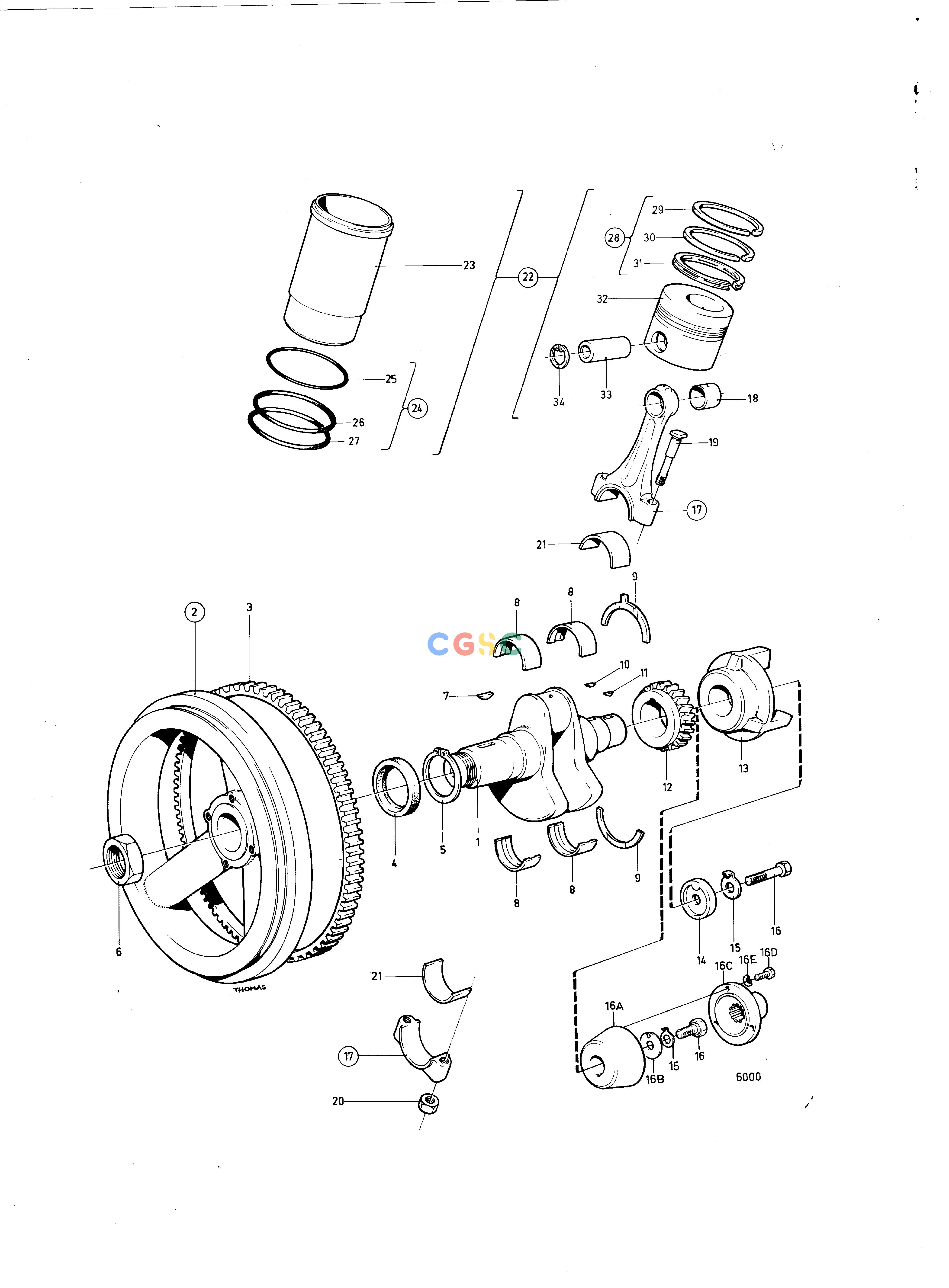

沃尔沃零件查询MD5A; MD5B; MD5CEngineCrankshaft and Related Parts: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
350 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838139
|
[1] |
Crankshaft
|
|
| 2. |
838102
|
[1] |
Flywheel
|
MD5A, spec 867395
|
| 2. |
838114
|
[1] |
Flywheel
|
|
| 3. |
430057
|
[1] |
Gear ring
|
|
| 4. |
1276424
|
[1] |
Sealing ring
|
(1266605)
|
| 5. |
914474
|
[1] |
Snap ring
|
|
| 6. |
10764
|
[1] |
Nut
|
|
| 7. |
910121
|
[1] |
Woodruff key
|
|
| 8. |
875555
|
[2] |
Main bearing kit
|
Std D
|
| 8. |
875556
|
[2] |
Main bearing kit
|
0,25mm u.s
|
| 8. |
875557
|
[2] |
Main bearing kit
|
0,50mm u.s
|
| 9. |
875558
|
[2] |
Thrust washer kit
|
|
| 10. |
910121
|
[1] |
Woodruff key
|
|
| 11. |
910121
|
[1] |
Woodruff key
|
See group 4A
|
| 12. |
838034
|
[1] |
Gear
|
|
| 13. |
833746
|
[1] |
Companion flange
|
MD5A. see group 4A
|
| 13. |
850367
|
[1] |
Companion flange
|
MD5A/110S., See group 4A
|
| 14. |
833785
|
[1] |
Spacer washer
|
|
| 15. |
833849
|
[1] |
Lock washer
|
|
| 16. |
955341
|
[1] |
Hexagon screw
|
|
| 17. |
838115
|
[1] |
Connecting rod
|
|
| 18. |
838028
|
[1] |
Bushing
|
|
| 19. |
807040
|
[2] |
Connecting rod bolt
|
|
| 20. |
463643
|
[2] |
Nut
|
|
| 21. |
875623
|
[1] |
Big-end bearing kit
|
Std D
|
| 21. |
875624
|
[1] |
Big-end bearing kit
|
0,25mm u.s
|
| 21. |
875625
|
[1] |
Big-end bearing kit
|
0,50mm u.s
|
| 22. |
875559
|
[1] |
Cylinder liner kit
|
|
| 23. |
|
|
|
|
| 24. |
875560
|
[1] |
Sealing ring kit
|
|
| 25. |
|
|
|
|
| 26. |
948882
|
[1] |
O-ring, upper
|
|
| 27. |
|
|
|
|
| 28. |
875566
|
[1] |
Piston ring kit
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
838103
|
[1] |
Gudgeon pin
|
|
| 34. |
951086
|
[2] |
Snap ring
|
|
