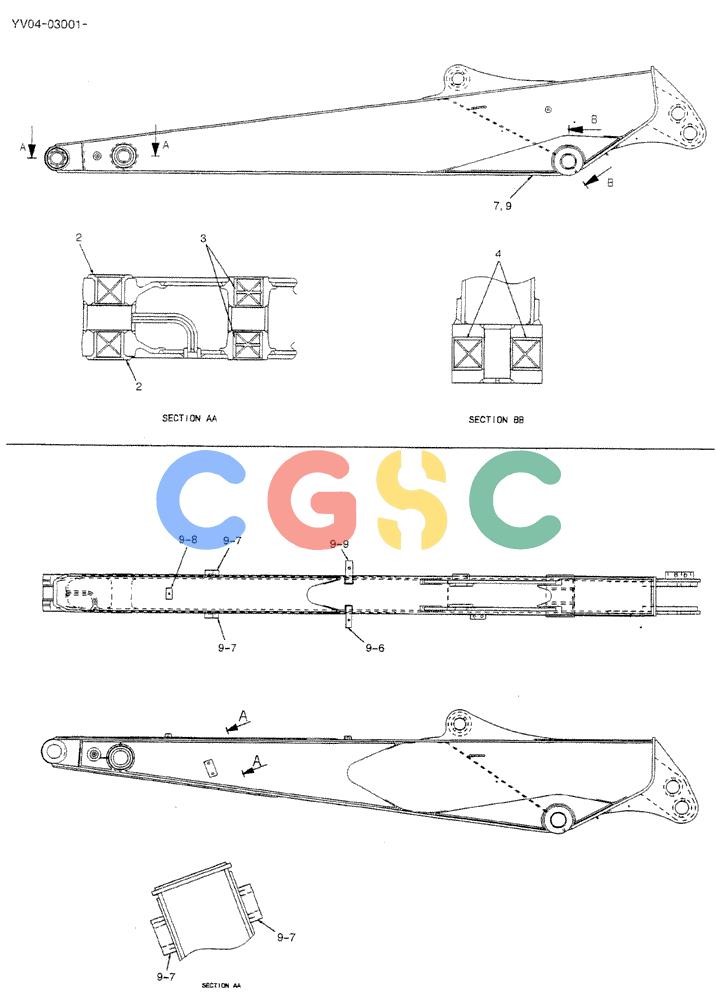

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-030) - ARM, LONG 2.7M (EXTRA, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV12B00091F6 | [1] | ARM ASSY, LONG 2. 7M | |
| 2. | YV12B01068P1 | [2] | BUSHING | KOB Superseded by part number: YW12B01036P1 |
| 3. | YW12B01042P1 | [2] | BUSHING | KOB |
| 4. | YX12B01021P1 | [2] | BUSHING | KOB |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONARM, LONG |
| 9-6. | 2416T5009D2 | [1] | BLOCK | KOB |
| 9-7. | YN43H01051P1 | [2] | BLOCK | KOB |
| 9-8. | 2416T9878D2 | [1] | BLOCK | KOB |
| 9-9. | YV12B01070P1 | [1] | BLOCK | KOBTAPPED |
