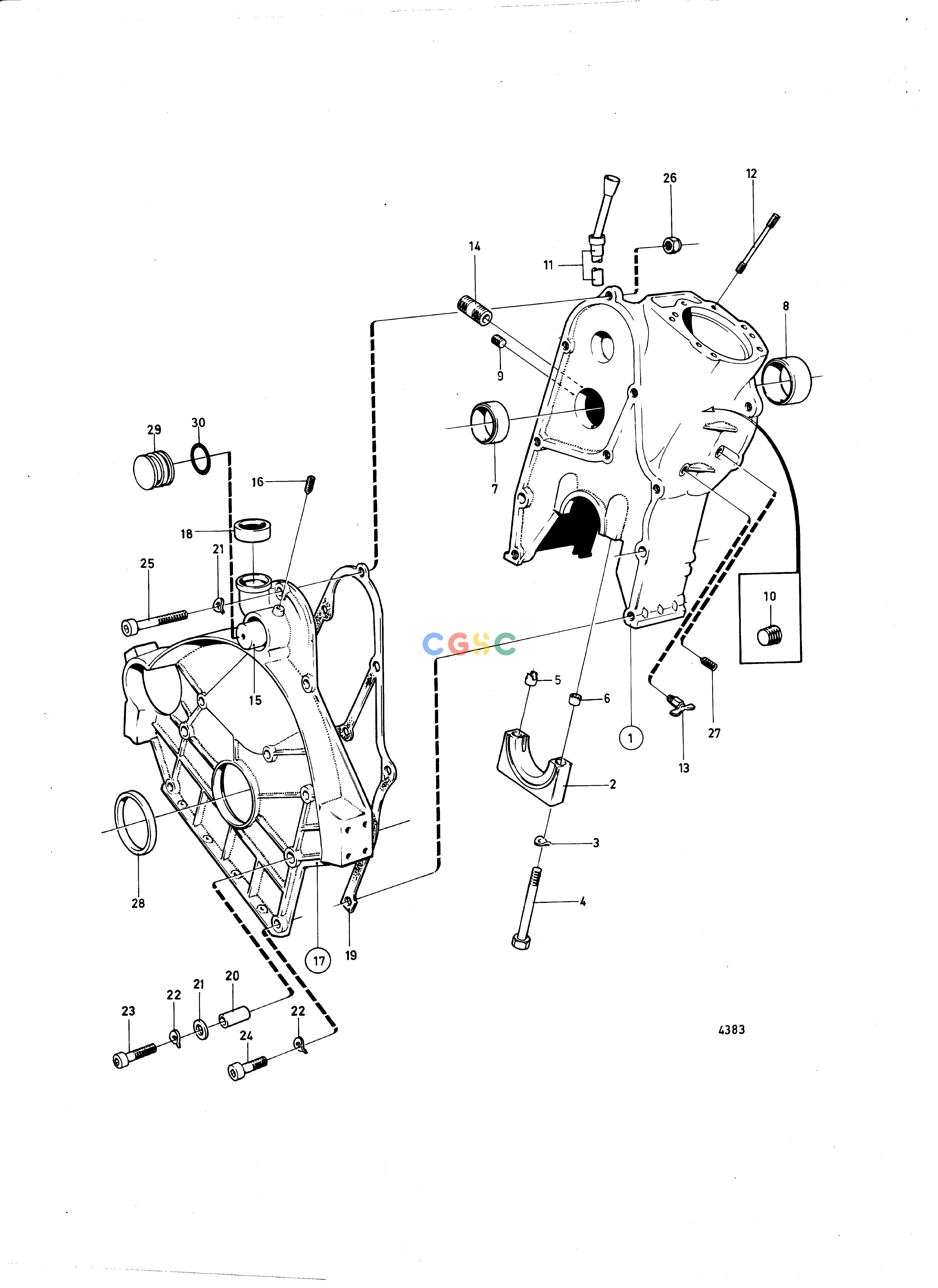

沃尔沃零件查询MD5A; MD5B; MD5CEngineCylinder Block: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838383
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
940280
|
[4] |
Spring washer
|
|
| 4. |
955349
|
[4] |
Hexagon screw
|
|
| 5. |
301718
|
[2] |
Guide sleeve
|
|
| 6. |
70415
|
[2] |
Guide sleeve
|
|
| 7. |
838026
|
[1] |
Bearing
|
|
| 8. |
838025
|
[1] |
Bearing
|
|
| 9. |
829589
|
[2] |
Plug
|
|
| 10. |
833282
|
[2] |
Plug
|
|
| 11. |
838251
|
[1] |
Tube
|
|
| 12. |
838065
|
[5] |
Stud
|
|
| 13. |
829592
|
[1] |
Shut-off cock
|
|
| 14. |
418440
|
[1] |
Nipple
|
|
| 16. |
963008
|
[1] |
Set screw
|
|
| 17. |
838386
|
[1] |
Flywheel housing
|
|
| 18. |
3848300
|
[1] |
Filler pipe
|
|
| 19. |
838055
|
[1] |
Gasket
|
|
| 20. |
838069
|
[2] |
Guide sleeve
|
|
| 21. |
191172
|
[2] |
Washer
|
|
| 22. |
941907
|
[10] |
Spring washer
|
|
| 23. |
941761
|
[2] |
Hex. socket screw
|
|
| 24. |
959222
|
[6] |
Hex. socket screw
|
L=25mm
|
| 24. |
959223
|
[1] |
Hex. socket screw
|
L=30mm, see group 3
|
| 25. |
948424
|
[1] |
Screw
|
See group 3
|
| 26. |
946036
|
[1] |
Lock nut
|
See group 2B, 3
|
| 27. |
963008
|
[1] |
Set screw
|
See group 2C
|
| 28. |
1276424
|
[1] |
Sealing ring
|
|
