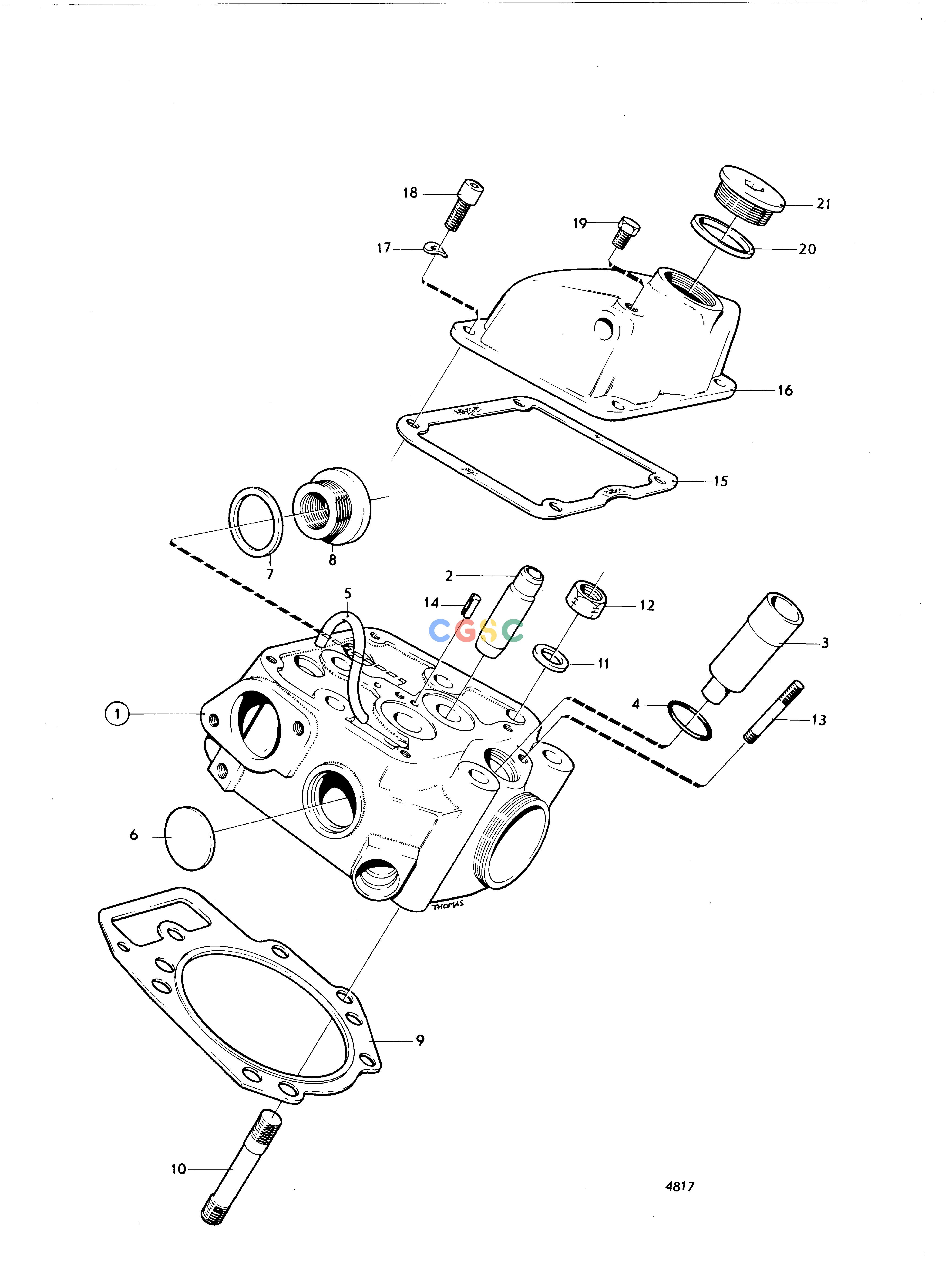

沃尔沃零件查询MD5A; MD5B; MD5CEngineCylinder Head: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
938 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803085
|
[1] |
Cylinder head
|
(859591)
|
| 2. |
829867
|
[2] |
Guide sleeve
|
|
| 3. |
838061
|
[1] |
Nozzle sleeve
|
|
| 4. |
945221
|
[1] |
O-ring
|
|
| 5. |
838172
|
[1] |
Tube
|
|
| 6. |
834207
|
[1] |
Expansion plug
|
|
| 7. |
957191
|
[1] |
Gasket
|
|
| 8. |
838124
|
[1] |
Plug
|
|
| 9. |
838127
|
[1] |
Gasket
|
|
| 10. |
838065
|
[5] |
Stud
|
|
| 11. |
840210
|
[5] |
Washer
|
|
| 12. |
463643
|
[5] |
Nut
|
|
| 13. |
838067
|
[2] |
Stud
|
See group 2C
|
| 14. |
951961
|
[1] |
Spring pin
|
|
| 15. |
838066
|
[1] |
Gasket
|
|
| 16. |
838033
|
[1] |
Valve cover
|
|
| 16. |
838184
|
[1] |
Valve cover
|
Spec 867339, 867452
|
| 17. |
941906
|
[4] |
Spring washer
|
|
| 18. |
942001
|
[4] |
Hex. socket screw
|
|
| 19. |
955243
|
[1] |
Hexagon screw
|
|
| 20. |
957191
|
[1] |
Gasket
|
MD5A
|
| 21. |
833496
|
[1] |
Plug
|
MD5A
|
