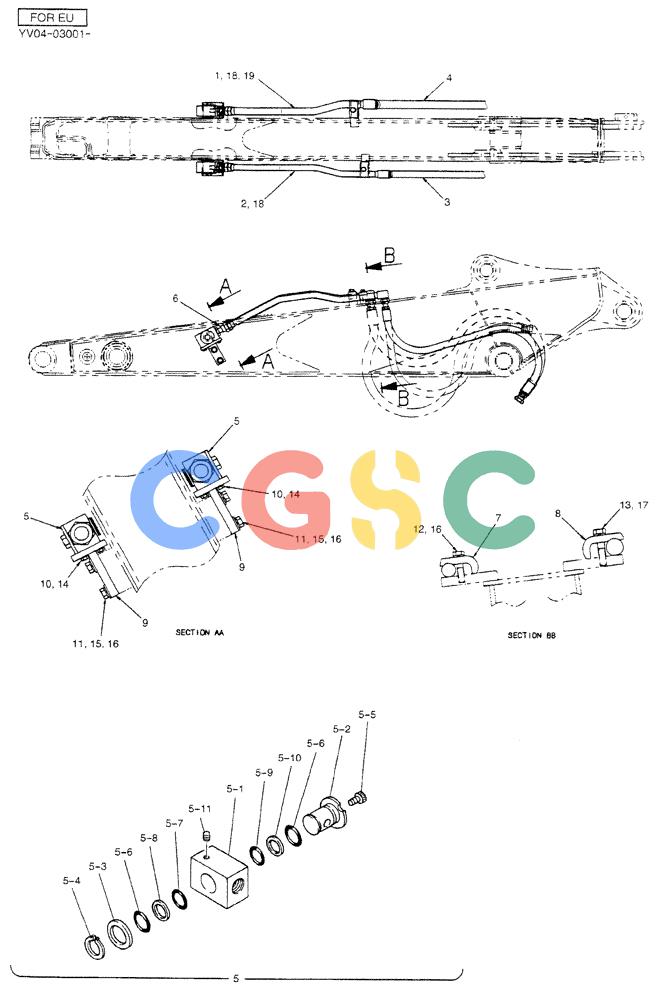

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-033 ) - ARM, LONG 2.2M (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
359 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV43H00025F1 | [1] | HYDR LINES,ARM 2.2M | |
| 1. | YV43H01046P1 | [1] | TUBE | KOB |
| 2. | YV43H01035P1 | [1] | TUBE | KOB |
| 3. | ZX50H12120 | [1] | FLEXIBLE HOSE | KOB |
| 4. | ZX50H16145 | [1] | HOSE ASSY. | KOB |
| 5. | 24100P1006F1 | [2] | VALVE | KOB Superseded by part number: 24100P1006F2 |
| 5-1. | 2436P230 | [1] | VALVE BODY | KOB |
| 5-2. | 2436T304 | [1] | VALVE | KOB |
| 5-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 5-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 5-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 5-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 5-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 5-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 5-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 5-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 5-11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 6. | HG23H12012G1 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 7. | ZC26X28014 | [1] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 8. | ZC26X35016 | [1] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 9. | YW43H01044P1 | [2] | BRACKET | KOB |
| 10. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 11. | ZS18C12045 | [4] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 12. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 13. | ZS18C14065 | [1] | SCREW,Hex, M14 x 65mm | KOBM14x2.0x65mm |
| 14. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 15. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 16. | ZW26X12000 | [5] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 17. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
| 18. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 19. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
