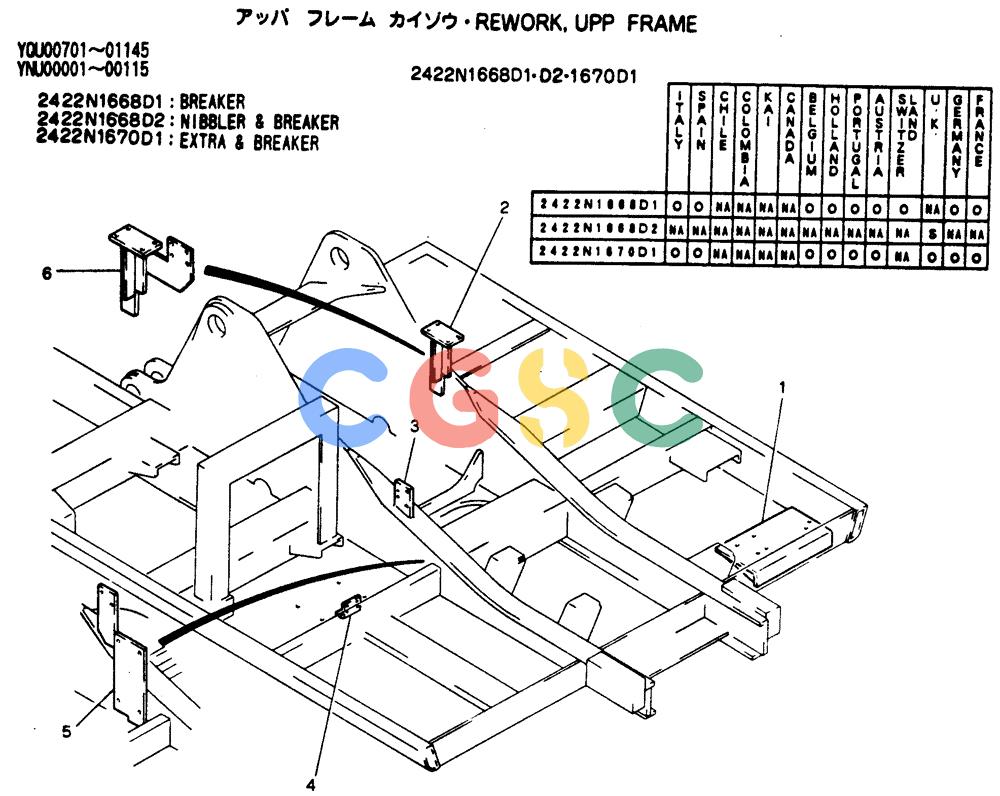

神钢零件查询(BREAKER) - NIBBLER AND BREAKER ATTACHMENT - SK200LC EXCAVATORS (9/04-) (014-50) - Rework, Upp Frame (Breaker) (Nibbler and Breaker) (Extra and Breaker) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2422N1668D1 | [1] | REWORK, UPP FRAME | |
| 2. | 2416T23351 | [1] | SUPPORT | KOBBRACKET |
| . . | 2422N1668D2 | [1] | REWORK, UPP FRAME | |
| 5. | 2416P16050 | [1] | BRACKET BRACKET | BRACKET BRACKET |
| 6. | 2416T24691 | [1] | BRACKET BRACKET | BRACKET BRACKET |
| . . | 2422N1670D1 | [1] | REWORK, UPP FRAME | |
| 1. | 2416P16529 | [1] | BRACKET | KOBBRACKET, APPLICABLE: YQU?-? YNU?-? |
| . . | 2416P18706 | [1] | BRACKET, APPLICABLE: YQU?- YNU?- | |
| 3. | 2418T18325 | [1] | PLATE PLATE | PLATE PLATE |
| 4. | 2418T19287 | [1] | PLATE | KOBPLATE |
