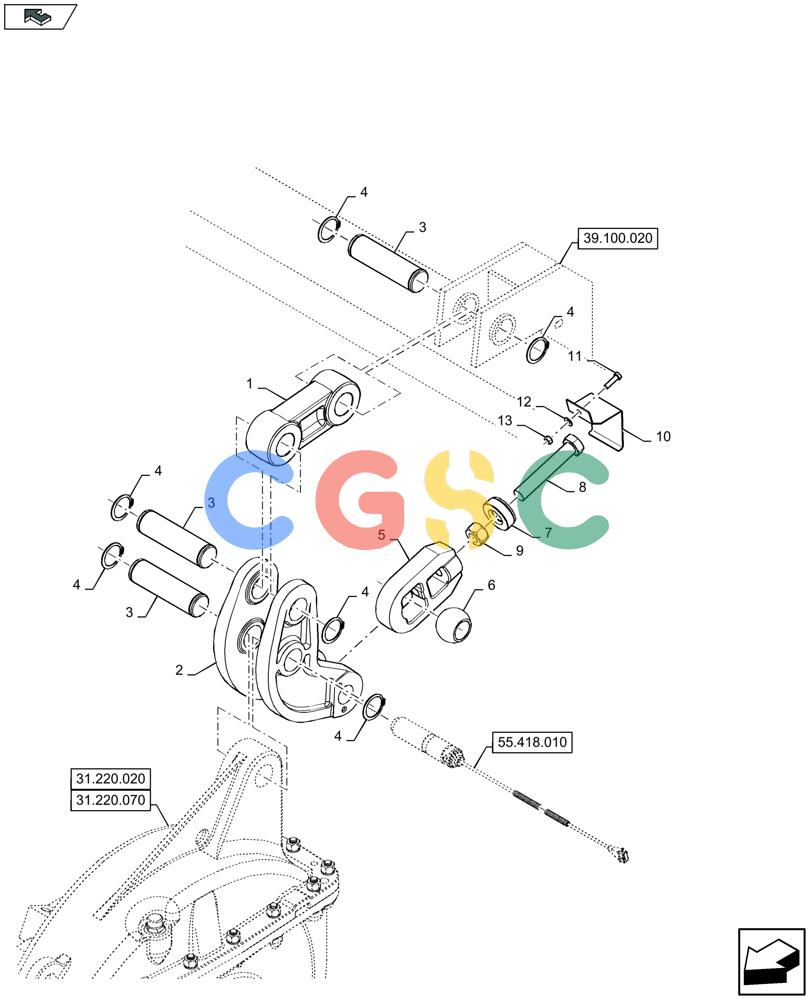

凯斯零件查询(LB324P) - BALER (9/12-) (31.220.010) - PLUNGER, LOAD MEASUREMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84068193
|
[1] |
LEVER
|
ZED
|
| 2. |
84807838
|
[1] |
LEVER
|
ZED
|
| 3. |
87362339
|
[3] |
SHAFT
|
ZED
|
| 4. |
370007
|
[6] |
SNAP RING,M45, Ext
|
NH
|
| 5. |
84185669
|
[1] |
ADJUSTER
|
ZED
|
| 6. |
86508450
|
[1] |
BALL
|
ZED
Superseded by part number: D9NN557AA
|
| 7. |
87673373
|
[1] |
THRUST BEARING,25mm ID x 62mm OD x 22.5mm W
|
ZED
|
| 8. |
86639186
|
[1] |
SCREW,Hex, M24 x 140mm, Cl 10.9
|
FAR
,, Serial Range: -C043
|
| 8. |
84557916
|
[1] |
BOLT
|
ZED
,, Start Serial: D044
|
| 9. |
85700123
|
[1] |
NUT,M24, Cl 8
|
BER
Superseded by part number: 57139
|
| 10. |
87677406
|
[1] |
PROTECTING COVER
|
ZED
|
| 11. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 12. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 13. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
