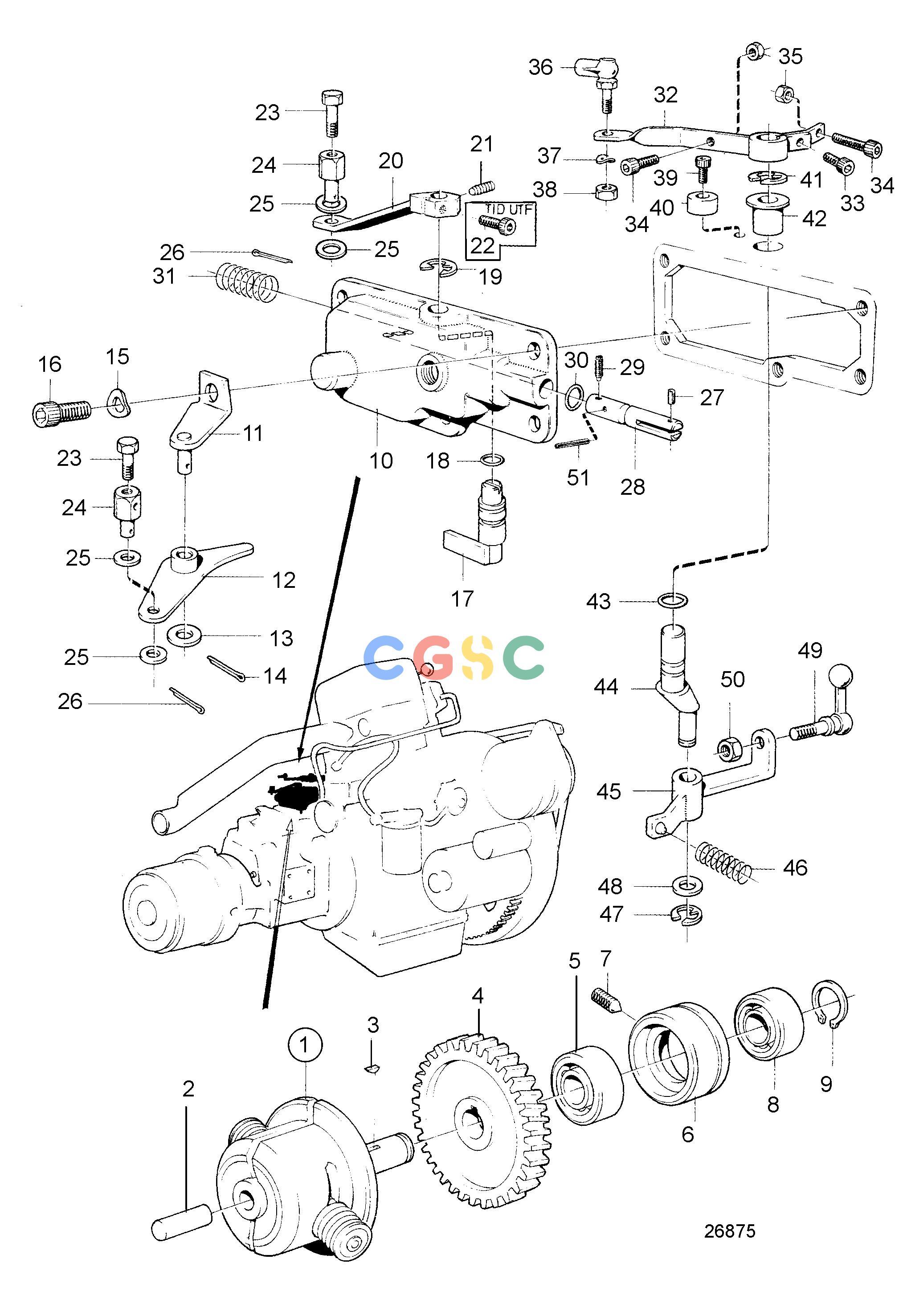

沃尔沃零件查询MD5A; MD5B; MD5CFuel SystemGovernor and Installation Components: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
949 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838378
|
[1] |
Governor
|
|
| 2. |
833678
|
[1] |
Pin
|
|
| 4. |
838362
|
[1] |
Gear
|
|
| 5. |
11009
|
[1] |
Ball bearing
|
|
| 6. |
838075
|
[1] |
Sleeve
|
|
| 7. |
963008
|
[1] |
Set screw
|
See group 2A
|
| 8. |
181180
|
[1] |
Ball bearing
|
|
| 9. |
914449
|
[1] |
Snap ring
|
|
| 11. |
838393
|
[1] |
Anchorage
|
|
| 12. |
838214
|
[1] |
Lever
|
|
| 13. |
941670
|
[1] |
Washer
|
|
| 14. |
907824
|
[1] |
Split pin
|
|
| 15. |
941906
|
[1] |
Spring washer
|
|
| 16. |
942001
|
[1] |
Hex. socket screw
|
L=16mm
|
| 17. |
838354
|
[1] |
Shaft
|
|
| 18. |
955981
|
[1] |
O-ring
|
|
| 19. |
951671
|
[1] |
E-circlip
|
|
| 20. |
838257
|
[1] |
Lever
|
Early production of lever 838087 + screw 955270 are replaced by lever 838257 + screw 949235
|
| 21. |
949235
|
[1] |
Set screw
|
Early production of lever 838087 + screw 955270 are replaced by lever 838257 + screw 949235., Late t
|
| 23. |
192244
|
[2] |
Screw
|
|
| 24. |
3841580
|
[2] |
Cube
|
|
| 25. |
955892
|
[4] |
Washer
|
|
| 26. |
907824
|
[2] |
Split pin
|
|
| 27. |
951950
|
[1] |
Spring pin
|
|
| 28. |
838219
|
[1] |
Shaft
|
|
| 29. |
949330
|
[1] |
Screw
|
|
| 30. |
925052
|
[1] |
O-ring
|
|
| 30. |
838392
|
[1] |
Guide sleeve
|
|
| 31. |
838158
|
[1] |
Spring
|
|
| 32. |
838082
|
[1] |
Lever
|
|
| 33. |
940326
|
[1] |
Hex. socket screw
|
|
| 33. |
941906
|
[1] |
Spring washer
|
|
| 34. |
955272
|
[2] |
Hexagon screw
|
|
| 35. |
955781
|
[2] |
Hexagon nut
|
|
| 36. |
813042
|
[1] |
Ball joint
|
|
| 37. |
941905
|
[1] |
Spring washer
|
|
| 38. |
951784
|
[1] |
Nut
|
|
| 39. |
942001
|
[1] |
Hex. socket screw
|
|
| 40. |
838379
|
[1] |
Stop sleeve
|
|
| 41. |
957193
|
[2] |
Gasket
|
|
| 42. |
838197
|
[1] |
Plug
|
|
| 43. |
925056
|
[1] |
O-ring
|
|
| 44. |
838360
|
[1] |
Shaft
|
|
| 45. |
838361
|
[1] |
Lever
|
|
| 46. |
838157
|
[1] |
Spring
|
|
| 47. |
951668
|
[1] |
E-circlip
|
|
| 47. |
914452
|
[2] |
Snap ring
|
|
| 48. |
955892
|
[1] |
Washer
|
|
| 48. |
955901
|
[1] |
Washer
|
|
| 51. |
951926
|
[1] |
Spring pin
|
MO 6958-
|
