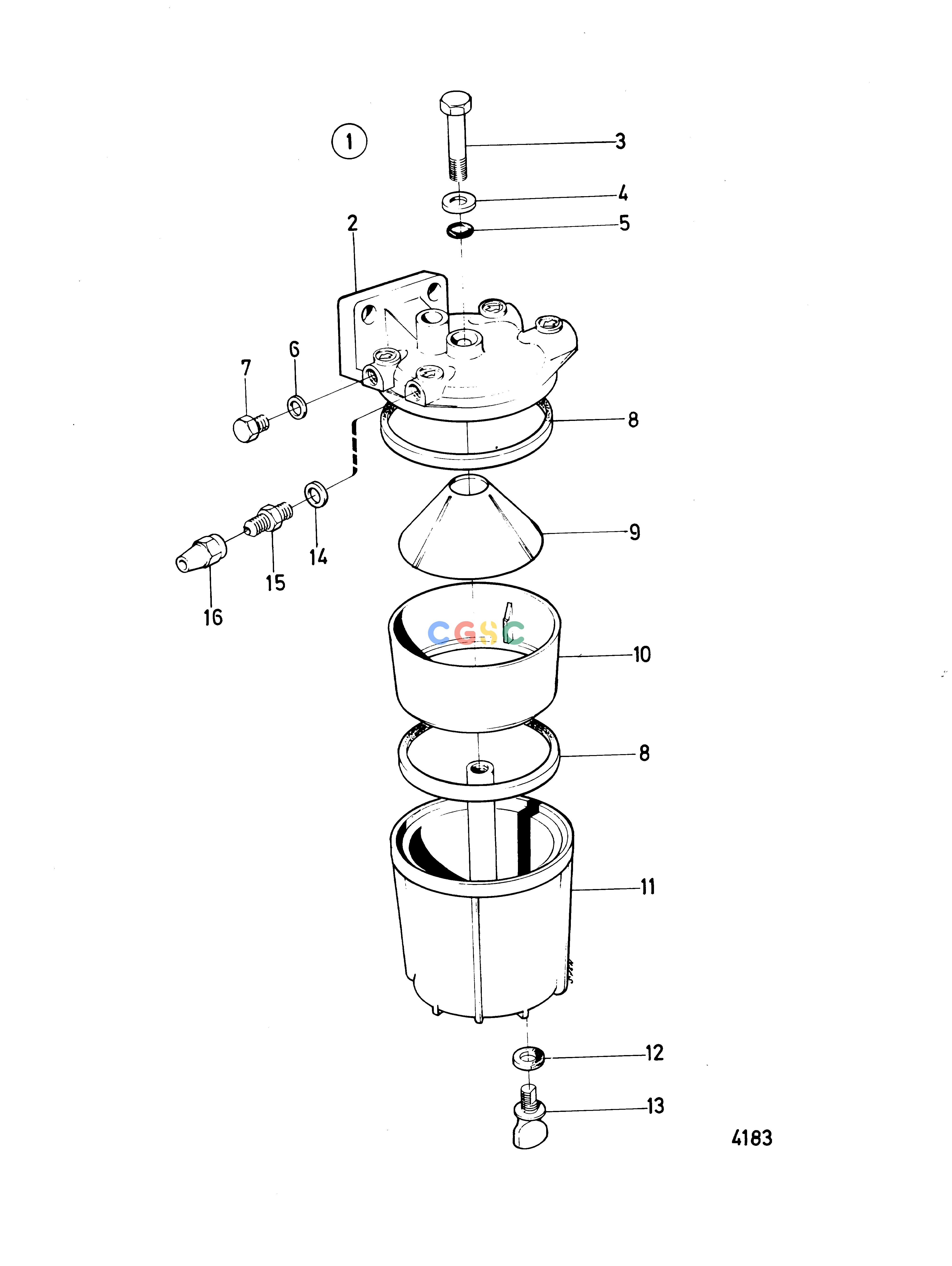

沃尔沃零件查询MD5A; MD5B; MD5CFuel SystemWater SeparatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833971
|
[1] |
Water separator
|
|
| 2. |
|
|
|
|
| 3. |
192545
|
[1] |
Hexagon screw
|
|
| 4. |
955893
|
[1] |
Washer
|
|
| 5. |
236570
|
[1] |
O-ring
|
|
| 6. |
242360
|
[2] |
Washer
|
|
| 7. |
242359
|
[2] |
Plug
|
|
| 8. |
|
|
|
Replaced by 1695000 + 16950001.
|
| 9. |
829666
|
[9] |
Filter insert
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
6643249
|
[1] |
Gasket
|
|
| 13. |
826648
|
[1] |
Plug
|
|
| 14. |
957176
|
[2] |
Gasket
|
|
| 15. |
191397
|
[2] |
Nipple
|
For pipe with D=5/16''.
|
| 15. |
941438
|
[2] |
Nipple
|
For pipe with D=3/8''.
|
| 16. |
954322
|
[2] |
Fitting nut
|
For pipe with D=5/16''.
|
| 16. |
954323
|
[2] |
Fitting nut
|
For pipe with D=3/8''.
|
