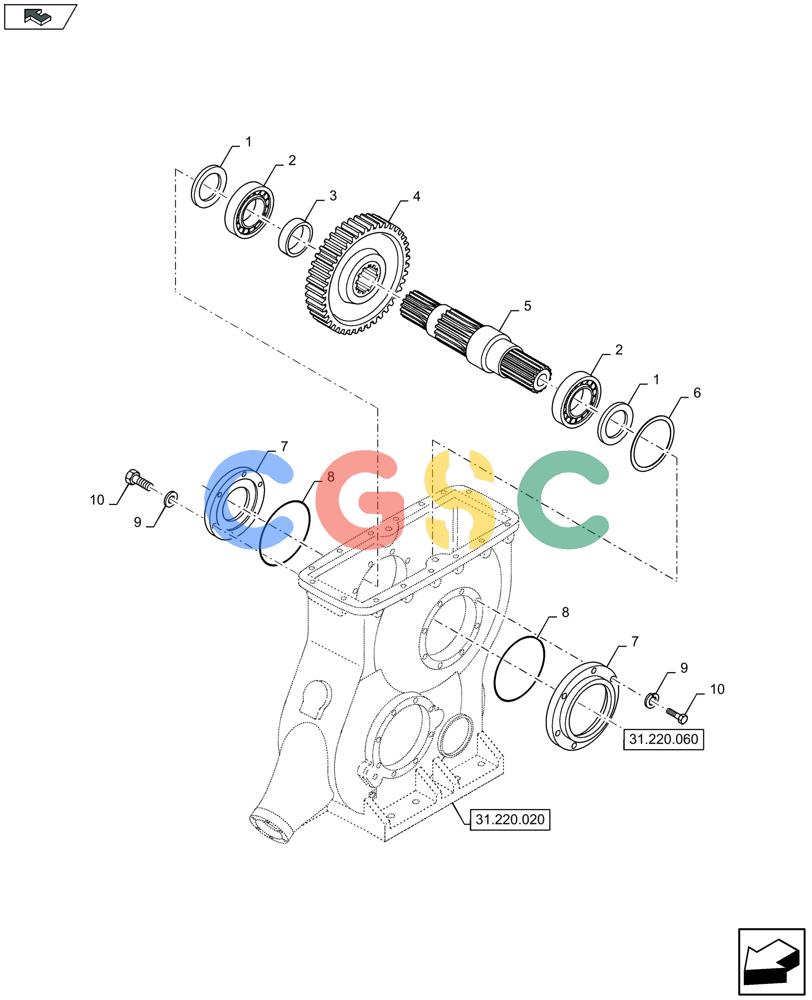

凯斯零件查询(LB324P) - BALER (9/12-) (31.220.050) - MAIN GEARBOX, ARM SHAFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
283 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47361381
|
[2] |
SEALING RING,120mm ID x 150mm OD x 15.5mm Thk
|
ZED
SEALRING
|
| 2. |
84000813
|
[2] |
ROLLER BEARING
|
ZED
Superseded by part number: 24903750
|
| 3. |
87718406
|
[1] |
SPACER
|
ZED
|
| 4. |
84074448
|
[1] |
GEAR
|
ZED
|
| 5. |
47361379
|
[1] |
SHAFT
|
ZED
|
| 6. |
84074470
|
[1] |
SHIM
|
ZED
|
| 7. |
47361380
|
[2] |
COVER
|
ZED
|
| 8. |
84346508
|
[2] |
O-RING,2.62mm Thk x 177.47mm ID
|
ZED
|
| 9. |
412123
|
[16] |
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
|
NH
|
| 10. |
87342014
|
[16] |
BOLT,M12 x 1.75 x 35mm, Class 10.9
|
BN
|
