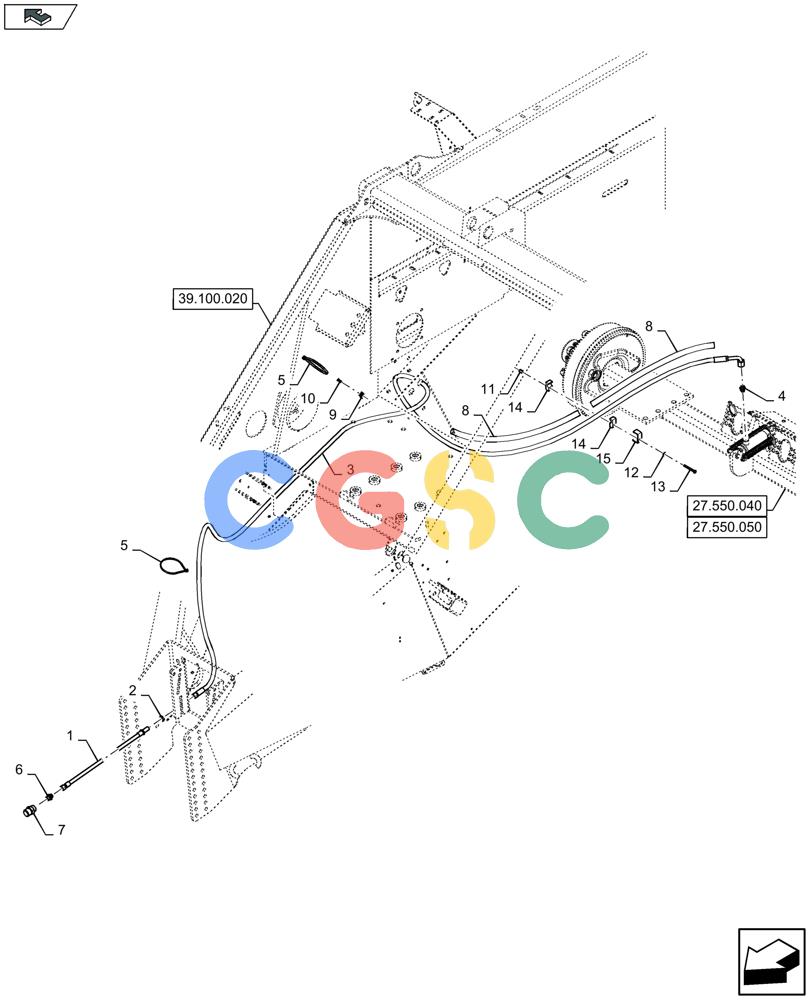

凯斯零件查询(LB324P) - BALER (9/12-) (33.202.010) - HYDRAULIC BRAKES, SINGLE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87492507
|
[1] |
FLEXIBLE HOSE,7.92mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 2. |
87493575
|
[1] |
NUT
|
ZED
|
| 3. |
84449978
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 3. |
48067127
|
[1] |
|
HYDRAULIC HOSE
|
| 4. |
9837622
|
[1] |
HYD CONNECTOR,9/16" JIC x 3/8" BSPP
|
PA
|
| 5. |
84449335
|
[1] |
CABLE TIE,346mm L
|
ZED
|
| 6. |
395019
|
[1] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 7. |
9839028
|
[1] |
HYD CONNECTOR,M18 x 1.5
|
PA
|
| 8. |
9507811
|
[1] |
CONDUIT
|
CUR
Superseded by part number: 9507811BR
|
| 9. |
86590413
|
[2] |
BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk
|
ZED
|
| 10. |
445395
|
[2] |
RIVET,Pop, 4.8mm OD x 18.1mm L
|
IH
|
| 11. |
87716662
|
[1] |
NUT
|
ZED
|
| 12. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 13. |
338413
|
[1] |
BOLT,Hex, M6 x 60mm, Cl 8.8
|
NH
|
| 14. |
433007
|
[2] |
CLAMP
|
ZED
|
| 15. |
433100
|
[1] |
SUPPORT
|
ZED
|
