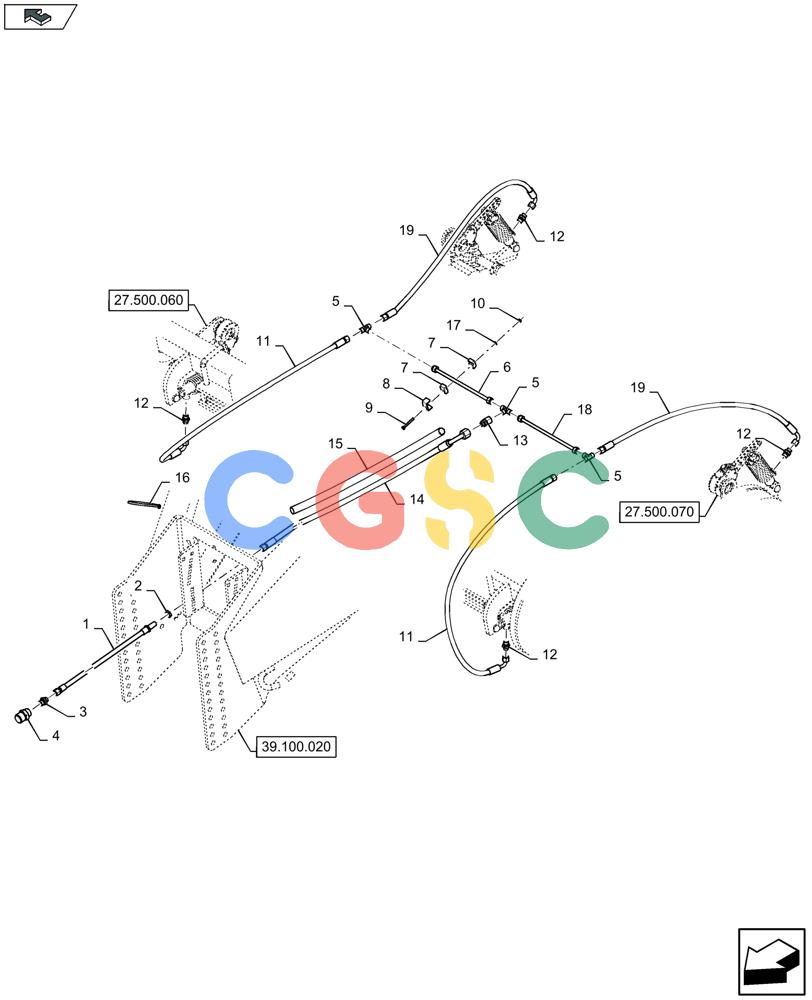

凯斯零件查询(LB324P) - BALER (9/12-) (33.202.020) - HYDRAULIC BRAKES, TANDEM AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
551 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87492507
|
[1] |
FLEXIBLE HOSE,7.92mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 2. |
87493575
|
[1] |
NUT
|
ZED
|
| 3. |
395019
|
[1] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 4. |
9839028
|
[1] |
HYD CONNECTOR,M18 x 1.5
|
PA
|
| 5. |
395472
|
[3] |
3 WAY CONNECTION,M16 x 1.5 x M16 x 1.5 x M16 x 1.5
|
ZED
|
| 6. |
84414258
|
[1] |
HYD TUBE
|
ZED
|
| 7. |
433008
|
[4] |
CLAMP
|
NH
|
| 8. |
433101
|
[2] |
SUPPORT
|
NH
|
| 9. |
120056
|
[2] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 10. |
412152
|
[2] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 11. |
84414260
|
[2] |
HYDRAULIC HOSE
|
ZED
|
| 12. |
9813512
|
[4] |
HYD CONNECTOR
|
ZED
, Serial Range: -C145 Superseded by part number: 89813512
|
| 12. |
2928203
|
[4] |
SOCKET
|
BER
, Start Serial: D146
|
| 13. |
84078124
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5
|
ZED
|
| 14. |
84449978
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 15. |
9507811
|
[1] |
CONDUIT
|
CUR
L= 3.8 M Superseded by part number: 9507811BR
|
| 16. |
84449335
|
[5] |
CABLE TIE,346mm L
|
ZED
|
| 17. |
86588450
|
[2] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 18. |
84414259
|
[1] |
HYD TUBE
|
ZED
|
| 19. |
47371204
|
[2] |
HYDRAULIC HOSE,7.92mm ID x 1450mm L, SAE 100R16
|
ZED
, Start Serial: D146
|
