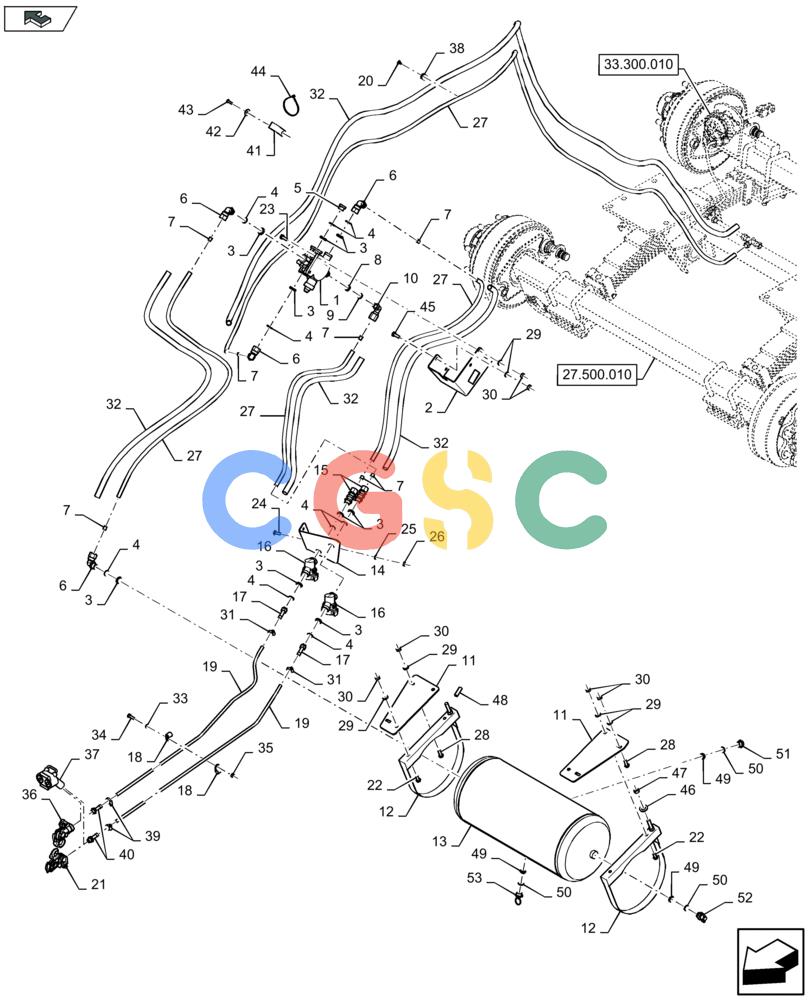

| 1. |
9512544
|
[1] |
BRAKE VALVE
|
ZED
Superseded by part number: 87019852
|
| 2. |
84562071
|
[1] |
U-BRACKET
|
ZED
|
| 3. |
9512529
|
[1] |
O-RING
|
PA
|
| 4. |
9512530
|
[1] |
WASHER, THRUST,22mm ID x 27mm OD x 2.6mm Thk
|
PA
Superseded by part number: 3076153R1
|
| 5. |
9512523
|
[1] |
PLUG
|
PA
|
| 6. |
9512525
|
[4] |
ELBOW
|
PA
|
| 7. |
9512527
|
[7] |
FERRULE
|
PA
|
| 8. |
9512532
|
[1] |
O-RING
|
PA
|
| 9. |
9512533
|
[1] |
WASHER, THRUST,16.1mm ID x 22mm OD x 2.6mm Thk
|
PA
|
| 10. |
84007190
|
[1] |
ELBOW,M16 x 1.5 Male
|
ZED
|
| 11. |
84417904
|
[2] |
PLATE
|
ZED
|
| 11. |
84415666
|
[2] |
PLATE
|
ZED
|
| 12. |
84414378
|
[2] |
CLAMP
|
ZED
|
| 13. |
84414367
|
[1] |
RESERVOIR
|
ZED
|
| 14. |
84415680
|
[1] |
BRACKET
|
ZED
|
| 15. |
9512528
|
[2] |
HYD CONNECTOR
|
PA
|
| 16. |
9512545
|
[2] |
AIR FILTER
|
PA
|
| 17. |
9512531
|
[2] |
HYD CONNECTOR
|
PA
|
| 18. |
431352
|
[2] |
CLAMP,12mm ID, 8.5mm Bolt Hole, P Type
|
ZED
, Serial Range: -C087
|
| 18. |
84352951
|
[1] |
CLAMP
|
ZED
, Start Serial: D088
|
| 19. |
84014198
|
[1] |
HOSE,18mm OD x 3.5mm Thk
|
ZED
L = 10.8 M Superseded by part number: 87389513
|
| 20. |
9512290
|
[3] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 21. |
9512546
|
[1] |
COUPLING BLOCK
|
PA
|
| 22. |
43139
|
[4] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 23. |
43140
|
[24] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 24. |
120038
|
[2] |
CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
NH
, Serial Range: -C087 Superseded by part number: 811-8030
|
| 24. |
308761
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
, Start Serial: D088
|
| 25. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 26. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 27. |
9512535
|
[1] |
HOSE
|
PA
L = 7.9 M Superseded by part number: 87359227
|
| 28. |
9706704
|
[4] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
, Serial Range: -C087
|
| 28. |
86633356
|
[4] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
, Start Serial: D088
|
| 29. |
140045
|
[12] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 30. |
100016
|
[12] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 31. |
150064
|
[2] |
CLAMP
|
ZED
|
| 32. |
9507812
|
[1] |
CONDUIT
|
CUR
L = 7.9 M Superseded by part number: 9507812BR
|
| 33. |
86624184
|
[1] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
, Serial Range: -C087
|
| 34. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
, Serial Range: -C087
|
| 35. |
86629542
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
, Serial Range: -C087
|
| 36. |
9512537
|
[1] |
COUPLING BLOCK
|
PA
|
| 37. |
84017270
|
[1] |
COUPLING BLOCK
|
ZED
|
| 38. |
9827902
|
[4] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
,, Serial Range: -D116087
|
| 38. |
700514
|
[3] |
CLAMP,3.8mm, Coat, M8 Bolt
|
NH
, Start Serial: D088
|
| 40. |
9512534
|
[2] |
HYD CONNECTOR
|
PA
,, Start Serial: D016
|
| 41. |
9837593
|
[1] |
CLAMP
|
ZED
,, Start Serial: D016
|
| 42. |
140182
|
[1] |
WASHER,5.5mm ID x 18mm OD x 2mm Thk
|
ZED
,, Start Serial: D016
|
| 43. |
445395
|
[1] |
RIVET,Pop, 4.8mm OD x 18.1mm L
|
IH
,, Start Serial: D016
|
| 44. |
86566990
|
[1] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
,, Start Serial: D016
|
| 46. |
378246
|
[2] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 47. |
412126
|
[2] |
NUT,M12 x 1.75
|
ZED
, Start Serial: D088
|
| 48. |
291186
|
[1] |
PROTECTION STRIP,9.9mm W
|
NH
L=42MM, Start Serial: D088 Superseded by part number: 47560081, 47560080
|
| 52. |
9512540
|
[1] |
HYD CONNECTOR
|
PA
, Start Serial: D088 Superseded by part number: 443287A1
|
| 53. |
9512541
|
[1] |
DRAIN PLUG
|
PA
, Start Serial: D088
|
