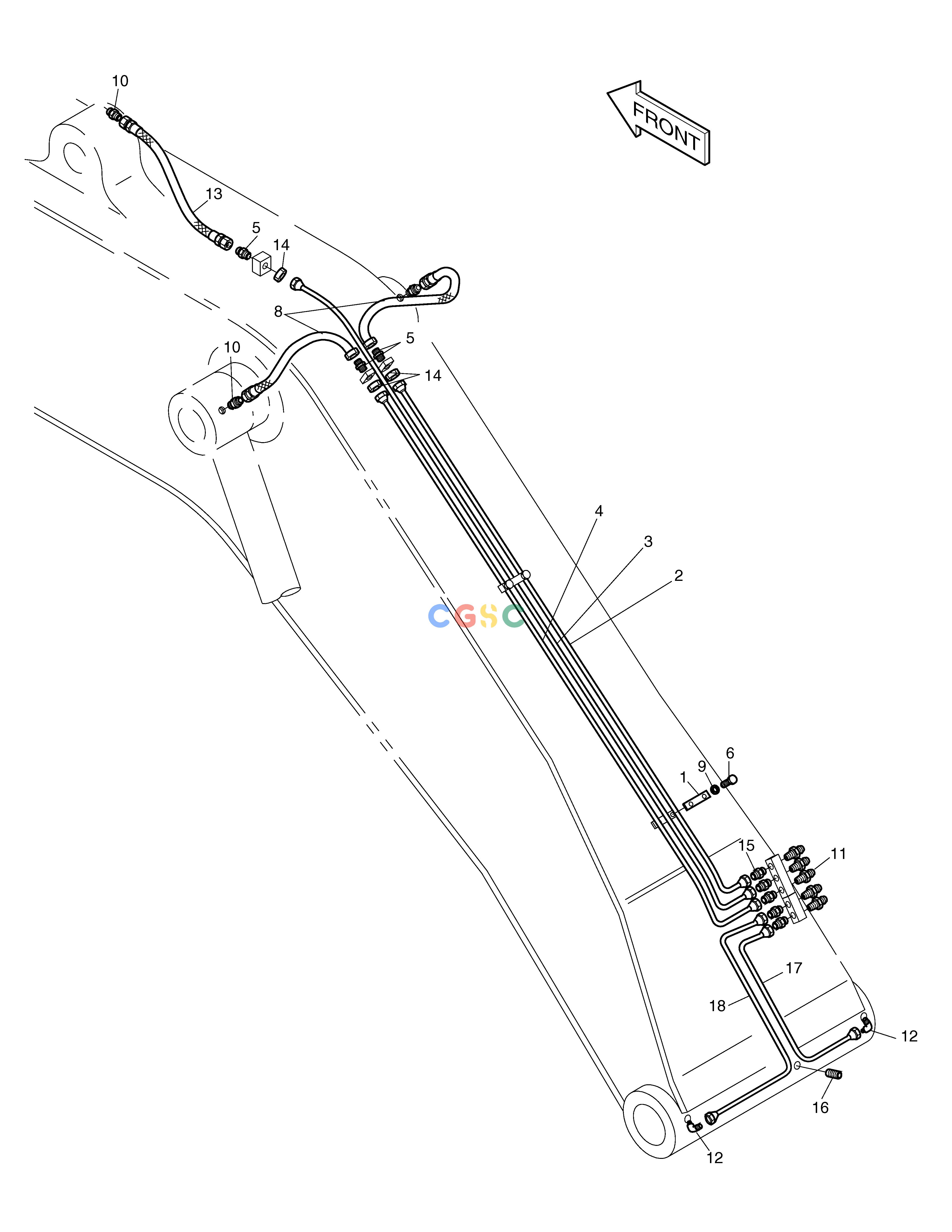

斗山零件查询LUBRICATION PIPING-5.2m BOOM+2.4m ARM SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2071A
|
[-] |
LUBRICATION PIPING
|
|
| 1. |
2124-1625
|
[2] |
CLAMP;PIPE
|
|
| 10. |
2181-1110D30
|
[3] |
ADAPTER
|
|
| 11. |
S6710052
|
[5] |
NIPPLE;GREASE
|
|
| 12. |
2181-1925
|
[3] |
ELBOW
|
|
| 13. |
2184-1045D90
|
[1] |
HOSE PF1/4-800L
|
|
| 14. |
S4032833
|
[3] |
NUT
|
|
| 15. |
2181-1184
|
[5] |
ADAPTER
|
|
| 16. |
S3524403
|
[1] |
PLUG
|
|
| 17. |
182-00062
|
[1] |
PIPE
|
|
| 18. |
182-00063
|
[1] |
PIPE
|
|
| 2. |
2140-1259B
|
[1] |
PIPE
|
|
| 3. |
2140-1596A
|
[1] |
PIPE
|
|
| 4. |
2140-1261B
|
[1] |
PIPE
|
|
| 5. |
2181-1923D12
|
[3] |
ADAPTER
|
|
| 6. |
S0511553
|
[4] |
BOLT M10X1.5X14
|
|
| 8. |
2184-1045D71
|
[2] |
HOSE PF1/4-860L
|
|
| 9. |
S5102603
|
[4] |
. WASHER
|
|
