斗山零件查询MAIN PIPING-ONE & TWO WAY SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2130
|
[-] |

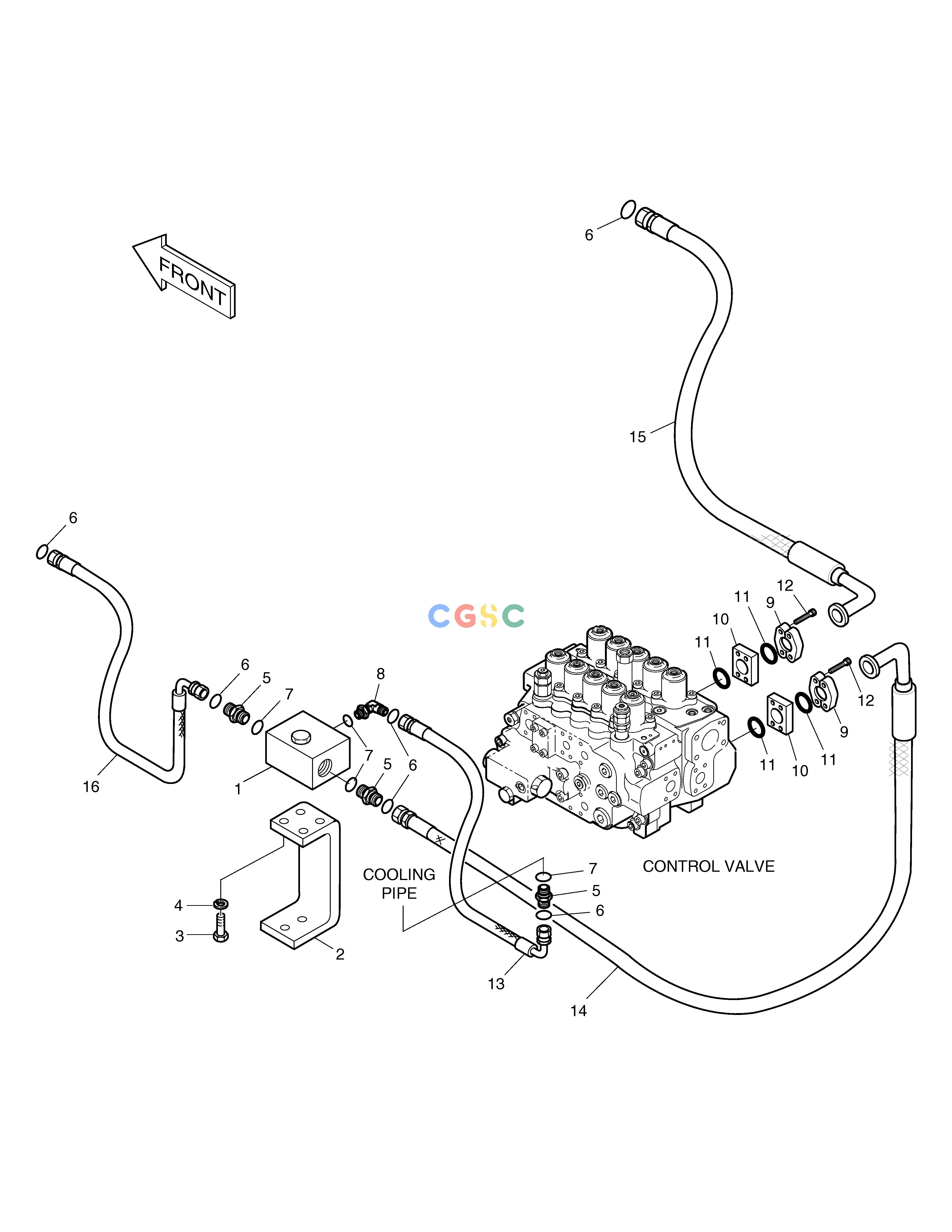

MAIN PIPING-ONE & TWO WAY
|
|
| 1. |
2420-9633
|
[1] |
VALVE;SWITCH
|
|
| 1. |
2420-9633A
|
[1] |
VALVE;SWITCH
|
|
| 10. |
2181-2614
|
[2] |
BLOCK;SPACER
|
|
| 11. |
2180-1026D19
|
[4] |
O-RING
|
|
| 12. |
S2213066
|
[8] |
BOLT;SOCKET M10X1.5X70
|
|
| 13. |
2184-1197D85
|
[1] |
HOSE PF1-650L
|
|
| 14. |
2184-1200D52
|
[1] |
HOSE PF1-1450L
|
|
| 15. |
2184-1200D47
|
[1] |
HOSE PF1-1750L
|
|
| 16. |
2184-1197D86
|
[1] |
HOSE PF1-1700L
|
|
| 2. |
2197-2673
|
[1] |
BRACKET
|
|
| 3. |
S0515253
|
[4] |
. BOLT
|
|
| 4. |
S5102703
|
[4] |
WASHER
|
|
| 5. |
2181-4133D6
|
[3] |
ADAPTER
|
|
| 6. |
S8030161
|
[6] |
O-RING
|
|
| 7. |
S8000291
|
[4] |
O-RING
|
|
| 8. |
2181-2815D1
|
[1] |
ELBOW
|
|
| 9. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
