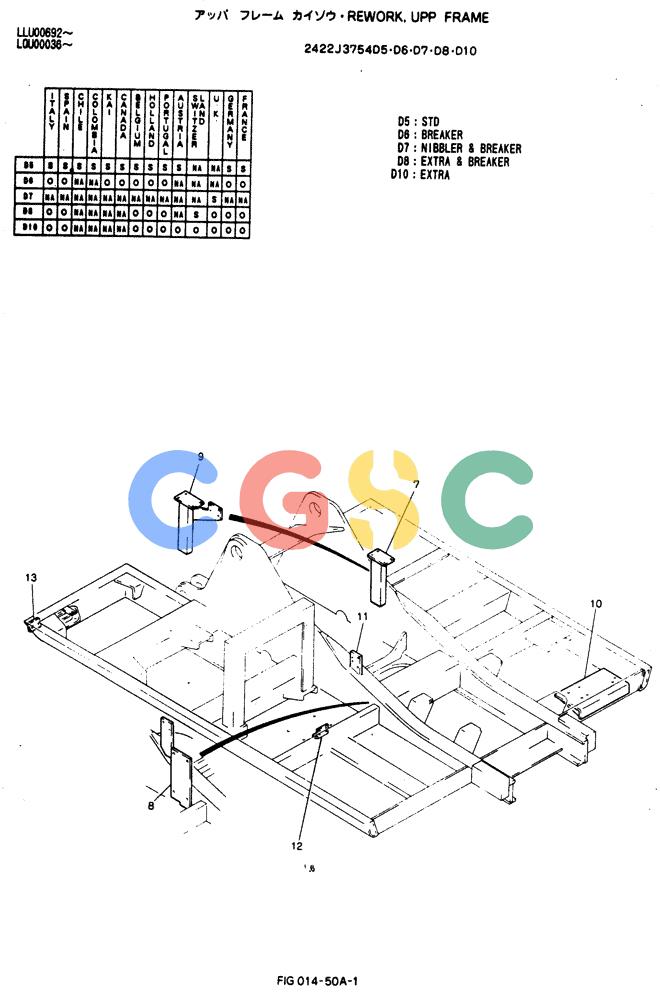

神钢零件查询(BREAKER) - NIBBLER AND BREAKER ATTACHMENT - SK220LC EXCAVATORS (9/04-) (014-50A) - Rework, Upp Frame Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2422J3754D5 | [1] | REWORK, UPP FRAME | REWORK, UPP FRAME |
| 13. | 2416T28860 | [1] | BLOCK, TAPPED | |
| . . | 2422J3754D6 | [1] | REWORK, UPP FRAME | |
| 7. | 2416T23447 | [1] | U-BRACKET | KOBBRACKET |
| . . | 2422J3754D7 | [1] | REWORK, UPP FRAME | |
| 8. | 2416P16186 | [1] | BRACKET | KOB |
| 9. | 2416T23464 | [1] | BRACKET | KOB |
| . . | 2422J3754D8 | [1] | REWORK, UPP FRAME | |
| 10. | 2416P18706 | [1] | BRACKET | |
| 11. | 2418T18325 | [1] | PLATE | PLATE |
| 12. | 2418T19287 | [1] | PLATE | KOB |
| . . | 2422J3754D10 | [1] | REWORK, UPP FRAME | |
