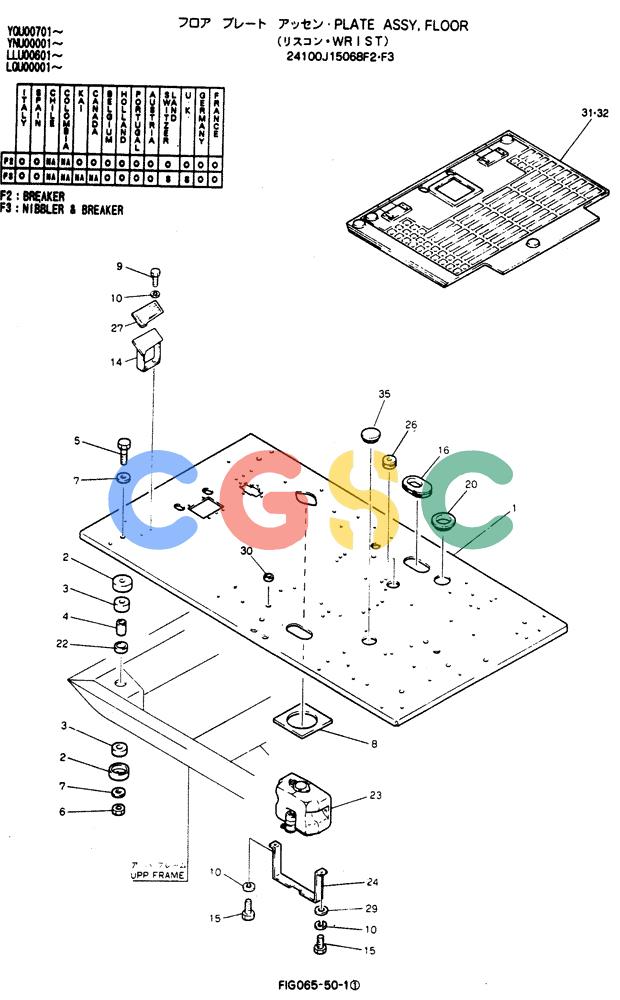

神钢零件查询(BREAKER) - NIBBLER AND BREAKER ATTACHMENT - SK220LC EXCAVATORS (9/04-) (065-50) - Plate Assy, Floor (Breaker, Nibbler and Breaker) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
310 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J15068F2 | [1] | PLATE ASSY, FLOOR | |
| . . | 24100J15068F3 | [1] | PLATE ASSY, FLOOR | |
| 1. | 2427J3144 | [1] | PLATE, FLOOR, APPLICABLE: LLU00601-00634 LQU00001-00015 | |
| . . | 2427J3195 | [1] | PLATE, FLOOR, APPLICABLE: LLU00535- LQU00016 | PLATE, FLOOR, APPLICABLE: LLU00535- LQU00016 |
| 2. | 2414T2855 | [8] | COVER | KOB |
| 3. | 2416Z539 | [8] | RUBBER SLEEVE | KOBRUBBER, CUSHION |
| 4. | 2418T9226D7 | [4] | SPACER | KOB |
| 5. | ZS18C16100 | [4] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| 7. | ZW16H16000 | [8] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 8. | 2479Z1919 | [1] | INSULATOR | KOB |
| 9. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 14. | 2429P576D1 | [1] | STEP | KOB |
| 15. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 16. | 2427Z1529 | [2] | RUBBER SLEEVE | KOBRUBBER |
| 20. | 2420Z1339 | [1] | GROMMET | KOB |
| 22. | 2418Z740 | [4] | RUBBER RING | KOBRING, RUBBER |
| 23. | 2427U900 | [1] | TANK | KOBWASHER |
| 24. | 2416T27504 | [1] | SUPPORT | KOB Superseded by part number: YE03M01045P1 |
| 26. | 2420Z1330 | [1] | GROMMET | KOB |
| 27. | 2414T2880 | [1] | COVER | KOB |
| 29. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 30. | 2405T1749 | [1] | BUSHING | KOB |
| 31. | 2427U1499 | [1] | MAT, FLOOR, Remarks: (F2 ONLY) | |
| 32. | 2427U1433D2 | [1] | MAT, FLOOR, Remarks: (F3 ONLY) | |
| 35. | 2420Z1617 | [1] | PLUG | KOB |
