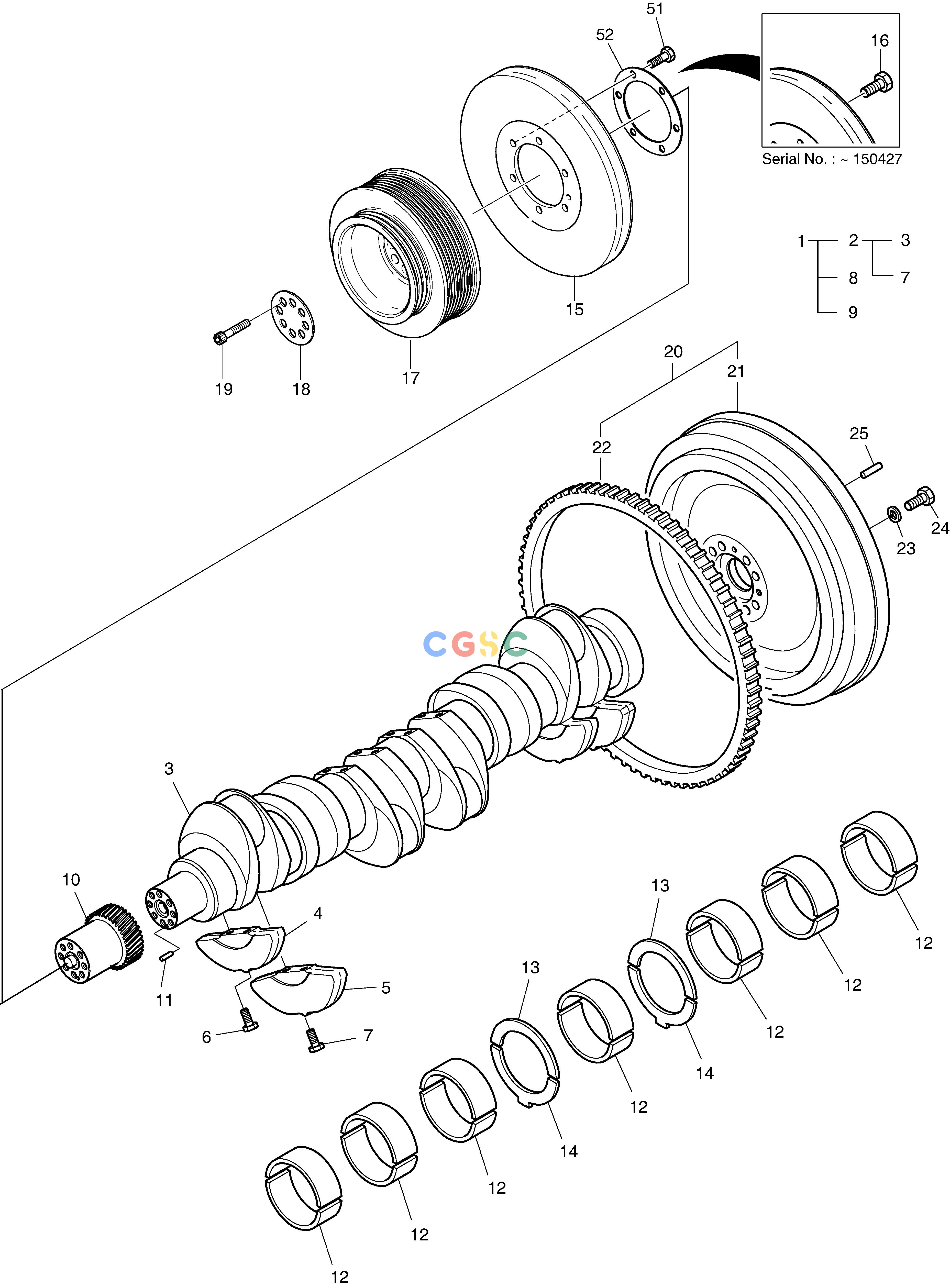

斗山零件查询CRANK SHAFT ASS'Y SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
197 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.02101-7541A
|
[1] |
CRANK SHAFT ASS'Y
|
65.02101-7541B
|
| 1. |
65.02101-7541B
|
[1] |
CRANKSHAFT ASS'Y
|
|
| 10. |
65.02115-0008B
|
[1] |
GEAR;CRANK SHAFT
|
|
| 11. |
06.22022-0912
|
[1] |
PIN;DOWEL
|
|
| 12. |
65.01110-6055A
|
[7] |
METAL;MAIN STD
|
|
| 12. |
65.01110-6068A
|
[7] |
METAL;MAIN 0.25
|
|
| 12. |
65.01110-6069A
|
[7] |
METAL;MAIN 0.50
|
|
| 12. |
65.01110-6070A
|
[7] |
METAL;MAIN 0.75
|
|
| 13. |
65.01150-0017A
|
[2] |
WASHER;THRUST
|
|
| 13. |
65.01150-0048A
|
[2] |
WASHER;THRUST 0.25
|
|
| 13. |
65.01150-0049A
|
[2] |
WASHER;THRUST 0.50
|
|
| 14. |
65.01150-0018B
|
[2] |
WASHER;THRUST
|
|
| 14. |
65.01150-0052B
|
[2] |
WASHER;THRUST 0.25
|
|
| 14. |
65.01150-0053B
|
[2] |
WASHER;THRUST 0.50
|
|
| 15. |
65.02201-7033
|
[1] |
DAMPER;VISCOUS
|
|
| 15. |
65.02201-7032
|
[1] |
DAMPER;VIBRATION
|
65.02201-7033
|
| 16. |
06.01913-3215
|
[6] |
BOLT ASS'Y M10X25
|
65.90020-0062B
|
| 16. |
65.90020-0062B
|
[6] |
BOLT;HEX M10X20
|
|
| 17. |
65.02601-0180
|
[1] |
PULLEY;V-BELT
|
|
| 18. |
|
[-] |
|
06.02106-0622
|
| 18. |
65.90701-0088
|
[1] |
WASHER
|
|
| 18. |
65.90720-0022
|
[1] |
WASHER
|
65.90701-0088
|
| 19. |
06.02106-0623
|
[8] |
BOLT;SOCKET HEAD
|
|
| 19. |
06.02106-0622
|
[8] |
BOLT;SOCKET HEAD
|
|
| 2. |
65.02101-7054A
|
[1] |
CRANK SHAFT ASS'Y
|
65.02101-7054B
|
| 2. |
65.02101-7054B
|
[1] |
CRANK SHAFT ASS'Y
|
|
| 20. |
65.02301-5103
|
[1] |
FLYWHEEL ASS'Y
|
|
| 21. |
65.02301-0249
|
[1] |
FLYWHEEL
|
|
| 22. |
65.02310-0011B
|
[1] |
GEAR;STARTER RING
|
|
| 23. |
06.16731-2110
|
[8] |
WASHER;SPRING
|
|
| 24. |
65.90001-0084
|
[8] |
BOLT;HEX. M14X1.5X40
|
|
| 25. |
06.22022-1010
|
[1] |
PIN ; DOWEL
|
|
| 3. |
65.02101-0054
|
[1] |
SHAFT;CRANK
|
|
| 3. |
65.02101-0054A
|
[1] |
SHAFT;CRANK
|
|
| 4. |
65.02110-0014
|
[4] |
WEIGHT;BALANCE
|
|
| 4. |
65.02110-0014E
|
[4] |
WEIGHT;COUNTER
|
|
| 5. |
65.02110-0013
|
[4] |
WEIGHT;BALANCE
|
|
| 5. |
65.02110-0013E
|
[4] |
WEIGHT;COUNTER
|
|
| 51. |
120121-00071
|
[6] |
BOLT
|
|
| 52. |
120808-00786
|
[1] |
|
|
| 6. |
65.90430-0012B
|
[8] |
BOLT;CRANK SHAFT
|
|
| 7. |
65.90430-0013B
|
[8] |
BOLT;CRANK SHAFT
|
|
| 8. |
65.02101-0057
|
[1] |
CRANK SHAFT ASS'Y
|
65.02101-0057A
|
| 8. |
65.02101-0057A
|
[1] |
SHAFT;CRANK
|
|
| 9. |
65.02101-0060
|
[1] |
CRANK SHAFT ASS'Y
|
65.02101-0060A
|
| 9. |
65.02101-0060A
|
[1] |
CRANK SHAFT ASS'Y
|
|
