斗山零件查询CYLINDER BLOCK SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
739 次

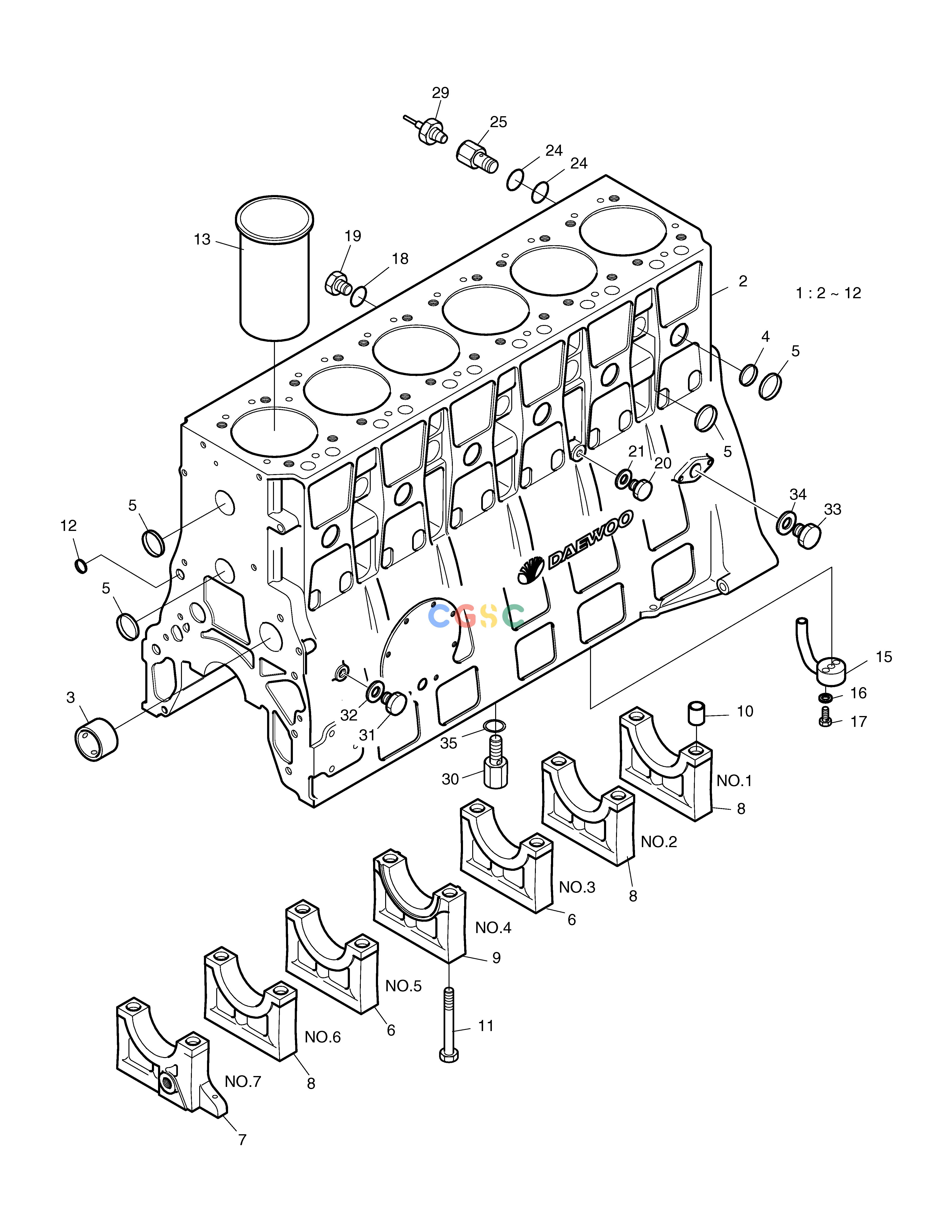

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01101-6212
|
[1] |
CYLINDER BLOCK ASS'Y
|
65.01101-6212A
|
| 1. |
65.01101-6212A
|
[1] |
CYLINDER BLOCK ASS'Y
|
|
| 1. |
65.01101-6068A
|
[1] |
CYLINDER BLOCK ASS'Y
|
|
| 10. |
65.91710-0035
|
[14] |
CAP;BEARING(NO.7)
|
65.91710-0035B
|
| 10. |
65.91710-0035B
|
[14] |
RING;LOCATING
|
|
| 11. |
65.90020-0036B
|
[14] |
BOLT;BEARING CAP
|
|
| 12. |
65.91606-0041
|
[2] |
. PLUG;CORE
|
|
| 13. |
65.01201-0072
|
[6] |
LINER;CYLINDER
|
65.01201-0072A
|
| 13. |
65.01201-0072A
|
[6] |
LINER;CYLINDER
|
|
| 15. |
65.01601-6002
|
[6] |
NOZZLE;OIL SPRAY
|
|
| 16. |
06.16044-0208
|
[12] |
WASHER;SPRING
|
|
| 17. |
65.90001-0126
|
[12] |
BOLT;HEX.
|
|
| 18. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 19. |
65.90310-0136
|
[1] |
SCREW;PLUG
|
|
| 2. |
65.01101-0212
|
[1] |
BLOCK;CYLINDER
|
|
| 2. |
65.01101-0212A
|
[1] |
BLOCK;CYLINDER
|
|
| 20. |
65.90310-0137
|
[1] |
SCREW;PLUG M16X1.5X20
|
|
| 21. |
06.56190-0708
|
[1] |
RING;SEAL
|
|
| 24. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 25. |
65.98150-0002
|
[1] |
ADAPTER
|
|
| 29. |
65.27441-7007
|
[1] |
SWITCH;OIL PRESSURE
|
|
| 3. |
65.04410-0016
|
[4] |
BUSH;CAM SHAFT
|
|
| 30. |
65.05405-7021
|
[1] |
RELIEF VALVE ASS'Y
|
|
| 31. |
65.90310-0131
|
[1] |
SCREW;PLUG
|
|
| 32. |
06.56190-0712
|
[1] |
RING;SEAL
|
|
| 33. |
65.90310-0149A
|
[1] |
SCREW;PLUG M26X1.5
|
|
| 34. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 35. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 4. |
65.90302-0048
|
[6] |
. PLUG,CORE
|
|
| 5. |
06.15091-0326
|
[15] |
PLUG;CORE
|
|
| 6. |
65.01105-1158E
|
[2] |
CAP;BEARING(3.5)
|
|
| 6. |
65.01105-1158F
|
[2] |
CAP;BRARING(NO. 3.5)
|
|
| 7. |
65.01105-1157F
|
[1] |
CAP;BEARING(7)
|
|
| 7. |
65.01105-1157G
|
[1] |
CAP;BRARING(NO. 7)
|
|
| 8. |
65.01105-1161
|
[3] |
CAP;BEARING(1.2.6)
|
|
| 8. |
65.01105-1161A
|
[3] |
CAP;BRARING(NO. 1.2.6)
|
|
| 9. |
65.01105-1159E
|
[1] |
CAP;BEARING(THRUST)
|
|
| 9. |
65.01105-1159F
|
[1] |
CAP;BEARING
|
|
