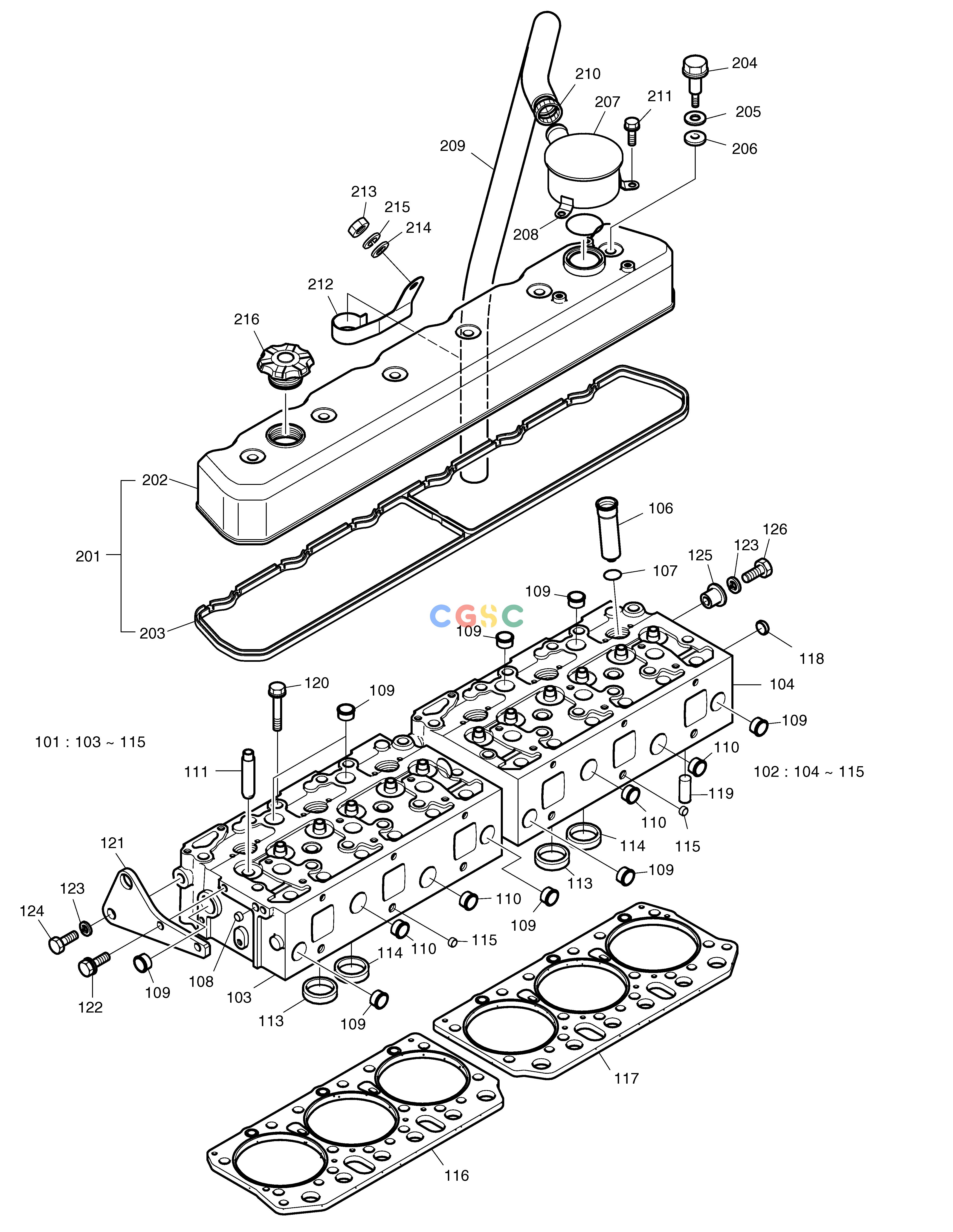

斗山零件查询CYLINDER HEAD SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.03101-6053E
|
[1] |
CYLINDER HEAD ASS'Y(FRONT)
|
65.03101-6053G
|
| 101. |
65.03101-6053G
|
[1] |
CYLINDER HEAD ASS'Y(FRONT)
|
65.03101-6053H
|
| 101. |
65.03101-6053H
|
[1] |
CYLINDER HEAD ASS'Y(FRONT)
|
65.03101-6082A
|
| 101. |
|
[-] |
|
65.03101-6083A
|
| 101. |
|
[-] |
|
65.06301-6084
|
| 101. |
|
[-] |
|
65.06903-0028
|
| 101. |
65.03101-6082A
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 102. |
65.03101-6054E
|
[1] |
CYLINDER HEAD ASS'Y(REAR)
|
65.03101-6054F
|
| 102. |
65.03101-6054F
|
[1] |
CYLINDER HEAD ASS'Y(REAR)
|
65.03101-6054G
|
| 102. |
65.03101-6054G
|
[1] |
CYLINDER HEAD ASS'Y(REAR)
|
65.03101-6054H
|
| 102. |
65.03101-6054H
|
[1] |
CYLINDER HEAD ASS'Y(REAR)
|
65.03101-6083A
|
| 102. |
|
[-] |
|
65.03101-6082A
|
| 102. |
|
[-] |
|
65.06301-6084
|
| 102. |
|
[-] |
|
65.06903-0028
|
| 102. |
65.03101-6083A
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 103. |
65.03101-0003D
|
[1] |
HEAD;CYLINDER
|
65.03101-0003F
|
| 103. |
65.03101-0003F
|
[1] |
HEAD;CYLINDER
|
|
| 103. |
65.03101-0003G
|
[1] |
HEAD;CYLINDER
|
|
| 103. |
65.03101-1064
|
[1] |
HEAD;CYLINDER
|
|
| 104. |
65.03101-0004D
|
[1] |
HEAD;CYLINDER
|
|
| 104. |
65.03101-0004E
|
[1] |
HEAD;CYLINDER
|
|
| 104. |
65.03101-0004F
|
[1] |
HEAD;CYLINDER
|
|
| 104. |
65.03101-0004G
|
[1] |
HEAD;CYLINDER
|
|
| 104. |
65.03101-1065
|
[1] |
HEAD;CYLINDER
|
|
| 106. |
65.03205-0002
|
[3] |
NOZZLE;TUBE
|
|
| 106. |
65.03205-0002
|
[3] |
NOZZLE;TUBE
|
|
| 107. |
65.96501-0069
|
[3] |
O-RING
|
|
| 107. |
65.96501-0069
|
[3] |
O-RING
|
|
| 108. |
65.90302-0041
|
[9] |
. PLUG;CORE
|
|
| 108. |
65.90302-0041
|
[9] |
. PLUG;CORE
|
|
| 109. |
65.91001-0002
|
[1] |
. PLUG
|
|
| 109. |
65.91001-0002
|
[1] |
. PLUG
|
|
| 110. |
65.90302-0042
|
[2] |
. PLUG;CORE
|
|
| 110. |
65.90302-0042
|
[2] |
. PLUG;CORE
|
|
| 111. |
65.03201-1008E
|
[6] |
GUIDE;VALVE
|
65.03201-1008F
|
| 111. |
65.03201-1008F
|
[6] |
GUIDE;VALVE
|
|
| 111. |
65.03201-1008E
|
[6] |
GUIDE;VALVE
|
65.03201-1008F
|
| 111. |
65.03201-1008F
|
[6] |
GUIDE;VALVE
|
|
| 113. |
65.03203-1042
|
[3] |
SEAT;VALVE(EXHAUST)
|
|
| 113. |
65.03203-1042
|
[3] |
SEAT;VALVE(EXHAUST)
|
|
| 114. |
65.03203-1041
|
[3] |
SEAT;VALVE(INTAKE)
|
|
| 114. |
65.03203-1041
|
[3] |
SEAT;VALVE(INTAKE)
|
|
| 115. |
65.90302-0049
|
[3] |
PLUG;CORE
|
|
| 115. |
65.90302-0049
|
[3] |
PLUG;CORE
|
|
| 116. |
65.03901-0053
|
[1] |
GASKET;HEAD(FRONT)
|
65.03901-0063
|
| 116. |
65.03901-0063
|
[1] |
GASKET;HEAD(FRONT)
|
65.03901-0063A
|
| 116. |
65.03901-0063A
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 117. |
65.03901-0054
|
[1] |
GASKET;HEAD(REAR)
|
65.03901-0064
|
| 117. |
65.03901-0064
|
[1] |
GASKET;CYLINDER HEAD(REAR)
|
65.03901-0064A
|
| 117. |
65.03901-0064A
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 118. |
65.91001-0002
|
[2] |
. PLUG
|
65.91001-0013
|
| 118. |
65.91001-0013
|
[2] |
AVSEAL
|
|
| 119. |
06.22022-0907
|
[4] |
. PIN;DOWEL
|
|
| 120. |
65.90020-0069
|
[28] |
BOLT;CYL. HEAD
|
65.90021-0001A
|
| 120. |
65.90021-0001A
|
[28] |
BOLT;COLLARED HEX.
|
|
| 121. |
65.41520-0003
|
[1] |
HANGER
|
|
| 122. |
06.01913-3217
|
[1] |
BOLT ASS'Y M10X30
|
|
| 123. |
06.16731-2110
|
[2] |
WASHER;SPRING
|
|
| 124. |
06.01734-4411
|
[1] |
BOLT;HEX. M14X1.5X30
|
|
| 125. |
65.91701-0275
|
[1] |
SPACER
|
|
| 126. |
06.01494-4408
|
[1] |
BOLT;HEX. M14X1.5X45
|
|
| 201. |
65.03401-6046A
|
[1] |
CYLINDER HEAD COVER ASS'Y
|
65.03401-6046B
|
| 201. |
|
[-] |
|
65.90020-0074
|
| 201. |
|
[-] |
|
65.90701-0202
|
| 201. |
|
[-] |
|
65.03905-0023
|
| 201. |
65.03401-6046B
|
[1] |
CYLINDER HEAD COVER ASS'Y
|
|
| 202. |
65.03401-0048B
|
[1] |
COVER;CYINDER HEAD
|
|
| 203. |
65.03905-0020
|
[1] |
PACKING
|
|
| 204. |
65.90020-0012
|
[6] |
BOLT;HEX.
|
|
| 204. |
65.90020-0074
|
[6] |
BOLT;COLLARED HEX.
|
|
| 205. |
65.90701-0052
|
[6] |
WASHER
|
|
| 205. |
65.90701-0202
|
[6] |
WASHER;PLATE
|
|
| 206. |
65.03905-0017A
|
[6] |
GASKET
|
|
| 206. |
65.03905-0023
|
[6] |
GASKET;CYL. HEAD COVER
|
65.03905-0023A
|
| 206. |
65.03905-0023A
|
[6] |
GASKET;CYLINDER HEAD COVER MOUNTIN
|
|
| 207. |
65.01801-5099
|
[1] |
HOUSING;BREATHER
|
65.01801-5099A
|
| 207. |
65.01801-5099A
|
[1] |
HOUSING;BREATHER
|
65.01801-5099B
|
| 207. |
65.01801-5099B
|
[1] |
HOUSING;BREATHER
|
|
| 208. |
65.96501-0033B
|
[1] |
O-RING
|
|
| 209. |
65.96301-0301
|
[1] |
HOSE;RUBBER
|
|
| 210. |
06.67020-0105
|
[1] |
CLAMP
|
|
| 211. |
06.01923-3113
|
[3] |
BOLT ASS`Y M8X20
|
|
| 212. |
65.97401-0164
|
[1] |
CLIP;BREATHER HOSE
|
|
| 213. |
06.11063-8214
|
[1] |
. NUT
|
|
| 214. |
06.15010-2311
|
[1] |
WASHER
|
|
| 215. |
06.16731-2107
|
[1] |
WASHER
|
|
| 216. |
65.01810-5007
|
[1] |
CAP;OIL FILLER
|
|
