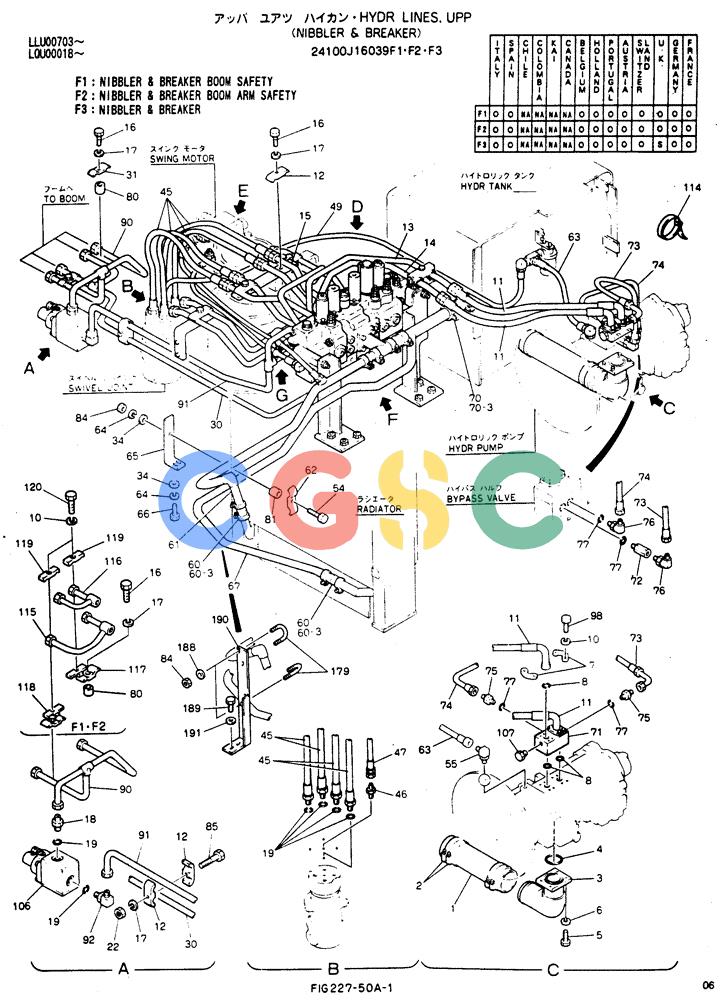

| . . | 24100J16039F1 | [1] | HYDR LINES, UPP | |
| . . | 24100J16039F2 | [1] | HYDR LINES, UPP | |
| . . | 24100J1F039F3 | [1] | HYDR LINES, UPP | |
| 1. | 2444R1071D1 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 2. | ZC15X10500 | [4] | CLIP | KOBCLIP |
| 3. | 2418P23745 | [1] | TUBE | KOBTUBE |
| 4. | ZD11G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 5. | ZS23C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 6. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 7. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 8. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 10. | ZW22X10000 | [18] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, F1, F2 Only Superseded by part number: ZW26X10000 |
| . . | ZW22X10000 | [16] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, (F3 Only) Superseded by part number: ZW26X10000 |
| 11. | 2444Z2323D9 | [2] | FLEXIBLE HOSE | KOBHOSE, APPLICABLE: LLU00703-00829 LQU00018-00043 Superseded by part number: 2444R1172D3 |
| . . | 2444R1172D3 | [2] | HOSE | KOBHOSE, APPLICABLE: LLU00830- LQU00044- |
| 12. | ZC36X28014 | [4] | CLAMP | KOBDouble Line -- 100x38x16mm (Ø30mm) |
| 13. | 2418P26605 | [1] | TUBE TUBE | TUBE TUBE |
| 14. | 2418P26606 | [1] | TUBE | KOBTUBE Superseded by part number: 2418P22208 |
| 15. | 2416T26634 | [1] | BLOCK | KOBBLOCK, TAPPED |
| 16. | ZS13C12060 | [4] | SCREW | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 17. | ZW22X12000 | [17] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 18. | ZA23F28016 | [14] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 19. | ZD12P02900 | [21] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 20. | 2436U2816F1 | [1] | CONTROL VALVE | KOBVALVE, CONTROL, Remarks: SEE (C. P. M) Superseded by part number: 2436U2816F2 |
| 21. | 2420T4331D4 | [3] | SCREW,M12 x 1.75 x 150mm | KOBM12x1.75x150mm |
| 22. | ZN13C12010 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 24. | ZS13C16055 | [4] | SCREW | KOBM16x2.0x55mm |
| 25. | ZW22X16000 | [6] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 27. | ZA23F28012 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 28. | ZD12P02400 | [11] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 30. | 2418P12279 | [1] | RIGID TUBE | KOBTUBE |
| 31. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm), (F3 ONLY) |
| 32. | 2416P14905 | [1] | SUPPORT | KOBSUPPORT |
| 34. | ZW11X08000 | [3] | WASHER | KOBID 09 x OD 17 x Th 1.6mm Superseded by part number: ZW16X08000 |
| 35. | ZA33F22012 | [3] | ELBOW | KOBELBOW |
| 36. | 2418P26607 | [1] | TUBE TUBE | TUBE TUBE |
| 37. | 2418T23797 | [1] | TUBE 5 TUBE | TUBE 5 TUBE |
| 38. | 2418P18112 | [1] | RIGID TUBE | KOBTUBE |
| 39. | 2418T23798 | [1] | TUBE TUBE | TUBE TUBE |
| 40. | 2432Z467 | [2] | CLAMP | KOBCLAMP |
| 41. | 2405T1717 | [2] | BUSHING | KOBBUSHING |
| 42. | ZS13C12100 | [1] | SCREW | KOBCAPSCREW Superseded by part number: ZS18C12100 |
| 45. | 2444R1173D2 | [4] | FLEXIBLE HOSE | KOBHOSE |
| 46. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 47. | ZX21M08110 | [1] | FLEXIBLE HOSE | KOB1100mm Long (43-19/64 in) |
| 48. | ZH52X08000 | [1] | TEE,30 Degree Fl, Male, PF 1/2" x 1/2" x 1/2", O-Ring | KOB(Incls. O-Ring 237-6008) |
| 49. | ZX21M08150 | [1] | HOSE | KOB1500mm Long (59-3/64 in) |
| 50. | ZS13C12055 | [3] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 51. | ZH22X12016 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 52. | 2444Z2517D2 | [1] | FLEXIBLE HOSE | KOBHOSE, APPLICABLE: LLU00703-00829 LQU00018-00043 Superseded by part number: 2444R1170D4 |
| . . | 2444R1170D4 | [1] | HOSE | KOBHOSE, APPLICABLE: LLU00830- LQU00044- |
| 53. | 2444Z2418 | [1] | ELBOW | KOBELBOW |
| 54. | ZS13C08050 | [1] | SCREW | KOBM08x1.25x50mm Superseded by part number: ZS18C08050 |
| 55. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 56. | ZX32M12135 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 57. | 2418P22207 | [1] | TUBE | KOBTUBE |
| 58. | ZD11G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 59. | ZS13C10030 | [4] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 60. | R44P0089D13 | [3] | COUPLING | KOBCOUPLING Superseded by part number: ZG15F04500 |
| 60-3. | R44P0089D13S3 | [2] | GASKET | KOBGASKET |
| 61. | 2418P23146 | [1] | RIGID TUBE | KOBTUBE |
| 62. | 2432T2388 | [1] | CLAMP CLAMP | CLAMP CLAMP |
| 63. | ZX21M12040 | [1] | FLEXIBLE HOSE | KOB400mm Long (15-3/4 in) |
| 61. | ZW22X08000 | [7] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 65. | 2416T24091 | [1] | BRACKET | |
| 66. | ZS13C08035 | [2] | SCREW | KOBM08x1.25x35mm Superseded by part number: ZS18C08035 |
| 67. | 241BP22214 | [1] | TUBE | |
| 68. | R44P0089D8 | [1] | ELASTIC JOINT,101mm ID x 148.8mm OD x 165.1mm L | KOBCOUPLING |
| 68-3. | R44P0089D8S3 | [2] | GASKET | KOBGASKET |
| 69. | 2436R393S4 | [1] | VALVE | KOBVALVE, BYPASS |
| 70. | R44P0089D4 | [1] | COUPLING | KOBCOUPLING Superseded by part number: ZG15F05100 |
| 70-3. | R44P0089D4S3 | [2] | GASKET,50.85mm ID x 67.20mm OD | KOBGASKET |
| 71. | 2418P27522 | [1] | FLANGE | KOBFLANGE |
| 72. | 2444T2958 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 73. | 2444Z3359D5 | [1] | FLEXIBLE HOSE | KOBHOSE, APPLICABLE: LLU00783-00829 LQU00018-00043 Superseded by part number: 2444R1168D1 |
| . . | 2444R1168D1 | [1] | HOSE | KOBHOSE, APPLICABLE: LLU00830- LQU00944- |
| 74. | 2444R2486D2 | [1] | HOSE | KOBHOSE |
| 75. | ZA23F18008 | [2] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 76. | ZA33F18008 | [2] | ELBOW | KOB |
| 77. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 80. | 2418T24411D2 | [2] | SPACER | KOBSPACER |
| 81. | 2418T24324D4 | [1] | SPACER | |
| 82. | 2432R225D12 | [2] | CLAMP | KOBClamp, Single -- ID 31 x 69.5mm Long Superseded by part number: ZC46X31014 |
| 83. | ZW13H16000 | [6] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 84. | ZN13C08007 | [5] | NUT | KOBM08x1.25mm, APPLICABLE: LLU00703-00811 LQU00018-00045 Superseded by part number: ZN18C08007 |
| . . | ZN13C08007 | [13] | NUT | KOBM08x1.25mm, APPLICABLE: LLU00812- LQU00046 Superseded by part number: ZN18C08007 |
| 85. | ZS13C12065 | [1] | SCREW | KOBM12x1.75x65mm Superseded by part number: ZS18C12065 |
| 86. | ZS18C12030 | [11] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 87. | ZW26X12000 | [9] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 88. | ZW16X12000 | [6] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 89. | ZN18C12010 | [5] | NUT | KOBM12x1.75mm |
| 90. | 2418P23469 | [1] | TUBE | KOBTUBE |
| 91. | 2418P23468 | [1] | RIGID TUBE | KOBTUBE |
| 92. | ZA33F28016 | [2] | ELBOW | KOBELBOW |
| 96. | 2416P16381 | [1] | BRACKET | |
| 97. | 2416P18274 | [1] | BRACKET | |
| 98. | 2420T4333D10 | [8] | SCREW | KOBCAPSCREW |
| 101. | 2418P26609 | [2] | TUBE TUBE | TUBE TUBE |
| 102. | 2418P26608 | [2] | TUBE | KOBTUBE |
| 104. | ZW13H12000 | [2] | WASHER | KOBWASHER |
| 106. | 2436U2623F2 | [1] | VALVE | KOBVALVE, HOLDING, Remarks: SEE (C. P. M) |
| 107. | ZE72X08000 | [1] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| 112. | 2444Z4130 | [1] | TEE | KOBTEE, Remarks: (F2 ONLY) |
| 113. | 2444R1119D140 | [1] | HOSE | KOB1400mm Long (55-1/8 in), (F2 ONLY) |
| 114. | 2432Z290 | [7] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 115. | 2418P24401 | [1] | RIGID TUBE | KOBTUBE, Remarks: F1, F2 ONLY |
| 116. | 2418P19073 | [1] | RIGID TUBE | KOBTUBE, Remarks: F1, F2 ONLY |
| 117. | 2416P12753 | [1] | SUPPORT | KOBSUPPORT, Remarks: F1, F2 ONLY |
| 118. | 2416P12752 | [1] | SUPPORT | KOBSUPPORT, Remarks: F1, F2 ONLY |
| 119. | 2432T2340 | [2] | CLAMP | KOBF1, F2 ONLY |
| 120. | ZS13C10050 | [2] | SCREW | KOBM10x1.50x50mm, Remarks: F1, F2 ONLY Superseded by part number: ZS18C10050 |
| 123. | ZA23F22012 | [2] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 125. | 2418P28844 | [1] | RIGID TUBE | KOBTUBE |
| 126. | ZA23B22000 | [1] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 127. | 2418P28838 | [1] | RIGID TUBE | KOBTUBE |
| 128. | ZA23H22012 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 129. | ZA53B22000 | [1] | TEE | KOBTEE |
| 130. | 2418T25155 | [1] | RIGID TUBE | KOBTUBE |
| 132. | 2436U1198F1 | [1] | CONTROL VALVE | KOBVALVE, CONTROL, Remarks: SEE (C. P. M) Superseded by part number: YN30V00011F3 |
| 136. | 2416P12072 | [1] | U-BRACKET | KOBBRACKET |
| 137. | ZS13C12040 | [4] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040 |
| 140. | 2418P28839 | [1] | CLAMP | KOBTUBE |
| 141. | 2432T4355 | [2] | CLAMP | KOBCLAMP |
| 142. | ZS13C12110 | [1] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 143. | 2418P28840 | [1] | RIGID TUBE | KOBTUBE |
| 144. | ZA33F28012 | [3] | ELBOW | KOBELBOW |
| 145. | 24100P1005F1 | [1] | VALVE | KOBVALVE, SELECTOR Superseded by part number: 24100P1005F3 |
| 146. | ZS13C08018 | [4] | SCREW | KOBM08x1.25x18mm Superseded by part number: ZS18C08020 |
| 148. | 2436U1207F1 | [1] | VALVE | KOBVALVE ASSY |
| 149. | 24100P1739F2 | [1] | VALVE PRESSURE RELIE | KOBVALVE, SELECTOR |
| 150. | 2418T25156 | [1] | RIGID TUBE | KOBTUBE |
| 151. | 2418P28841 | [1] | RIGID TUBE | KOBTUBE |
| 152. | 2444Z2348 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 153. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 154. | 2446U233F1 | [1] | FILTER ASSY | KOBFILTER, LINE |
| 155. | ZS18C12110 | [2] | SCREW,Hex, M12 x 110mm | KOBM12x1.75x110mm |
| 158. | 2416T13239 | [1] | U-BRACKET | KOBBRACKET |
| 160. | 2418P28842 | [1] | RIGID TUBE | KOBTUBE |
| 162. | ZA23F35020 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 163. | 2418P28843 | [1] | RIGID TUBE | KOBTUBE |
| 164. | 2444Z3560D1 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 165. | ZE12X20000 | [2] | CLAMP | KOBCLAMP, HALF |
| 166. | ZS23C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 167. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 168. | 2444Z3554 | [1] | TEE | KOBTEE |
| 169. | ZS13C12130 | [1] | SCREW | KOBM12x1.75x130mm Superseded by part number: ZS18C12130 |
| 170. | 2432P1083 | [1] | LABEL | KOBLABEL |
| 171. | ZT22A05000 | [1] | KEY | KOBScrew -- 05mm |
| 172. | 2432T2326 | [2] | CLAMP | KOBCLAMP |
| 174. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 176. | 2416T27325 | [1] | U-BRACKET | KOBBRACKET |
| 177. | 2416T25554 | [1] | U-BRACKET | KOBBRACKET |
| 178. | 2416T25555 | [1] | U-BRACKET | KOBBRACKET |
| 179. | 2420T2948D5 | [3] | U-BOLT | KOBM08x1.25x ID 45 x 80.5mm Long |
| 180. | ZC27X28012 | [1] | CLAMP | KOBCLAMP Superseded by part number: YN43H01097P1 |
| 181. | ZC27X22012 | [3] | COLLAR | HITCLAMP |
| 182. | ZS13C10060 | [1] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 183. | ZS13C10055 | [3] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 186. | ZN13C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 188. | ZW13H08000 | [4] | WASHER | KOBWASHER, APPLICABLE: LLU00812- LQU00046- |
| 189. | ZS13C10035 | [2] | SCREW | KOBM10x1.50x35mm, APPLICABLE: LLU00812- LQU00646- Superseded by part number: ZS18C10035 |
| 190. | 2416P19377 | [1] | SUPPORT | KOBSUPPORT, APPLICABLE: LLU00812- LQU00046- |
| 191. | ZW13H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm, APPLICABLE: LLU00812- LQU00045- Superseded by part number: ZW16H10000 |
