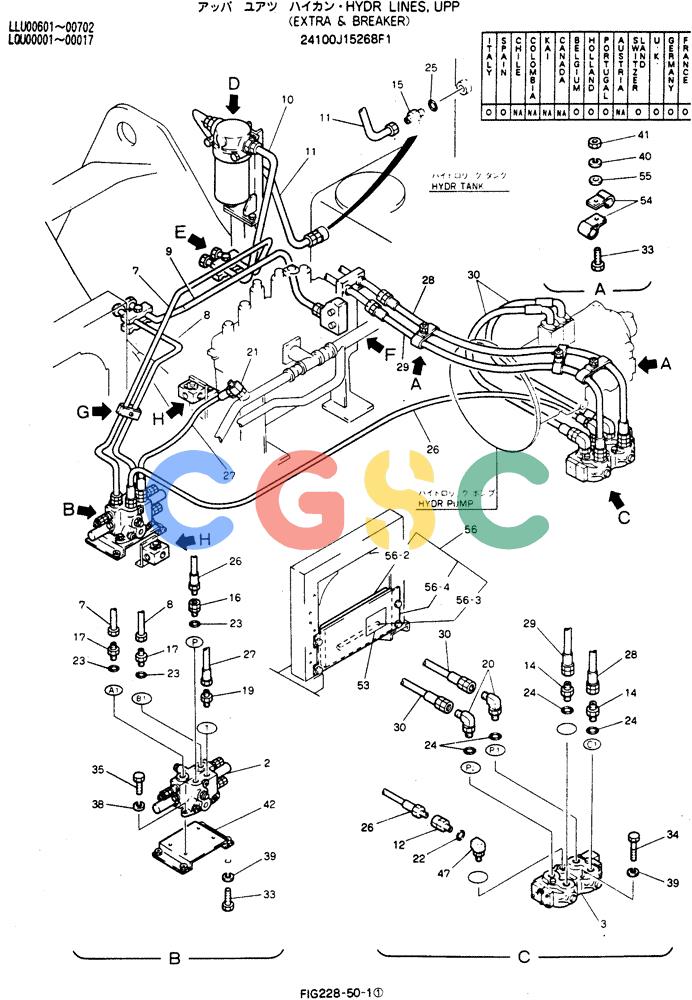

| . . | 24100J15268F1 | [1] | HYDR LINES, UPP | |
| 2. | 2436U1213F1 | [1] | CONTROL VALVE | KOBVALVE, CONTROL, Remarks: SEE (C. P. M) |
| 3. | 2436U1303F1 | [1] | PILOT VALVE | KOBVALVE, DIVIDER, FLOW, Remarks: SEE (C. P. M) |
| 4. | 2436U1207F1 | [1] | VALVE | KOBASSY, Remarks: SEE (C. P. M) |
| 5. | 2446U233F1 | [1] | FILTER ASSY | KOBFILTER, LINE |
| 5-1. | 2446U232S1 | [1] | COVER | KOBHEAD |
| 5-2. | 2446U233S2 | [1] | ELEMENT | KOBASSY |
| 5-3. | 2446U232S3 | [1] | CASE | KOB |
| 5-4. | 2446U233S4 | [1] | PLUG | |
| 5-5. | 2446U233S5 | [1] | VALVE | |
| 5-6. | 2446U233S6 | [1] | SPRING | |
| 5-7. | 2446U233S7 | [1] | PLUG | KOB |
| 5-8. | ZD12P02800 | [1] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 5-9. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 5-10. | ZD11P05000 | [1] | O-RING | KOB |
| 5-11. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 5-12. | 2446U233S12 | [1] | SCREW | KOBCAPSCREW |
| 5-13. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 6. | 2416T13239 | [1] | U-BRACKET | KOBBRACKET |
| 7. | 2418P24507 | [1] | RIGID TUBE | KOBTUBE |
| 8. | 2418P24508 | [1] | TUBE | TUBE |
| 9. | 2418P24509 | [1] | TUBE, APPLICABLE: LLU00601-00634 LQU0001-00015 | TUBE, APPLICABLE: LLU00601-00634 LQU0001-00015 |
| . . | 2418P28885 | [1] | TUBE, APPLICABLE: LLU00635- LQU00016- | TUBE, APPLICABLE: LLU00635- LQU00016- |
| 10. | 2418P24510 | [1] | TUBE, APPLICABLE: LLU00501-00634 LQU00001-00015 | |
| . . | 2418P28886 | [1] | TUBE, APPLICABLE: LLU00635- LQU00016- | TUBE, APPLICABLE: LLU00635- LQU00016- |
| 11. | 2418P22273 | [1] | RIGID TUBE | KOBTUBE, APPLICABLE: LLU00501-00634 LQU00001-00015 |
| . . | 2418P28842 | [1] | RIGID TUBE | KOBTUBE, APPLICABLE: LLU00635- LQU00016- |
| 12. | ZA23H15006 | [1] | HYD CONNECTOR | KOB |
| 13. | ZA23F28012 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 14. | ZA23F28016 | [2] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 15. | ZA23P35020 | [2] | CONNECTOR | |
| 16. | 2444T2535 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 17. | 2444T2952 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 18. | 2444Z2348 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 19. | 2444Z3747 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 20. | ZA33F28016 | [2] | ELBOW | KOB |
| 21. | 2444Z3770 | [1] | TEE | KOB |
| 22. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 23. | ZD12P02400 | [4] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 24. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 25. | ZD12P03800 | [3] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 26. | ZX28N08250 | [1] | FLEXIBLE HOSE | HITHOSE |
| 27. | ZX22M08080 | [1] | HOSE ASSY. | KOB800mm Long (31-1/2 in) |
| 28. | 2444Z2285D15 | [1] | HOSE | KOB |
| 29. | 2444Z2285D12 | [1] | FLEXIBLE HOSE | KOBHOSE, APPLICABLE: LLU00601-00634 LQU00001-00015 |
| . . | 2444R1174D3 | [1] | HOSE | KOBAPPLICABLE: LLU00635- LQU00016- |
| 30. | 2444Z3743D2 | [2] | FLEXIBLE HOSE | KOBHOSE |
| 31. | 2432T2326 | [2] | CLAMP | KOB |
| 32. | 2432T2539 | [2] | CLAMP | |
| 33. | ZS18C12030 | [11] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 34. | ZS13C10090 | [4] | SCREW | KOBM10x1.50x90mm Superseded by part number: ZS18C10090 |
| 35. | Z513C12040 | [3] | CAPSCREW | |
| 36. | ZS18C12110 | [2] | SCREW,Hex, M12 x 110mm | KOBM12x1.75x110mm |
| 37. | ZS13C12130 | [4] | SCREW | KOBM12x1.75x130mm Superseded by part number: ZS18C12130 |
| 38. | ZW22X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 39. | ZW22X12000 | [7] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 40. | ZW26X12000 | [9] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 41. | ZN18C12010 | [5] | NUT | KOBM12x1.75mm |
| 42. | 2416P16221 | [1] | SUPPORT | |
| 43. | ZS13C10050 | [1] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 44. | 2416T20885 | [1] | BLOCK, TAPPED | |
| 45. | ZC37X18112 | [1] | CLAMP | KOB |
| 47. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1 |
| 48. | 2436P231F1 | [3] | VALVE PRESSURE RELIE | KOBVALVE, SELECTOR |
| 48-1. | 2436P232 | [1] | BODY, VALVE | |
| 48-2. | 2436T305 | [1] | VALVE | |
| 48-3. | 2418T8945D3 | [1] | ID 30 x OD 44 x Th 3.2mm | ID 30 x OD 44 x Th 3.2mm |
| 48-4. | ZR16X03000 | [1] | SNAP RING | KOBSNAP RING |
| 48-5. | 2420Z922 | [1] | CAPSCREW | CAPSCREW |
| 48-6. | ZD11G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 48-7. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 48-8. | ZD85G02500 | [1] | BACK-UP RING | KOBRing, Back-Up -- ID 25 x OD 30 x Th 1.25mm |
| 48-9. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 48-10. | ZD75G03000 | [1] | BACK-UP RING | KOBRING, BACK UP |
| 49. | ZS13C08020 | [2] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 50. | ZS13C08025 | [4] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 51. | ZW22X08000 | [6] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 52. | 2432P2450 | [1] | LABEL | KOB |
| 53. | 2432P1052 | [1] | LABEL | LABEL |
| 54. | 2432R225D12 | [6] | CLAMP | KOBSingle -- ID 31 x 69.5mm Long Superseded by part number: ZC46X31014 |
| 55. | ZW16X12000 | [3] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 56. | 2414T4934F2 | [1] | COVER ASSY | |
| 56-2. | 2427Z1454 | [1] | INSULATION, SOUND | |
| 56-3. | 2416Z263D2 | [1] | FOAM INSULATION | KOBSHEET, RUBBER |
| 56-4. | 2414P8764 | [1] | COVER | |
| 57. | 24100J15071F1 | [1] | HYD LINES, UPP, Remarks: P. 221-49 | |
