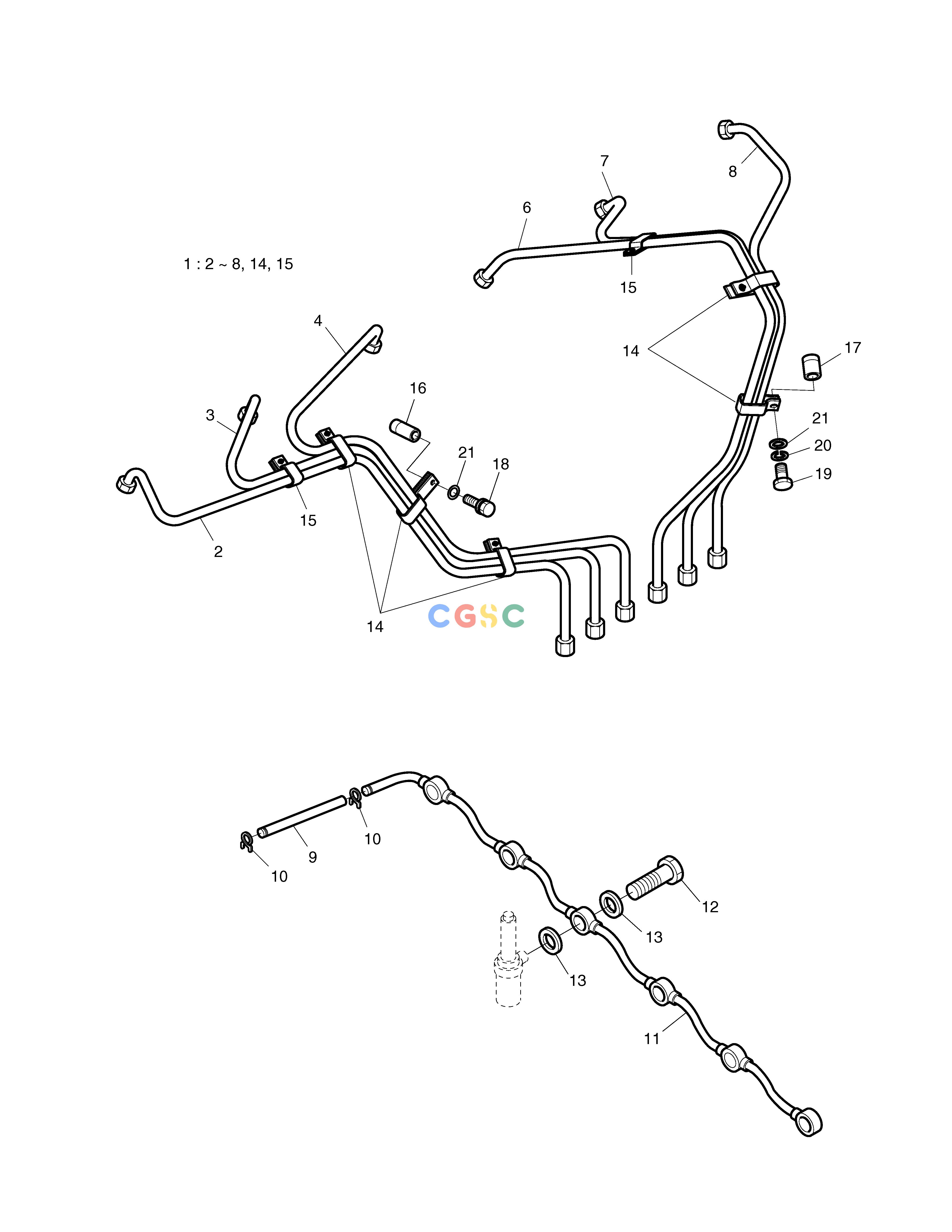

斗山零件查询INJECTION PIPE SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.10301-7006
|
[1] |
INJECTION PIPE ASS'Y(2~8)
|
|
| 10. |
65.97445-0001
|
[2] |
CLAMP;SPRING
|
|
| 11. |
65.12301-5165A
|
[1] |
FUEL PIPE ASS'Y
|
|
| 12. |
65.98150-0042A
|
[6] |
SCREW;HOLLOW
|
|
| 13. |
06.56180-0712
|
[12] |
RING;SEAL
|
|
| 14. |
65.97401-6002A
|
[5] |
. PIPE CLIP ASS`Y 3
|
|
| 15. |
65.97401-6001A
|
[2] |
. PIPE CLIP ASS`Y 2
|
|
| 16. |
65.91701-0470
|
[1] |
SPACER(92mm)
|
|
| 17. |
65.91701-0533
|
[1] |
SPACER(44mm)
|
|
| 18. |
06.01913-3234
|
[1] |
BOLT ASS`Y M10X130
|
|
| 19. |
06.01013-9221
|
[1] |
BOLT;HEX. M10X80
|
|
| 2. |
65.10301-5247
|
[1] |
INJECTION PIPE NO.1
|
|
| 20. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 21. |
06.15010-2312
|
[2] |
WASHER;PLAIN
|
|
| 3. |
65.10301-5248
|
[1] |
INJECTION PIPE NO.2
|
|
| 4. |
65.10301-5249
|
[1] |
INJECTION PIPE NO.3
|
|
| 6. |
65.10301-5295
|
[1] |
INJECTION PIPE NO.4
|
|
| 7. |
65.10301-5296
|
[1] |
INJECTION PIPE NO.5
|
|
| 8. |
65.10301-5297
|
[1] |
INJECTION PIPE NO.6
|
|
| 9. |
65.96330-0132
|
[1] |
HOSE;FUEL
|
|
