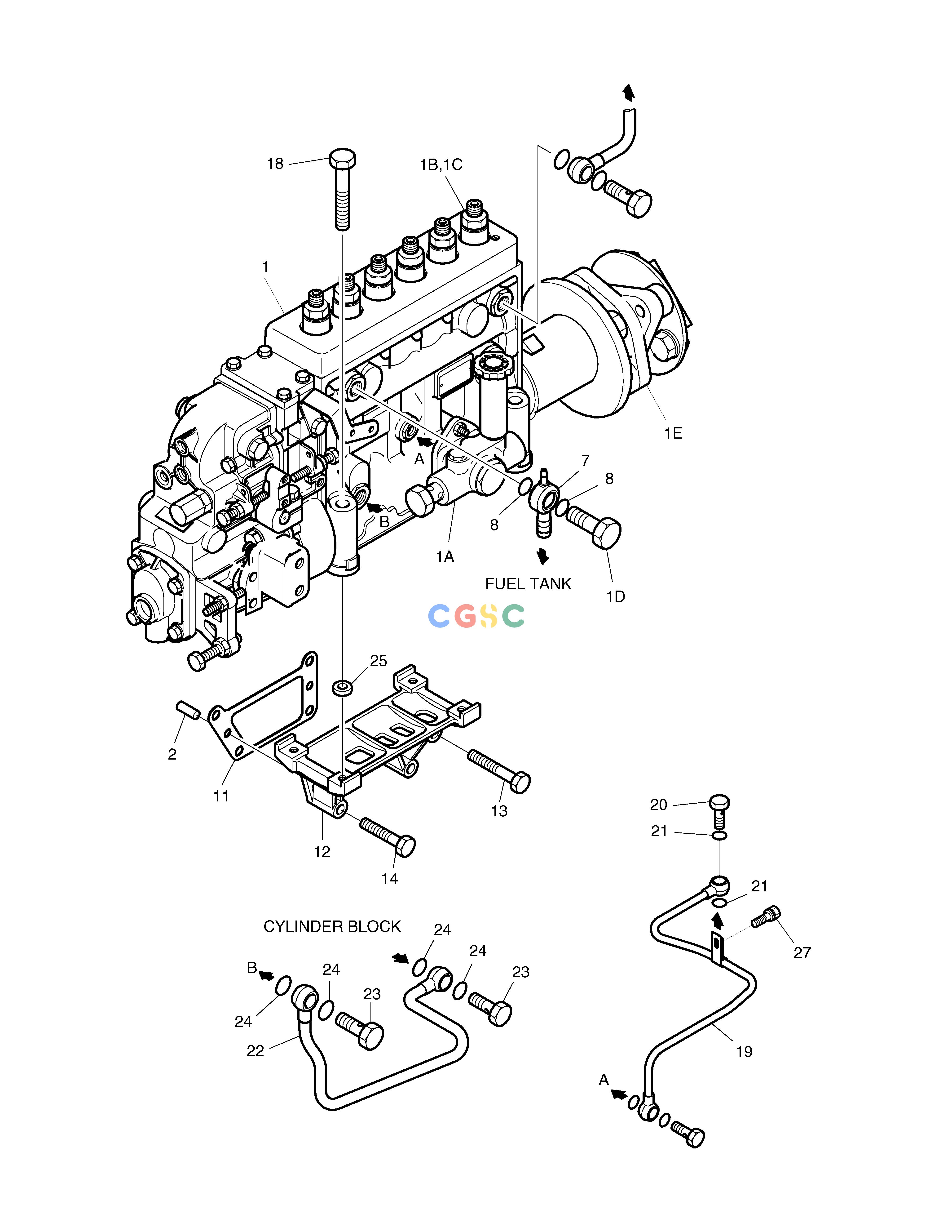

斗山零件查询INJECTION PUMP SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
221 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.11101-7245B
|
[1] |
PUMP;INJECTION
|
|
| 11. |
65.11405-0005
|
[1] |
SHIM 0.10mm
|
|
| 11. |
65.11405-0006
|
[1] |
SHIM 0.15mm
|
|
| 11. |
65.11405-0007
|
[1] |
SHIM 0.20mm
|
|
| 11. |
65.11405-0008
|
[1] |
SHIM 0.50mm
|
|
| 12. |
65.11401-0033
|
[1] |
BRACKET;INJECTION PUMP
|
|
| 13. |
06.01943-3332
|
[2] |
BOLT ASS'Y M12X1.5X110
|
|
| 14. |
06.01943-7324
|
[2] |
BOLT ASS'Y M12X65
|
|
| 18. |
06.01923-3228
|
[4] |
BOLT ASS'Y M10X85
|
|
| 19. |
65.05701-5313
|
[1] |
PIPE;OIL
|
|
| 1A. |
65.12101A7013
|
[1] |
FEED PUMP
|
|
| 1B. |
65.11125-0011S
|
[6] |
PLUNGER
|
|
| 1C. |
65.11108-6012S
|
[6] |
DELIVERY VALVE
|
|
| 1D. |
131424-4420
|
[1] |
VALVE;OVER FLOW
|
|
| 1E. |
65.11305-6004
|
[1] |
COUPLING
|
|
| 2. |
06.22022-1112
|
[2] |
PIN;DOWEL
|
|
| 20. |
65.98150-0052
|
[1] |
SCREW;HOLLOW
|
|
| 20. |
65.98150-0050
|
[1] |
SCREW;HOLLOW
|
|
| 21. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 22. |
65.05701-5624
|
[1] |
PIPE;OIL
|
|
| 23. |
06.78144-2204
|
[2] |
SCREW;HOLLOW
|
|
| 24. |
06.56190-0706
|
[4] |
SEAL RING
|
|
| 25. |
65.11405-0009
|
[4] |
SHIM 0.10mm
|
|
| 25. |
65.11405-0010
|
[4] |
SHIM 0.30mm
|
|
| 25. |
65.11405-0013
|
[4] |
SHIM 0.20mm
|
|
| 27. |
06.01923-2910
|
[1] |
BOLT ASS'Y M6X12
|
|
| 7. |
65.98101-0008
|
[1] |
DOUBLE BANJO UNION ASS'Y
|
|
| 8. |
06.56190-0706
|
[2] |
SEAL RING
|
|
