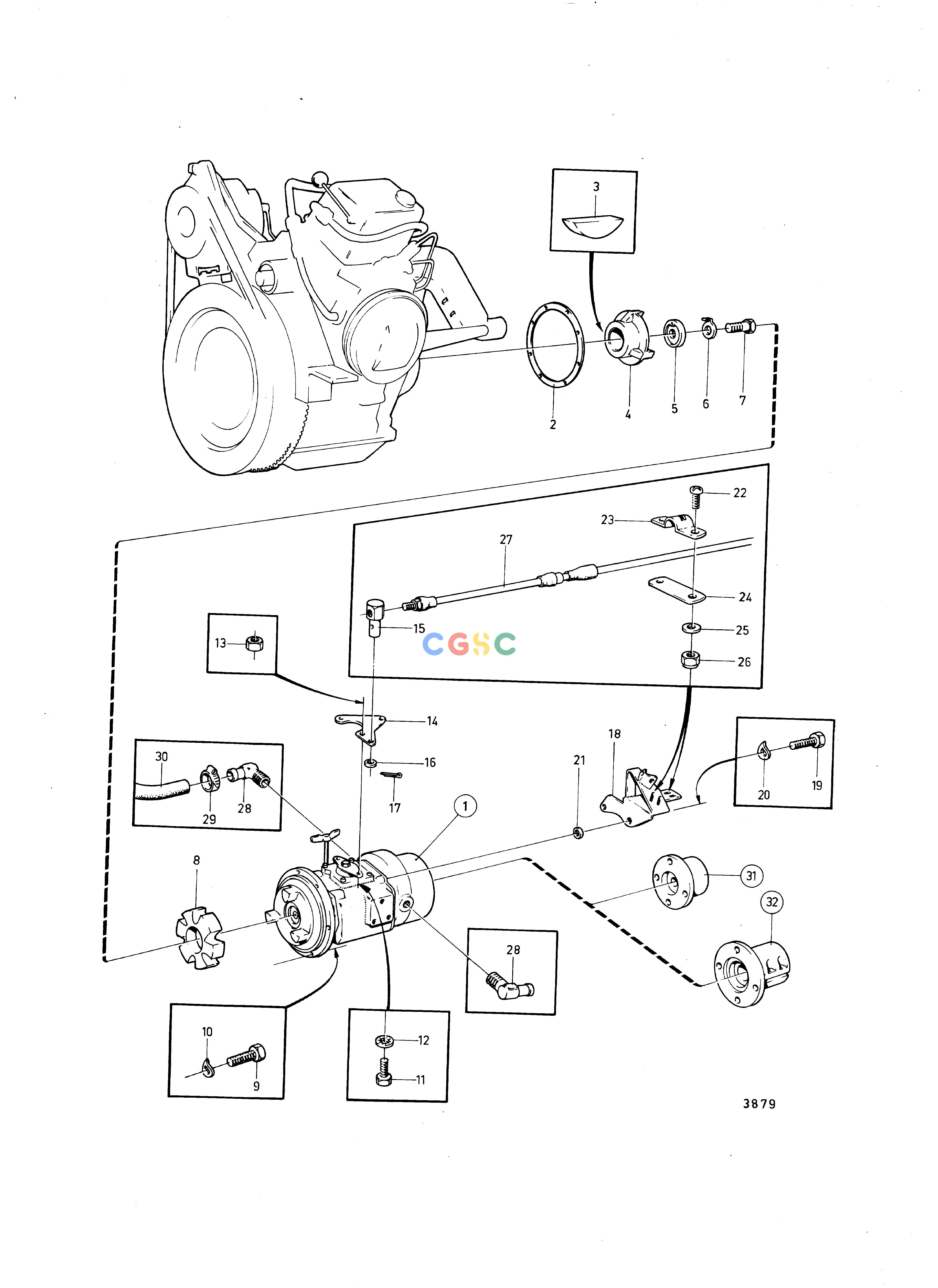

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsConnecting Components Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838162
|
[1] |
Reversing gear
|
|
| 1. |
|
|
|
See group 4B
|
| 2. |
838058
|
[1] |
Gasket
|
|
| 3. |
910121
|
[1] |
Woodruff key
|
|
| 4. |
833746
|
[1] |
Companion flange
|
See group 2A
|
| 5. |
833785
|
[1] |
Spacer washer
|
|
| 6. |
833849
|
[1] |
Lock washer
|
|
| 7. |
955341
|
[1] |
Hexagon screw
|
See group 2A
|
| 8. |
827615
|
[1] |
Rubber coupling
|
|
| 9. |
955295
|
[8] |
Hexagon screw
|
|
| 10. |
941907
|
[8] |
Spring washer
|
|
| 11. |
955270
|
[2] |
Hexagon screw
|
|
| 12. |
955948
|
[2] |
Toothed washer
|
|
| 13. |
955781
|
[2] |
Hexagon nut
|
|
| 14. |
834021
|
[1] |
Lever
|
|
| 15. |
833462
|
[1] |
Cube
|
|
| 16. |
955892
|
[1] |
Washer
|
|
| 17. |
907834
|
[1] |
Split pin
|
|
| 18. |
818134
|
[1] |
Gasket
|
See group 2D
|
| 19. |
940142
|
[2] |
Hexagon screw
|
|
| 20. |
941907
|
[2] |
Spring washer
|
|
| 21. |
961169
|
[2] |
Washer
|
|
| 22. |
955246
|
[4] |
Hexagon screw
|
|
| 23. |
21471054
|
[2] |
Bracket
|
|
| 24. |
819068
|
[2] |
Washer
|
|
| 25. |
940090
|
[4] |
Washer
|
|
| 26. |
946577
|
[4] |
Lock nut
|
|
| 27. |
|
|
|
See group 9
|
| 28. |
961607
|
[2] |
Hose nipple
|
|
| 29. |
943472
|
[2] |
Hose clamp
|
See group 2B
|
| 30. |
943368
|
[1] |
Rubber hose
|
L=200mm, see group 2B
|
| 31. |
806384
|
[1] |
Clutch flange
|
25mm hole for propeller shaft., Alt
|
| 32. |
833890
|
[1] |
Washer
|
20mm hole for propeller shaft., Alt
|
| 32. |
827924
|
[1] |
Clamp coupling
|
25mm hole for propeller shaft., Alt
|
