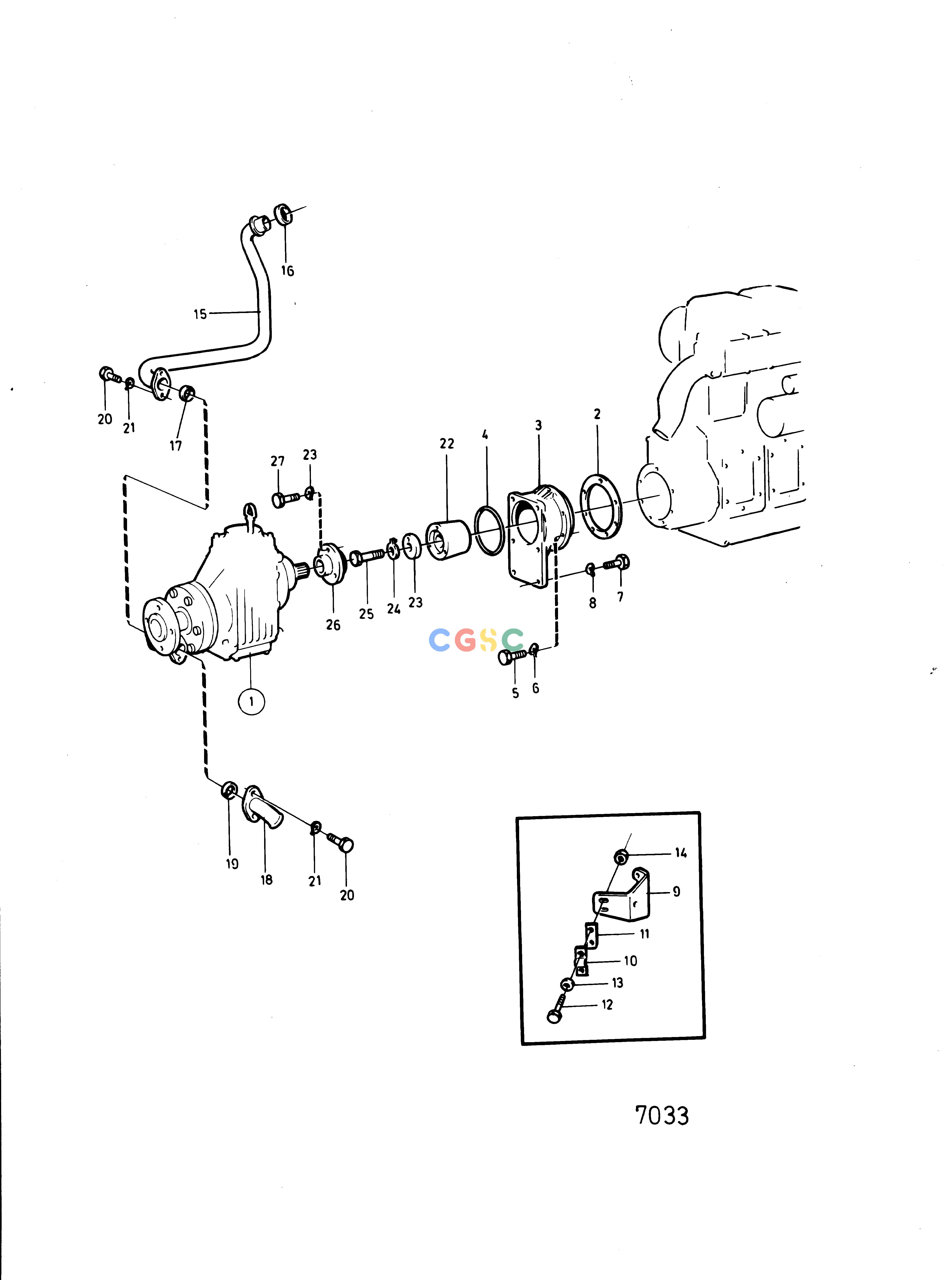

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsConnecting Components Reverse Gear MS2EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
851610
|
[1] |
Reversing gear
|
Ratio2,37:1, see group 4B
|
| 1. |
|
|
|
See group 4B
|
| 1. |
851611
|
[1] |
Reversing gear
|
Ratio3,02:1, see group 4B
|
| 2. |
|
|
|
MD11D MO-575667. MD17D MO-19091. MD5C MO-30700. MD7B MO-35427., Repl by 852632
|
| 2. |
852632
|
[1] |
O-ring
|
MD11D MO 57568-. MD17D MO 19092-. MD5C MO 30701-. MD17B MO 35428-.
|
| 3. |
851591
|
[1] |
Extension part
|
|
| 4. |
925260
|
[1] |
O-ring
|
|
| 5. |
959221
|
[7] |
Hex. socket screw
|
MD11D MO-575667. MD17D MO-19091. MD5C MO-30700. MD7B MO-35427., L=22mm
|
| 5. |
852630
|
[7] |
Screw
|
MD11D MO 57568-. MD17D MO 19092-. MD5C MO 30701-. MD17B MO 35428-., L=22mm
|
| 6. |
941907
|
[7] |
Spring washer
|
MD11D MO-575667. MD17D MO-19091. MD5C MO-30700. MD7B MO-35427.
|
| 6. |
852596
|
[7] |
Washer
|
MD11D MO 57568-. MD17D MO 19092-. MD5C MO 30701-. MD17B MO 35428-.
|
| 7. |
959239
|
[6] |
Hex. socket screw
|
L=30mm
|
| 8. |
941908
|
[6] |
Spring washer
|
MD11D MO-575667. MD17D MO-19091. MD5C MO-30700. MD7B MO-35427.
|
| 8. |
942336
|
[6] |
Spring washer
|
MD11D MO 57568-. MD17D MO 19092-. MD5C MO 30701-. MD17B MO 35428-.
|
| 9. |
838373
|
[1] |
Bracket
|
See group 2D
|
| 10. |
21471054
|
[1] |
Bracket
|
|
| 11. |
819068
|
[1] |
Washer
|
|
| 12. |
955246
|
[2] |
Hexagon screw
|
|
| 13. |
940090
|
[2] |
Washer
|
|
| 14. |
946577
|
[2] |
Lock nut
|
|
| 15. |
840613
|
[1] |
Coolant pipe
|
MO 30701-
|
| 16. |
829714
|
[1] |
Sealing ring
|
MO 30701-
|
| 17. |
831960
|
[1] |
Gasket
|
MO 30701-
|
| 18. |
840509
|
[1] |
Hose attachment
|
MO 30701-
|
| 19. |
418445
|
[1] |
Sealing ring
|
MO 30701-
|
| 20. |
955270
|
[4] |
Hexagon screw
|
MO 30701-
|
| 21. |
949607
|
[4] |
Spring washer
|
MO 30701-
|
| 22. |
852420
|
[1] |
Clutch flange
|
See group 2A
|
| 23. |
852123
|
[1] |
Spacer washer
|
See group 2A
|
| 24. |
833849
|
[1] |
Lock washer
|
See group 2A
|
| 25. |
955341
|
[1] |
Hexagon screw
|
See group 2A
|
| 26. |
852119
|
[1] |
Clutch flange
|
See group 2A
|
| 27. |
955295
|
[3] |
Hexagon screw
|
See group 2A
|
| 28. |
941907
|
[3] |
Spring washer
|
See group 2A
|
