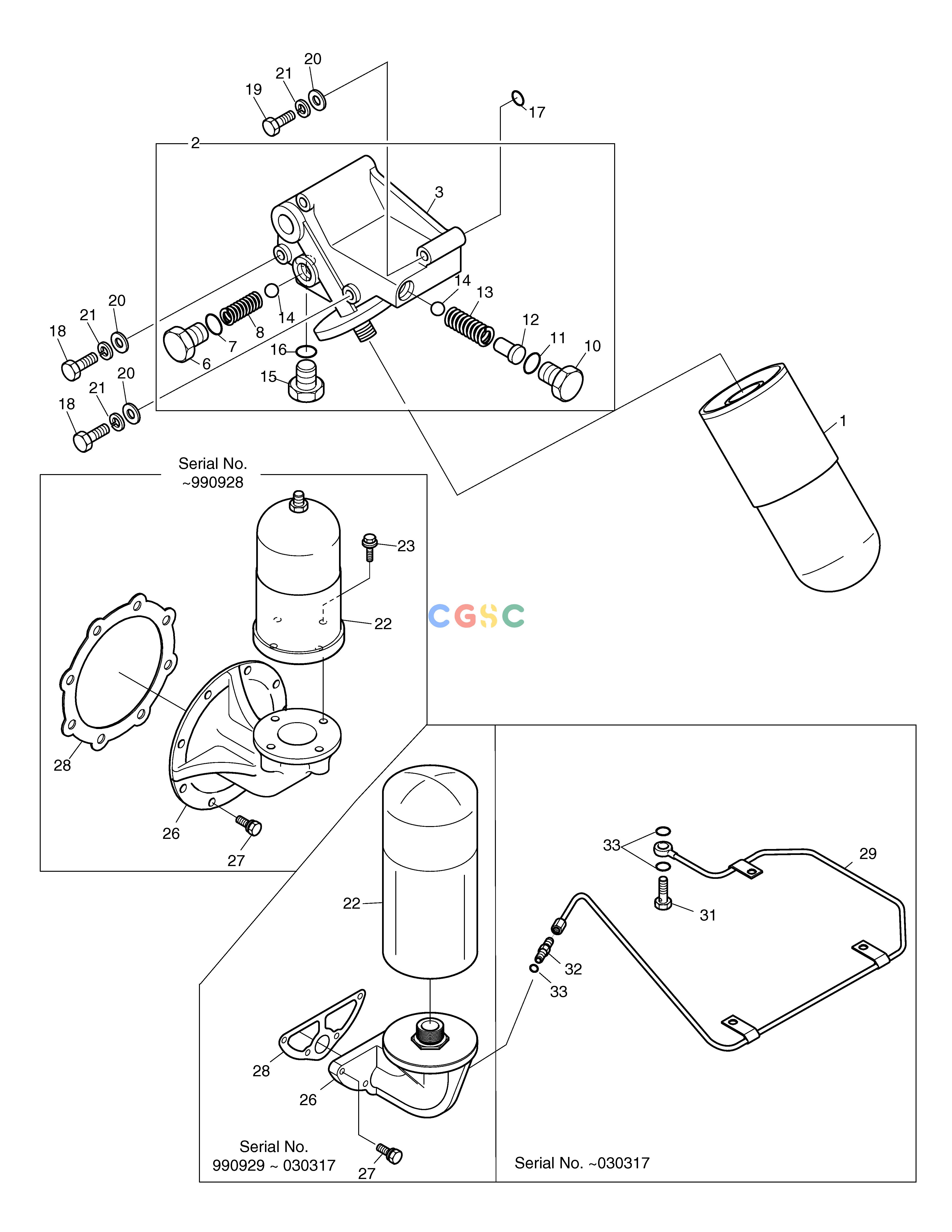

斗山零件查询OIL FILTER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
372 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.05501-7068B
|
[1] |
OIL FILTER ASS'Y(1~16)
|
|
| -. |
65.05501-7072
|
[1] |
OIL FILTER ASS'Y
|
|
| -. |
65.05501-7081
|
[1] |
OIL FILTER ASS'Y
|
|
| 1. |
65.05510-5020A
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 1. |
65.05510-5027
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 1. |
65.05510-5020A
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 10. |
65.90310-0034
|
[1] |
SCREW;PLUG M26X1.5
|
|
| 11. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
| 12. |
06.22230-1214
|
[1] |
PIN
|
|
| 13. |
65.97601-0004
|
[1] |
SPRING
|
|
| 14. |
06.31641-0433
|
[2] |
. BALL;STEEL
|
|
| 15. |
65.90310-0167
|
[1] |
SCREW;PLUG
|
|
| 15. |
65.90310-0121
|
[1] |
SCREW;PLUG
|
|
| 16. |
06.56190-0722
|
[1] |
RING;SEAL
|
|
| 17. |
65.96501-0061
|
[2] |
O-RING
|
|
| 18. |
06.01493-4323
|
[3] |
BOLT M12X140
|
|
| 19. |
06.01493-4315
|
[1] |
BOLT;HEX. M12X1.5X80
|
|
| 2. |
65.05503-5044A
|
[1] |
OIL FILTER HEAD ASS'Y(3~16)
|
|
| 2. |
65.05503-5050
|
[1] |
OIL FILTER HEAD ASS'Y
|
|
| 20. |
06.15010-2313
|
[4] |
WASHER;PLAIN
|
|
| 21. |
06.16731-2109
|
[4] |
WASHER;SPRING A12
|
|
| 22. |
65.05501-7057
|
[1] |
FILTER;OIL
|
|
| 22. |
65.05501-5002A
|
[1] |
FILTER;OIL
|
|
| 23. |
06.01923-3113
|
[4] |
BOLT ASS`Y M8X20
|
|
| 26. |
65.01102-5001
|
[1] |
COVER ASS'Y
|
|
| 26. |
65.05503-5047
|
[1] |
HEAD;OIL FILTER
|
|
| 27. |
06.01923-3115
|
[8] |
BOLT ASS`Y M8X25
|
|
| 27. |
06.01923-3117
|
[4] |
. BOLT ASS`Y M8X30
|
|
| 28. |
65.01908-0005A
|
[1] |
GASKET;BREATHER CASE
|
|
| 28. |
65.01908-0010
|
[1] |
GASKET
|
|
| 29. |
65.05701-5663
|
[1] |
OIL PIPE ASS'Y
|
|
| 29. |
65.05701-5388
|
[1] |
OIL PIPE ASS'Y
|
|
| 3. |
65.05503-0040A
|
[1] |
HEAD;OIL FILTER
|
|
| 31. |
06.78144-2404
|
[1] |
SCREW;HOLLOW
|
|
| 32. |
65.98131-0063
|
[1] |
NIPPLE
|
|
| 33. |
06.56190-0706
|
[3] |
SEAL RING
|
|
| 6. |
65.90310-0115
|
[1] |
. PLUG
|
|
| 7. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 8. |
65.97601-0075
|
[1] |
. SPRING
|
|
