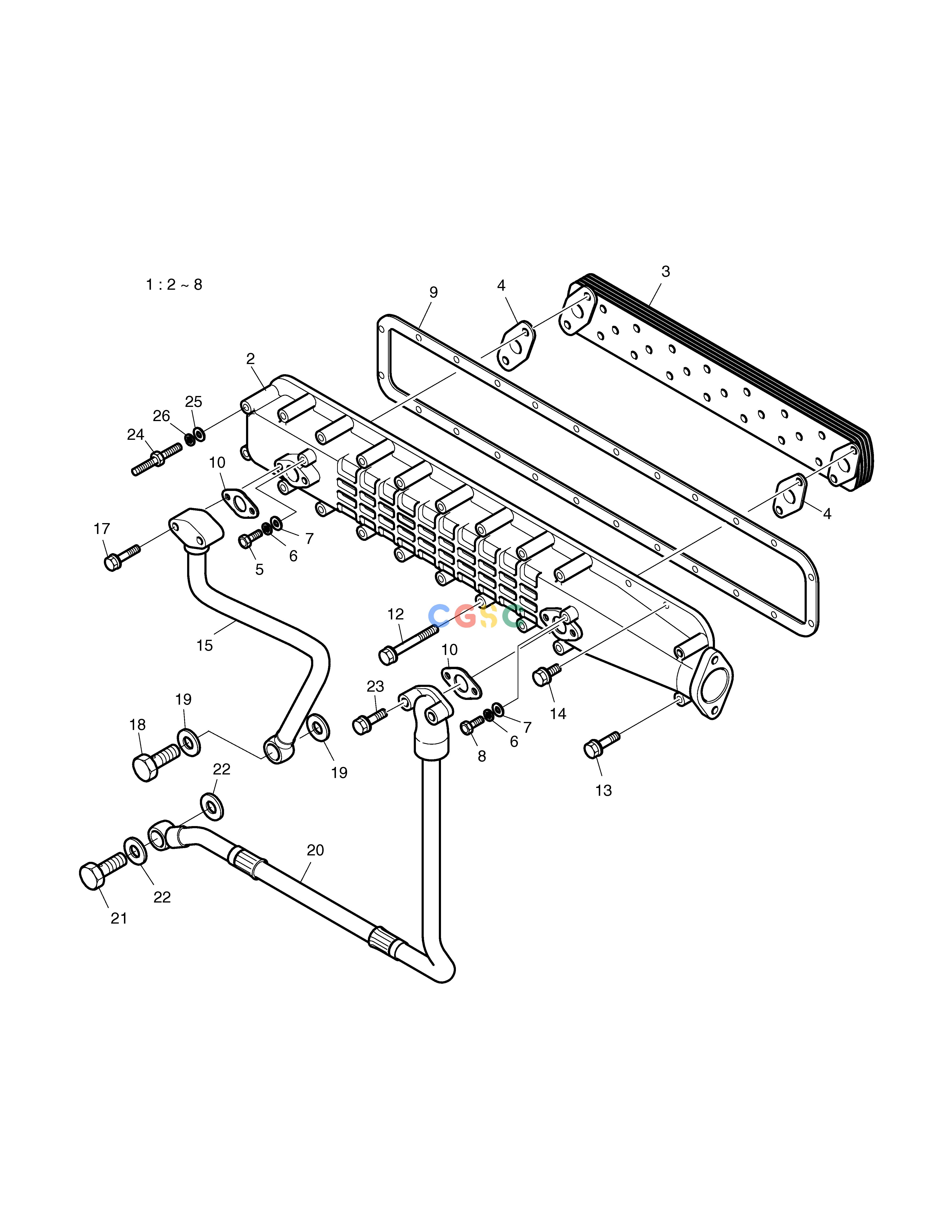

斗山零件查询OIL COOLER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05601-7072C
|
[1] |
OIL COOLER ASS'Y
|
|
| 10. |
65.05903-0030A
|
[2] |
GASKET;OIL RETURN PIPE
|
|
| 12. |
06.01923-3124
|
[13] |
BOLT ASS`Y M8X65
|
|
| 13. |
06.01923-3122
|
[2] |
BOLT ASS`Y M8X55
|
|
| 14. |
06.01923-3115
|
[4] |
BOLT ASS`Y M8X25
|
|
| 15. |
65.05701-5660
|
[1] |
PIPE;OIL
|
|
| 17. |
06.01913-3120
|
[2] |
BOLT ASS`Y M8X45
|
|
| 18. |
06.78140-2408
|
[1] |
SCREW;HOLLOW
|
|
| 19. |
06.56190-0727
|
[2] |
RING;SEAL
|
|
| 2. |
65.05604-0019B
|
[1] |
HOUSING;OIL COOLER
|
|
| 20. |
65.05701-5964A
|
[1] |
OIL PIPE ASS'Y
|
|
| 21. |
06.78140-2408
|
[1] |
SCREW;HOLLOW
|
|
| 22. |
06.56190-0728
|
[2] |
RING;SEAL
|
|
| 23. |
06.01913-3120
|
[2] |
BOLT ASS`Y M8X45
|
|
| 24. |
65.90201-0066
|
[5] |
. BOLT;STUD
|
|
| 25. |
06.15010-2311
|
[5] |
WASHER
|
|
| 26. |
06.16731-2107
|
[5] |
WASHER
|
|
| 3. |
65.05606-5027B
|
[1] |
ELEMENT;OIL COOLER
|
|
| 4. |
65.05903-0028
|
[2] |
GASKET;OIL COOLER
|
|
| 5. |
06.02090-0512
|
[2] |
BOLT;SOCKET HEAD M10X25
|
|
| 6. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 7. |
06.15010-2312
|
[4] |
WASHER;PLAIN
|
|
| 8. |
06.02090-0513
|
[2] |
BOLT;SOCKET HEAD
|
|
| 9. |
65.01907-0008A
|
[1] |
GASKET
|
|
