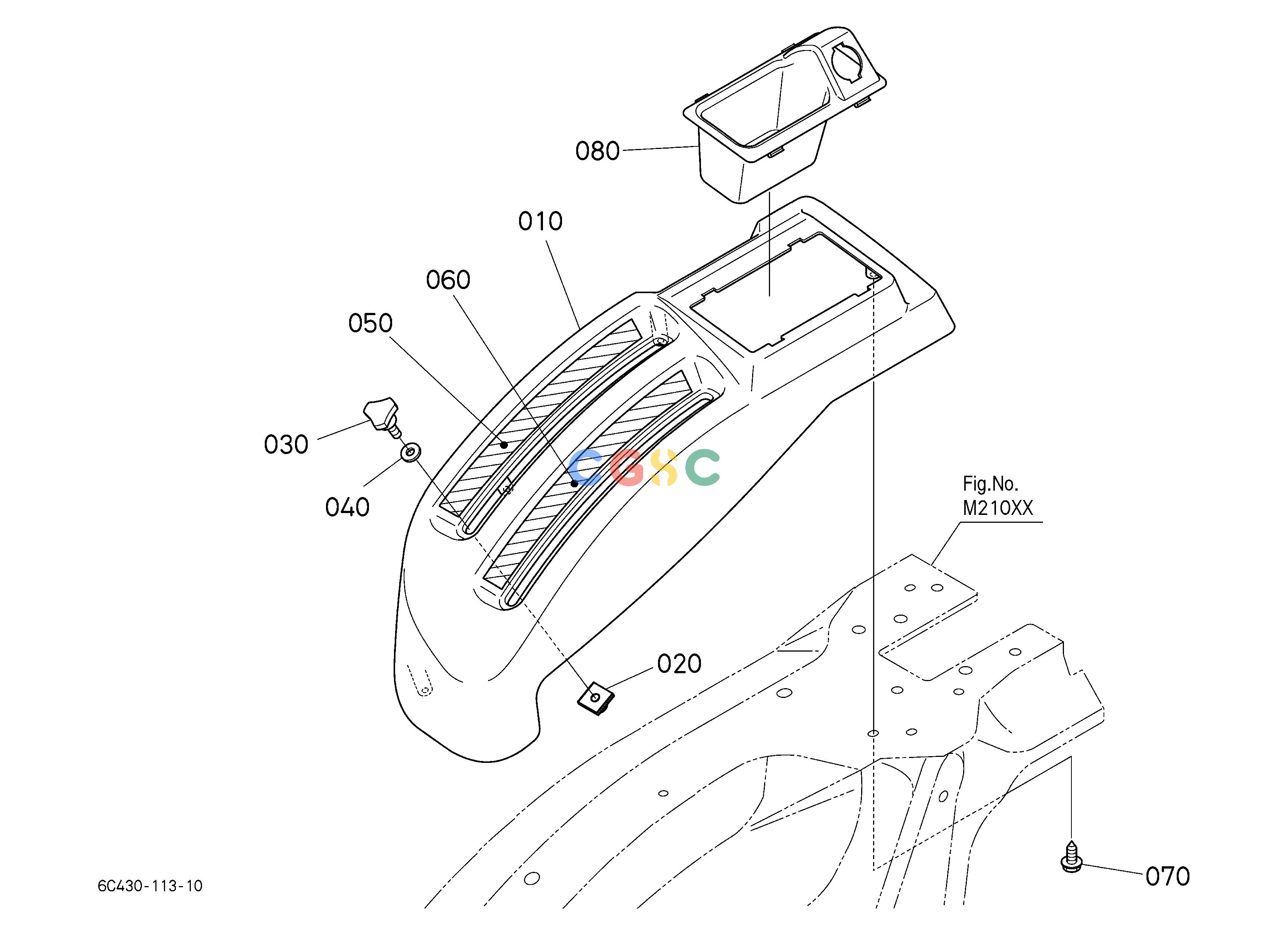

久保田零件查询M20901 LEVER GUIDE RH HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C41052160
|
[1] |
GUIDE(LEVER RH)
|
0.0000(lbs); 0.000
|
| 010. |
6C41052162
|
[1] |
GUIDE(LEVER RH)
|
1.0076(lbs); 0.458
|
| 020. |
3741052380
|
[1] |
STOPPER
|
0.0220(lbs); 0.010
|
| 030. |
3741052610
|
[1] |
SCREW(KNOB)
|
0.0330(lbs); 0.015
|
| 040. |
3135118860
|
[1] |
WASHER
|
0.0044(lbs); 0.002
|
| 050. |
6C41047350
|
[1] |
LABEL(POSITION)
|
0.0044(lbs); 0.002
|
| 060. |
6C41047360
|
[1] |
LABEL(4WD)
|
0.0044(lbs); 0.002
|
| 070. |
6A54054140
|
[4] |
SCREW,TAPPING
|
0.0110(lbs); 0.005
|
| 080. |
6C41052130
|
[1] |
COVER(CONTROLLER)
|
0.1914(lbs); 0.087
|
