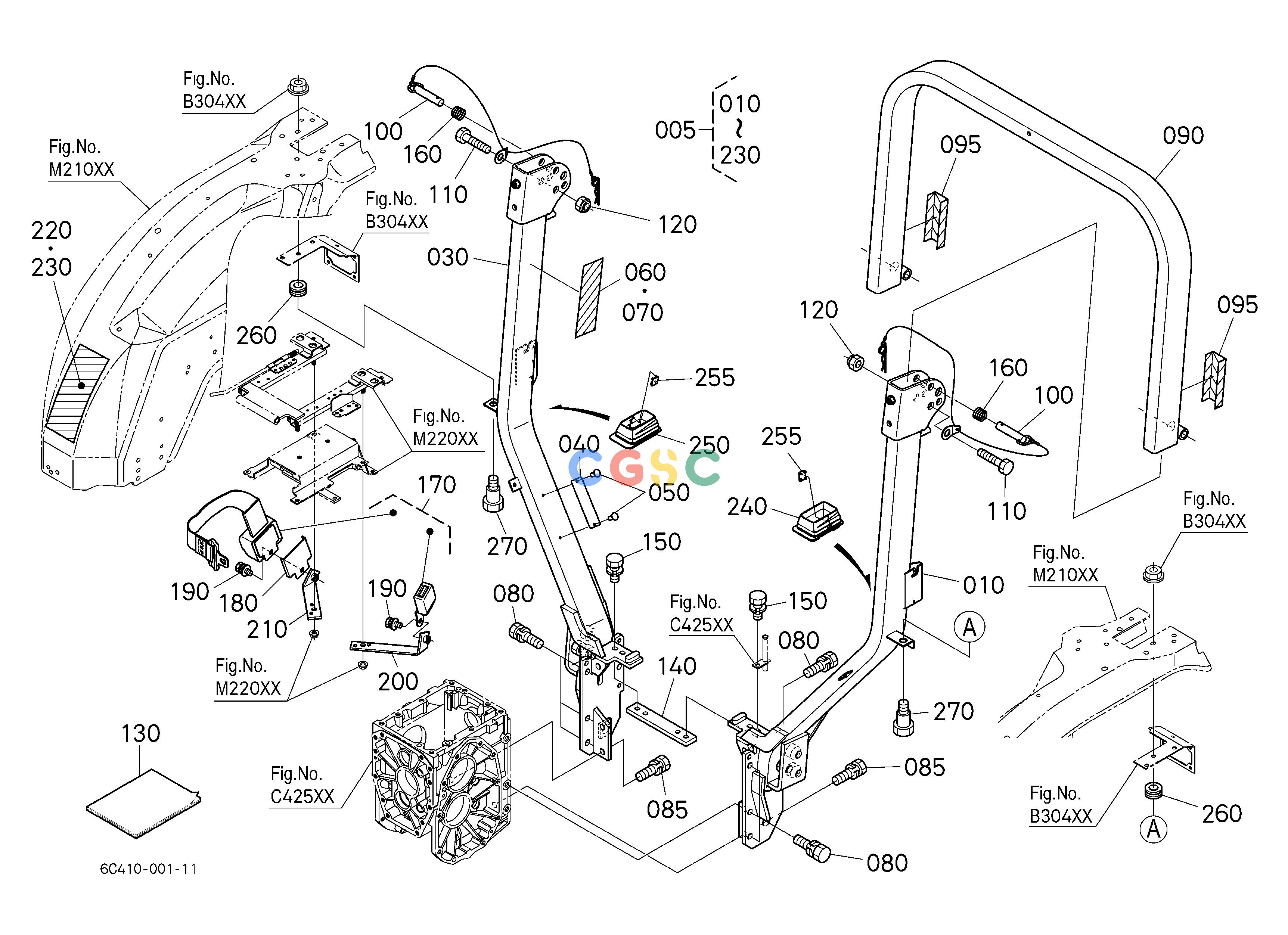

久保田零件查询M30101 ROPS HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 005. |
- |
[1] |
FRAME,SAFETY(SFB-F50)
|
0.0000(lbs); 0.000
|
| 010. |
- |
[1] |
FRAME(LOWER LH)
|
0.0000(lbs); 0.000
|
| 030. |
- |
[1] |
FRAME,ASSY(LOWER RH)
|
0.0000(lbs); 0.000
|
| 040. |
- |
[1] |
NAMEPLATE(ROPS)
|
0.0000(lbs); 0.000
|
| 050. |
PR85146190
|
[2] |
RIVET
|
0.0000(lbs); 0.000
|
| 060. |
3A11195540
|
[1] |
LABEL,FLDNG ROPS CAUTION
|
0.0066(lbs); 0.003
|
| 070. |
3A11295540
|
[1] |
LABEL,ROPS CAUTION
|
0.0066(lbs); 0.003
|
| 080. |
0112351235
|
[8] |
BOLT,SEMS
|
0.0902(lbs); 0.041
|
| 085. |
0112351240
|
[4] |
BOLT,SEMS
|
0.1056(lbs); 0.048
|
| 090. |
- |
[1] |
FRAME(UPPER)
|
0.0000(lbs); 0.000
|
| 095. |
6C14054990
|
[2] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 100. |
6C30087450
|
[2] |
SET,BOLT ROPS
|
0.3036(lbs); 0.138
|
| 110. |
0117651675
|
[2] |
HEX.BOLT
|
0.2926(lbs); 0.133
|
| 120. |
0257450160
|
[2] |
NUT,LOCKING
|
0.0660(lbs); 0.030
|
| 130. |
- |
[1] |
MANUAL,INST.
|
0.0000(lbs); 0.000
|
| 140. |
6C43088550
|
[1] |
PLATE(CONNECTOR)
|
0.7348(lbs); 0.334
|
| 150. |
0113351025
|
[4] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
| 160. |
6C36087550
|
[2] |
SPRING
|
0.0022(lbs); 0.001
|
| 170. |
K277156852
|
[1] |
BELT,SEAT,ASSY
|
0.0000(lbs); 0.000
|
| 180. |
K318156870
|
[1] |
COVER(BELT SEAT)
|
0.1848(lbs); 0.084
|
| 190. |
0113551025
|
[2] |
BOLT,W SEMS
|
0.0506(lbs); 0.023
|
| 200. |
TC03018492
|
[1] |
BRACKET,SEAT BELT LH
|
0.6600(lbs); 0.300
|
| 210. |
TA04018482
|
[1] |
BRACKET,SEAT BELT RH
|
0.5940(lbs); 0.270
|
| 220. |
TA24098482
|
[1] |
LABEL, ROPS WARNING LABEL
|
0.0110(lbs); 0.005
|
| 230. |
3A11298480
|
[1] |
LABEL,ROPS WARNING
|
0.0088(lbs); 0.004
|
| 230. |
TC42098482
|
[1] |
LABEL,ROPS WARNING
|
0.0088(lbs); 0.004
|
| 240. |
6C41072250
|
[1] |
COVER(ROPS LH)
|
0.1584(lbs); 0.072
|
| 250. |
6C41072260
|
[1] |
COVER(ROPS RH)
|
0.1584(lbs); 0.072
|
| 255. |
6C04272230
|
[2] |
SUPPORT,ROPS COVER
|
0.0022(lbs); 0.001
|
| 260. |
6A10051383
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 270. |
6C04051342
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
