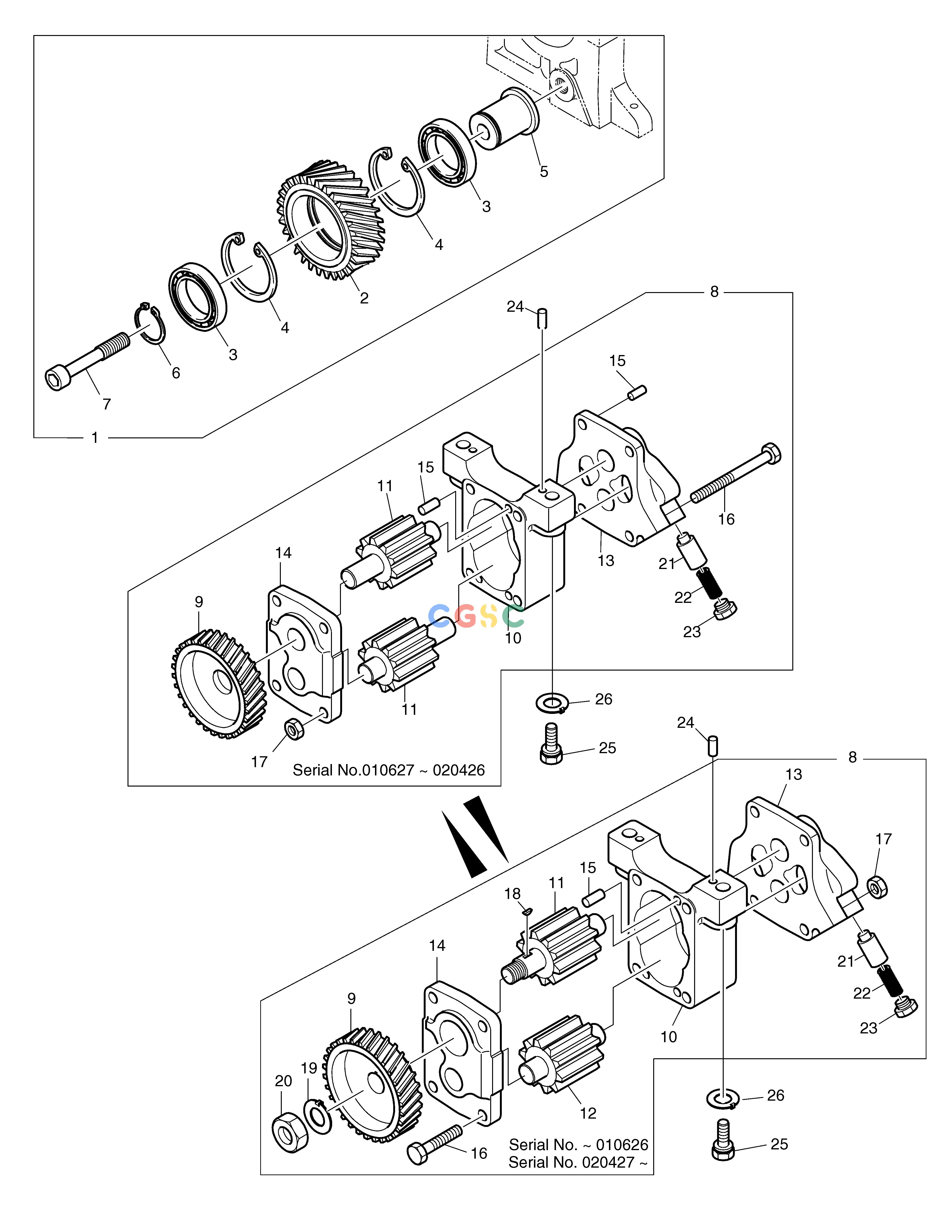

斗山零件查询OIL PUMP SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05200-6004A
|
[1] |
IDLE GEAR MOUNTING
|
|
| 10. |
65.05102-0015
|
[1] |
HOUSING;OIL PUMP
|
|
| 11. |
65.05104-5004
|
[1] |
GEAR;PUMP
|
|
| 11. |
65.05104-5008
|
[2] |
GEAR
|
|
| 11. |
65.05104-5004
|
[1] |
GEAR;PUMP
|
|
| 12. |
65.05104-5005
|
[1] |
GEAR;PUMP
|
|
| 12. |
65.05104-5005
|
[1] |
GEAR;PUMP
|
|
| 13. |
65.05103-5008
|
[1] |
OIL PUMP COVER ASS'Y(RR)
|
|
| 13. |
65.05103-5020
|
[1] |
OIL PUMP COVER ASS'Y(RR)
|
|
| 13. |
65.05103-5008
|
[1] |
OIL PUMP COVER ASS'Y(RR)
|
|
| 14. |
65.05103-5006A
|
[1] |
OIL PUMP COVER ASS'Y(FR)
|
|
| 14. |
65.05103-5028
|
[1] |
OIL PUMP COVER ASS'Y(FR)
|
|
| 14. |
65.05103-5006A
|
[1] |
OIL PUMP COVER ASS'Y(FR)
|
|
| 15. |
06.22022-0907
|
[4] |
. PIN;DOWEL
|
|
| 15. |
06.22022-0909
|
[4] |
PIN;DOWEL 6M6X14
|
|
| 15. |
06.22022-0907
|
[4] |
. PIN;DOWEL
|
|
| 16. |
06.01013-9118
|
[4] |
.. BOLT;HEX. M8X65
|
|
| 17. |
65.90510-0012
|
[4] |
NUT
|
|
| 18. |
06.29141-0207
|
[1] |
KEY;WOODRUFF
|
|
| 18. |
06.29141-0207
|
[1] |
KEY;WOODRUFF
|
|
| 19. |
06.16050-0311
|
[1] |
WASHER;LOCK
|
|
| 19. |
06.16050-0311
|
[1] |
WASHER;LOCK
|
|
| 2. |
65.05204-0003A
|
[1] |
GEAR;OIL PUMP IDLE
|
|
| 20. |
06.11053-9217
|
[1] |
NUT;HEX.
|
|
| 20. |
06.11053-9217
|
[1] |
NUT;HEX.
|
|
| 21. |
65.05410-0007
|
[1] |
PLUNGER;VALVE
|
|
| 22. |
65.97601-0105
|
[1] |
SPRING;COMP.
|
|
| 23. |
65.90310-0104
|
[1] |
SCREW;PLUG
|
|
| 24. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 25. |
06.01013-9215
|
[2] |
BOLT;HEX. M10X50
|
|
| 26. |
65.90801-0038
|
[2] |
WASHER;LOCK
|
|
| 3. |
06.31420-0314
|
[2] |
BEARING;BALL
|
|
| 4. |
06.29020-0132
|
[2] |
. SNAP RING
|
|
| 5. |
65.05205-0018
|
[1] |
PIN;IDLE GEAR
|
|
| 6. |
06.29010-0125
|
[1] |
RING;SNAP 30X2
|
|
| 7. |
65.90030-0009
|
[1] |
BOLT;SOCKET HEAD M10X60
|
|
| 8. |
65.05100-6042A
|
[1] |
OIL PUMP ASS'Y(9~23)
|
65.05100-6050
|
| 8. |
65.05100-6050
|
[1] |
OIL PUMP ASS'Y(9~23)
|
65.05100-6042A
|
| 8. |
65.05100-6042A
|
[1] |
OIL PUMP ASS'Y(9~23)
|
|
| 9. |
65.05201-0008A
|
[1] |
GEAR;DRIVE
|
|
| 9. |
65.05201-0010
|
[1] |
GEAR;OIL PUMP DRIVE
|
|
| 9. |
65.05201-0008A
|
[1] |
GEAR;DRIVE
|
|
