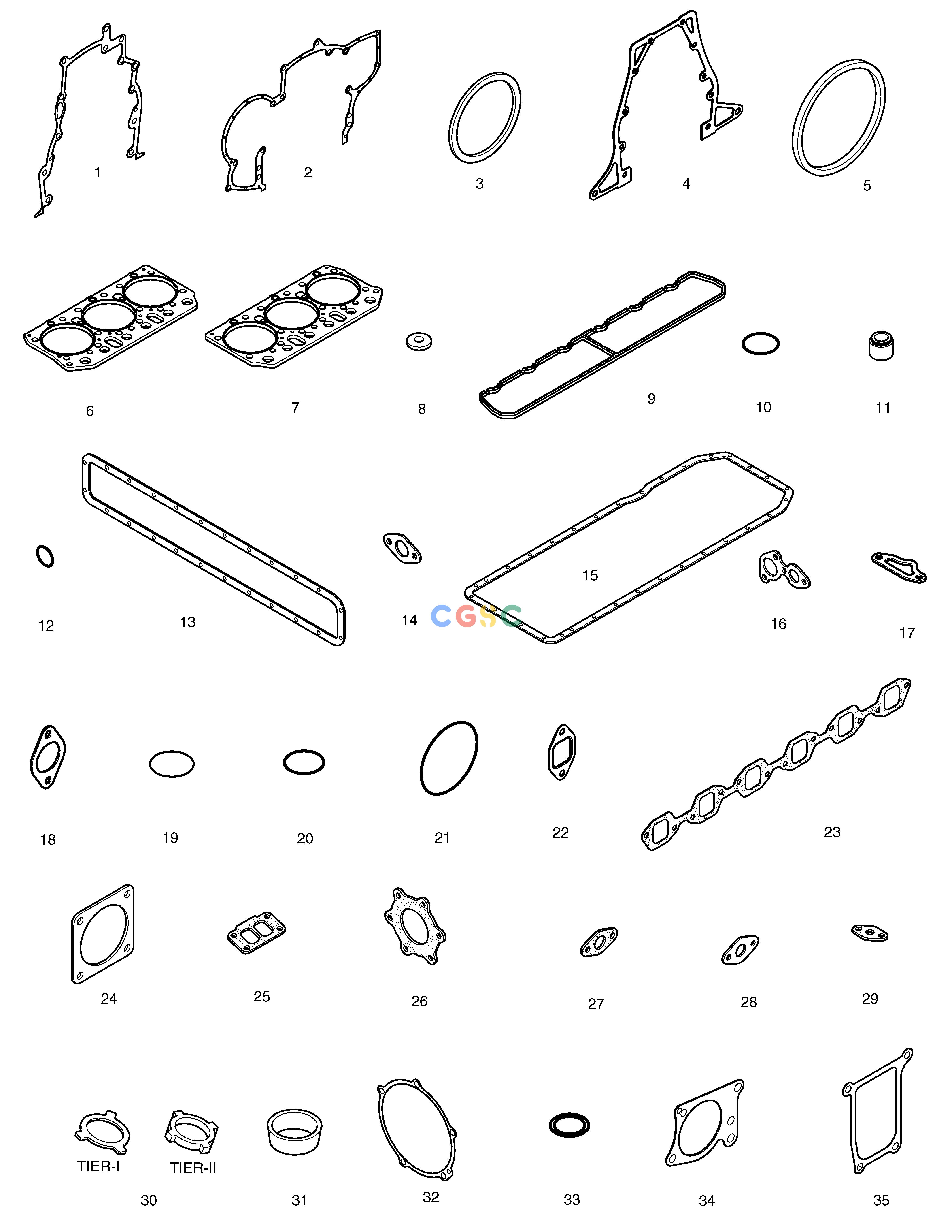

Pos.	Part No	Qty	Parts name
-.	65.99601-8042	[1]	OVER HAUL GASKET KIT-ALL
1.	65.01903-0048B	[1]	GASKET
10.	65.96501-0033B	[1]	O-RING
11.	65.04902-0010	[12]	SEAL;VALVE STEM
12.	65.96501-0061	[2]	O-RING
13.	65.01907-0008A	[1]	GASKET
14.	65.05903-0030A	[2]	GASKET;OIL RETURN PIPE
15.	65.05904-0096A	[1]	GASKET;OIL PAN
16.	65.05903-0027A	[1]	GASKET
17.	65.06903-0018	[2]	GASKET;COOLING WATER PIPE
18.	65.06903-0020	[1]	GASKET
19.	65.06901A0069	[2]	GASKET
2.	65.01903-0050	[1]	GASKET;TIMING GEAR CASE COVER
20.	06.56342-1208	[2]	O-RING
21.	65.96501-0068	[1]	O-RING
22.	65.08901A0012	[6]	GASKET;EXHAUST MANIFOLD
23.	65.08902-0025	[1]	GASKET;INTAKE MANIFOLD
24.	65.09904-0008	[2]	GASKET;AIR HEATER
25.	65.09901-0025	[1]	GASKET;TURBO CHARGER
26.	65.08901-0063	[1]	GASKET;EXHAUST ELBOW
27.	65.96601-0045A	[1]	GASKET
28.	65.96601-0012	[1]	GASKET;T/C OIL RETURN
29.	65.96601-0046A	[1]	GASKET;OIL PIPE ADAPTER
3.	65.01510-0157	[1]	SEAL;OIL(FRONT)
30.	65.98701-0010	[6]	SEAL;RING (TIER-I)
30.	65.98701-0012	[6]	SEAL;RING (TIER-II)
31.	65.96401-0011	[6]	SEAL;DUST NOZZLE (TIER-I)
31.	65.96401-0012	[6]	SEAL;DUST NOZZLE (TIER-II)
32.	65.11902-0017	[1]	GASKET
33.	06.56180-0712	[12]	RING;SEAL
34.	65.47901-0010	[1]	GASKET;P/S PUMP
35.	65.54901-0025A	[1]	GASKET;AIR COMPRESSOR
4.	65.01904-0022A	[1]	GASKET;FLYWHEEL HOUSING
5.	65.01510-0158	[1]	SEAL;OIL
6.	65.03901-0063A	[1]	GASKET;CYLINDER HEAD
7.	65.03901-0064A	[1]	GASKET;CYLINDER HEAD
8.	65.03905-0023A	[6]	GASKET;CYLINDER HEAD COVER MOUNTIN
9.	65.03905-0020	[1]	PACKING
