斗山零件查询PISTON ASS'Y SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次

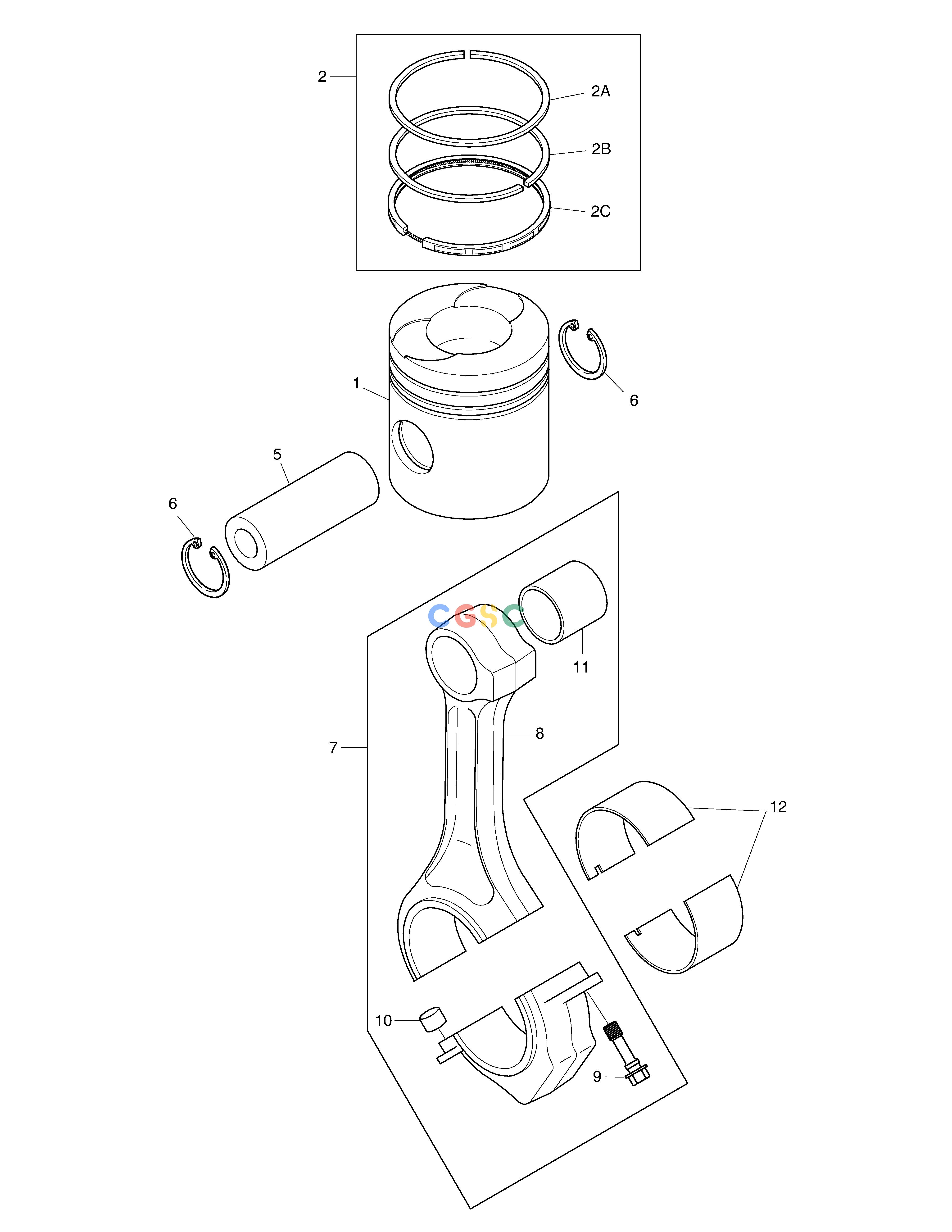

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.02501-0778A
|
[6] |
PISTON
|
|
| 1. |
65.02501-0164A
|
[6] |
PISTON
|
65.02501-0778A
|
| 10. |
65.91301-0010
|
[12] |
PIN;DOWEL
|
|
| 11. |
65.02405-1006
|
[6] |
BUSH;CON-ROD
|
|
| 12. |
65.02410-6106
|
[6] |
BEARING;CON-ROD
|
|
| 12. |
65.02410-6107
|
[6] |
BEARING;CON-ROD 0.25
|
|
| 12. |
65.02410-6108
|
[6] |
BEARING;CON-ROD 0.50
|
|
| 12. |
65.02410-6109
|
[6] |
BEARING;CON-ROD 0.75
|
|
| 2. |
65.02503-8237
|
[1] |
|
|
| 2A. |
65.02503-0674
|
[6] |
RING;TOP
|
|
| 2B. |
65.02503-0097
|
[6] |
RING;2ND
|
|
| 2C. |
65.02503-0675B
|
[6] |
RING;OIL
|
|
| 5. |
65.02502-0050
|
[6] |
PIN;PISTON
|
|
| 6. |
06.29020-0127
|
[12] |
RING;SNAP 45X1.75
|
|
| 7. |
65.02401-6012E
|
[6] |
CONNECTING ROD ASS'Y
|
65.02401-6012F
|
| 7. |
65.02401-6012F
|
[6] |
CONNECTING ROD ASS'Y
|
65.02401-6012G
|
| 7. |
65.02401-6012G
|
[6] |
CONNECTING ROD ASS'Y
|
|
| 8. |
65.02401-0045E
|
[6] |
ROD;CONNECTING
|
|
| 8. |
65.02401-0045F
|
[6] |
ROD;CONNECTING
|
|
| 8. |
65.02401-0045G
|
[6] |
ROD;CONNECTING
|
|
| 9. |
65.90020-0010E
|
[12] |
BOLT;CON-ROD
|
|
