斗山零件查询OVER HAUL GASKET-TOP SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
707 次

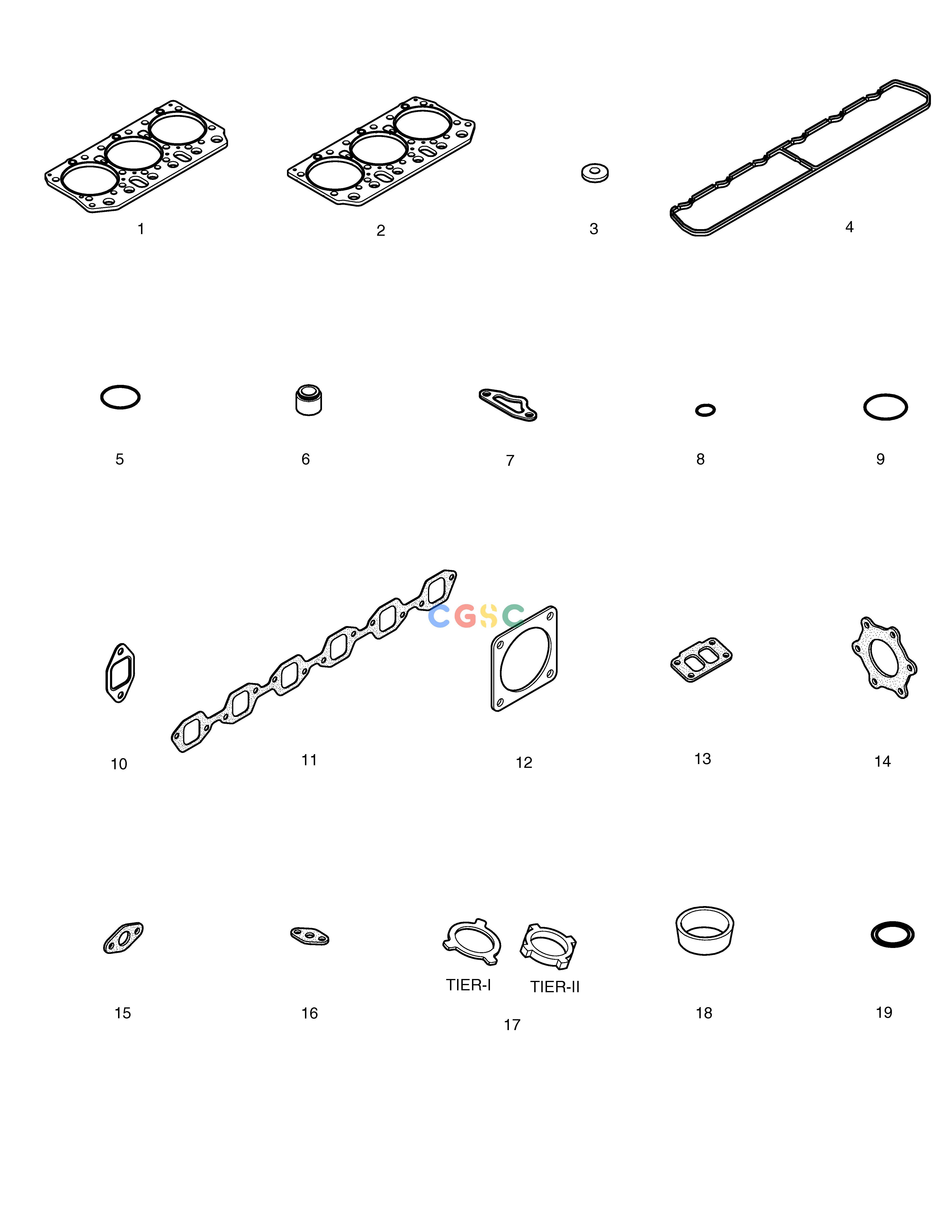

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.99605-8028
|
[1] |
OVER HAUL GASKET KIT-TOP
|
|
| 1. |
65.03901-0063A
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 10. |
65.08901A0012
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 11. |
65.08902-0025
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 12. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 13. |
65.09901-0025
|
[1] |
GASKET;TURBO CHARGER
|
|
| 14. |
65.08901-0063
|
[1] |
GASKET;EXHAUST ELBOW
|
|
| 15. |
65.96601-0045A
|
[1] |
GASKET
|
|
| 16. |
65.96601-0046A
|
[1] |
GASKET;OIL PIPE ADAPTER
|
|
| 17. |
65.98701-0010
|
[6] |
SEAL;RING (TIER-I)
|
|
| 17. |
65.98701-0012
|
[6] |
SEAL;RING (TIER-II)
|
|
| 18. |
65.96401-0011
|
[6] |
SEAL;DUST NOZZLE (TIER-I)
|
|
| 18. |
65.96401-0012
|
[6] |
SEAL;DUST NOZZLE (TIER-II)
|
|
| 19. |
06.56180-0712
|
[12] |
RING;SEAL
|
|
| 2. |
65.03901-0064A
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 3. |
65.03905-0023A
|
[6] |
GASKET;CYLINDER HEAD COVER MOUNTIN
|
|
| 4. |
65.03905-0020
|
[1] |
PACKING
|
|
| 5. |
65.96501-0033B
|
[1] |
O-RING
|
|
| 6. |
65.04902-0010
|
[12] |
SEAL;VALVE STEM
|
|
| 7. |
65.06903-0018
|
[2] |
GASKET;COOLING WATER PIPE
|
|
| 8. |
65.96501-0069
|
[6] |
O-RING
|
|
| 9. |
06.56342-1208
|
[2] |
O-RING
|
|
