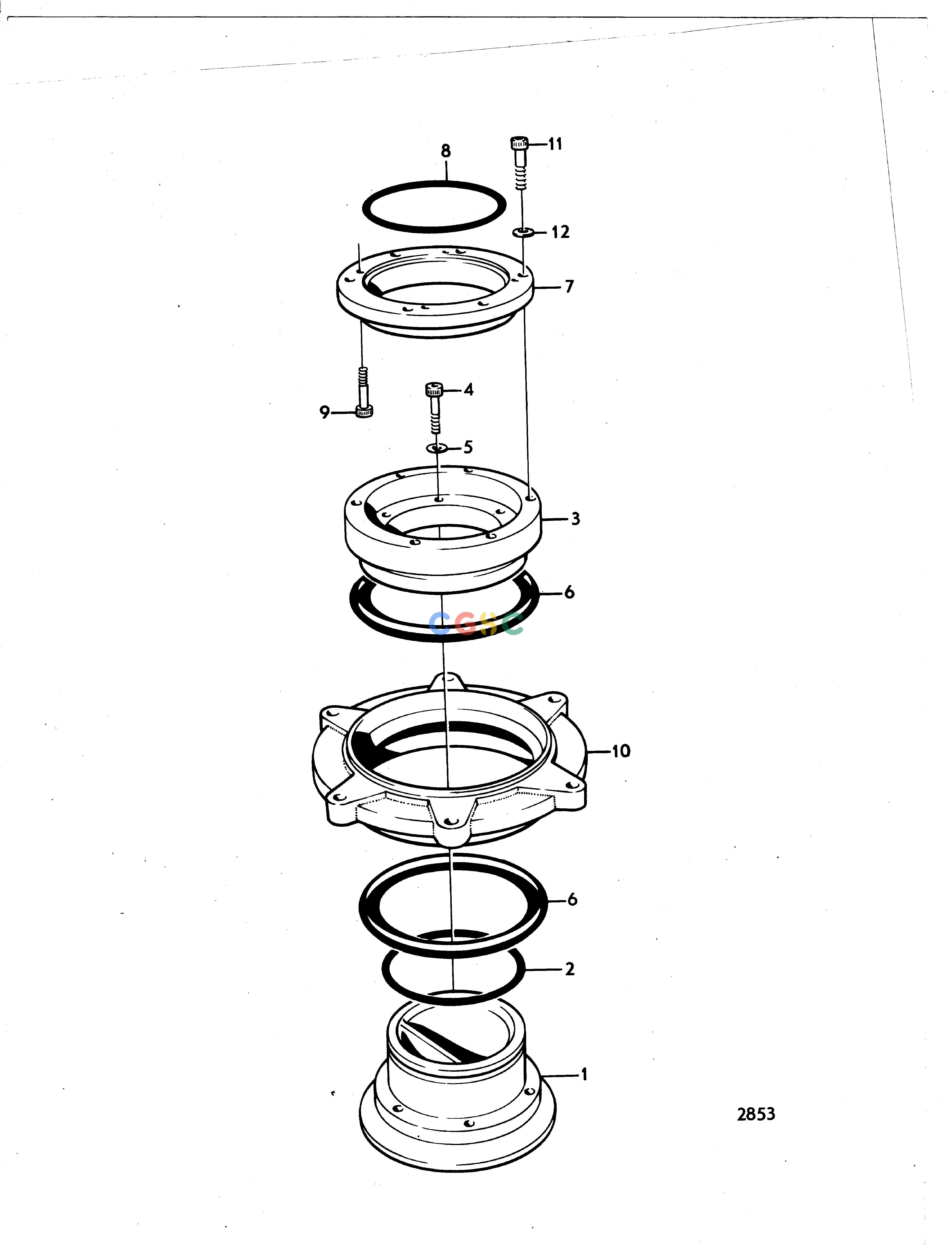

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsIntermediate Housing Sail Boat Drive Unit 100SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839214
|
[1] |
Intermediate housing
|
|
| 2. |
925262
|
[1] |
O-ring
|
|
| 3. |
839215
|
[1] |
Clamping ring
|
|
| 4. |
956605
|
[6] |
Hex. socket screw
|
|
| 5. |
120042
|
[6] |
Washer
|
|
| 6. |
813967
|
[2] |
Rubber ring
|
|
| 7. |
839204
|
[1] |
Spacer flange
|
|
| 8. |
925263
|
[1] |
O-ring
|
|
| 9. |
956587
|
[4] |
Hex. socket screw
|
|
| 10. |
839205
|
[1] |
Anchorage
|
|
| 11. |
956601
|
[6] |
Hex. socket screw
|
|
| 12. |
120042
|
[6] |
Washer
|
|
