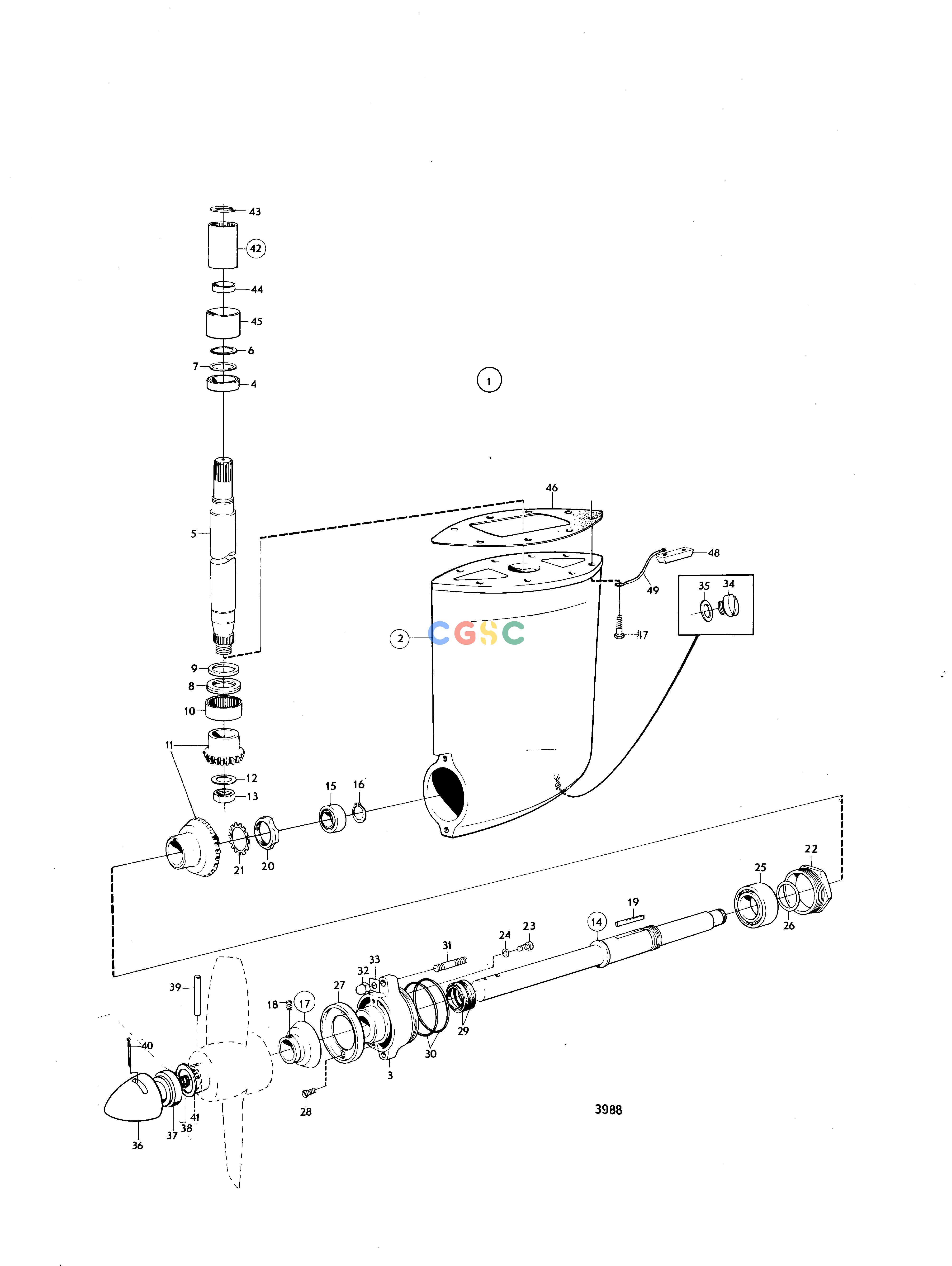

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsLower Gear Unit Sail Boat Drive Unit 100SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Replaced by 839359 + 875121., PZ-505250
|
| 1. |
839359
|
[1] |
Lower gear
|
PZ 505251-
|
| 2. |
|
|
|
Replaced by 839358 + 839356 + 875121., PZ-505250
|
| 2. |
839358
|
[1] |
Gear housing
|
PZ 505251-
|
| 3. |
832148
|
[1] |
Bearing housing
|
|
| 4. |
18559
|
[1] |
Ball bearing
|
|
| 5. |
|
|
|
Replaced by 839356 + 875121., PZ-505250
|
| 5. |
839356
|
[1] |
Countershaft
|
PZ 505251-
|
| 6. |
914459
|
[1] |
Snap ring
|
|
| 7. |
26413
|
[1] |
Shim
|
TH=0.1mm
|
| 7. |
26411
|
[1] |
Shim
|
TH=1.0mm
|
| 8. |
806620
|
[1] |
Roller bearing
|
|
| 9. |
804303
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 9. |
34615
|
[1] |
Shim
|
TH=0.1mm
|
| 10. |
181288
|
[1] |
Needle bearing
|
|
| 11. |
806625
|
[1] |
Drive gear set
|
|
| 12. |
191573
|
[1] |
Lock washer
|
|
| 13. |
955852
|
[1] |
Hexagon nut
|
|
| 14. |
875177
|
[1] |
Propeller shaft
|
|
| 15. |
181413
|
[1] |
Needle bearing
|
|
| 16. |
192365
|
[1] |
Snap ring
|
|
| 17. |
832966
|
[1] |
Guard plate
|
|
| 18. |
804278
|
[1] |
Set screw
|
|
| 19. |
909306
|
[1] |
Flat key
|
|
| 20. |
906634
|
[1] |
Round nut
|
|
| 21. |
907024
|
[1] |
Lock washer
|
|
| 22. |
804217
|
[1] |
Nut
|
|
| 23. |
950331
|
[1] |
Screw
|
|
| 24. |
940155
|
[1] |
Toothed washer
|
|
| 25. |
181286
|
[1] |
Ball bearing
|
|
| 26. |
804303
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 26. |
34615
|
[1] |
Shim
|
TH=0.1mm
|
| 27. |
839513
|
[1] |
Zinc ring
|
Not included in 839359, only for folding propeller.
|
| 27. |
875810
|
[1] |
Zinc ring kit
|
(804417)
|
| 28. |
940203
|
[2] |
Screw
|
|
| 29. |
804209
|
[2] |
Sealing ring
|
|
| 30. |
925257
|
[2] |
O-ring
|
|
| 31. |
191544
|
[2] |
Stud
|
|
| 32. |
804326
|
[2] |
Cap nut
|
|
| 33. |
804395
|
[2] |
Striker plate
|
|
| 34. |
804262
|
[1] |
Plug
|
|
| 35. |
804261
|
[1] |
Gasket
|
|
| 36. |
839307
|
[1] |
Protection against c
|
|
| 37. |
839308
|
[1] |
Anchorage
|
|
| 38. |
839571
|
[1] |
Spring
|
|
| 39. |
806661
|
[1] |
Safety pin
|
|
| 40. |
946713
|
[1] |
Split pin
|
|
| 41. |
806675
|
[1] |
Wear washer
|
|
| 42. |
839610
|
[1] |
Splined sleeve
|
PZ-505250
|
| 42. |
875121
|
[1] |
Splined sleeve
|
PZ 505251-
|
| 43. |
914507
|
[1] |
Snap ring
|
|
| 44. |
839285
|
[1] |
Spacer ring
|
PZ-505250
|
| 45. |
839286
|
[1] |
Guide sleeve
|
PZ 505251-
|
| 46. |
839218
|
[1] |
Gasket
|
|
| 47. |
940172
|
[8] |
Hexagon screw
|
|
| 48. |
832344
|
[1] |
Zinc electrode
|
|
| 49. |
|
|
|
See group 3
|
