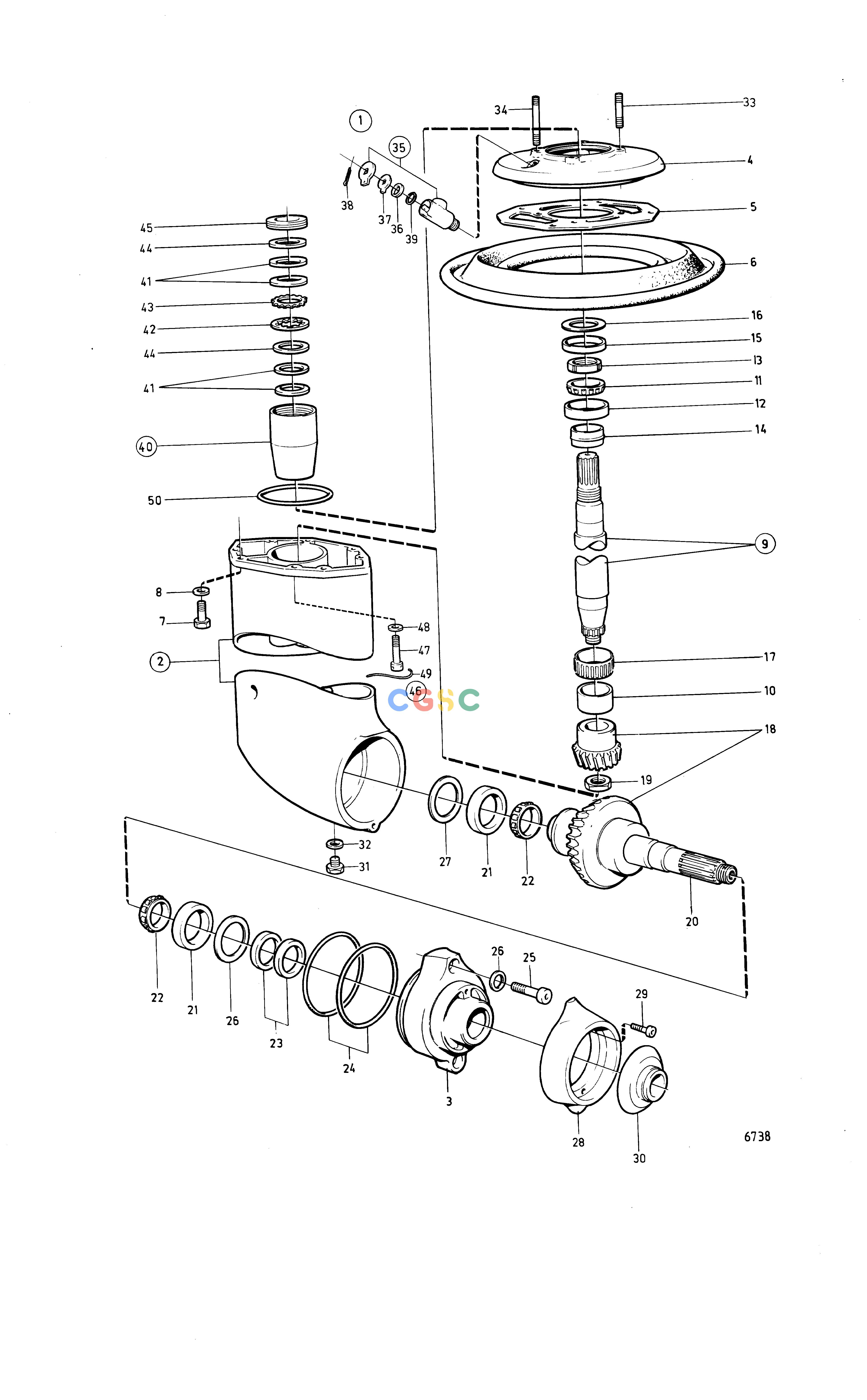

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsLower Gear Unit Sail Boat Drive Unit 120SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852487
|
[1] |
Lower gear
|
Ratio 2,2:1
|
| 2. |
851646
|
[1] |
Housing
|
|
| 3. |
851647
|
[1] |
Bearing housing
|
|
| 4. |
851971
|
[1] |
Extension part
|
|
| 5. |
851996
|
[1] |
Gasket
|
|
| 6. |
21389074
|
[1] |
Rubber bellows
|
|
| 7. |
946543
|
[6] |
Hex. socket screw
|
|
| 8. |
941670
|
[6] |
Washer
|
|
| 9. |
852484
|
[1] |
Countershaft
|
|
| 10. |
|
|
|
|
| 11. |
183752
|
[2] |
Cone
|
|
| 12. |
183750
|
[2] |
Cup
|
|
| 13. |
852485
|
[1] |
Lock nut
|
|
| 14. |
851974
|
[1] |
Pretensioning sleeve
|
|
| 15. |
852162
|
[1] |
Spacer sleeve
|
|
| 16. |
948298
|
[1] |
Shim
|
TH=0,10mm
|
| 16. |
948299
|
[1] |
Shim
|
TH=0.15mm
|
| 16. |
948300
|
[1] |
Shim
|
TH=0.35mm
|
| 16. |
948303
|
[1] |
Shim
|
TH=1.0mm
|
| 17. |
852508
|
[1] |
Needle bearing
|
|
| 18. |
851649
|
[1] |
Gear set
|
|
| 19. |
850981
|
[1] |
Nut
|
|
| 20. |
851652
|
[1] |
Propeller shaft
|
|
| 21. |
181587
|
[2] |
Cup
|
|
| 22. |
181588
|
[2] |
Inner ring
|
|
| 23. |
851979
|
[2] |
Sealing ring
|
|
| 24. |
925256
|
[2] |
O-ring
|
|
| 25. |
946541
|
[2] |
Hex. socket screw
|
|
| 26. |
897871
|
[2] |
Shim
|
|
| 27. |
851980
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 27. |
851981
|
[1] |
Adjusting washer
|
TH=0.15mm
|
| 27. |
851982
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 28. |
851983
|
[1] |
Zinc ring
|
|
| 29. |
949823
|
[2] |
Cross recessed screw
|
|
| 30. |
851984
|
[1] |
Guard plate
|
|
| 31. |
804262
|
[1] |
Plug
|
|
| 32. |
804261
|
[1] |
Gasket
|
|
| 33. |
924066
|
[2] |
Stud
|
L=45mm
|
| 34. |
952987
|
[2] |
Stud
|
L=70mm
|
| 35. |
851777
|
[1] |
Faucet
|
|
| 36. |
|
|
|
|
| 37. |
851783
|
[1] |
Lock washer
|
|
| 38. |
949791
|
[1] |
Split pin
|
|
| 39. |
955989
|
[2] |
O-ring
|
|
| 40. |
|
|
|
Versione precedente of albero is sostv. da saft 852527 + spline manicotto 852534., Early type
|
| 40. |
852534
|
[1] |
Splined sleeve
|
Included in drive unit 120S.
|
| 41. |
|
|
|
|
| 42. |
|
|
|
|
| 43. |
|
|
|
|
| 44. |
|
|
|
|
| 45. |
|
|
|
|
| 46. |
852675
|
[1] |
Spare parts kit
|
Included in drive unit 120S.
|
| 47. |
852670
|
[4] |
Screw
|
|
| 48. |
941670
|
[4] |
Washer
|
|
| 49. |
852669
|
[1] |
Locking wire
|
|
| 50. |
925256
|
[1] |
O-ring
|
Included in drive unit 120S.
|
